Illumination, Taillight

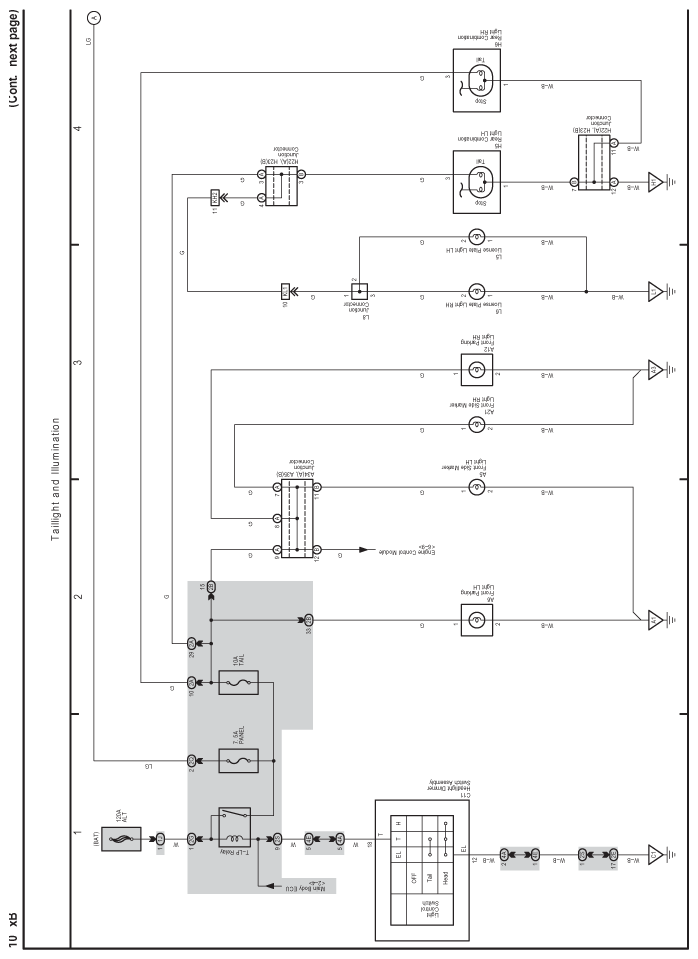

Fig 1: Taillight And Illumination Electrical Wiring Diagram (1 Of 3)
G07569429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

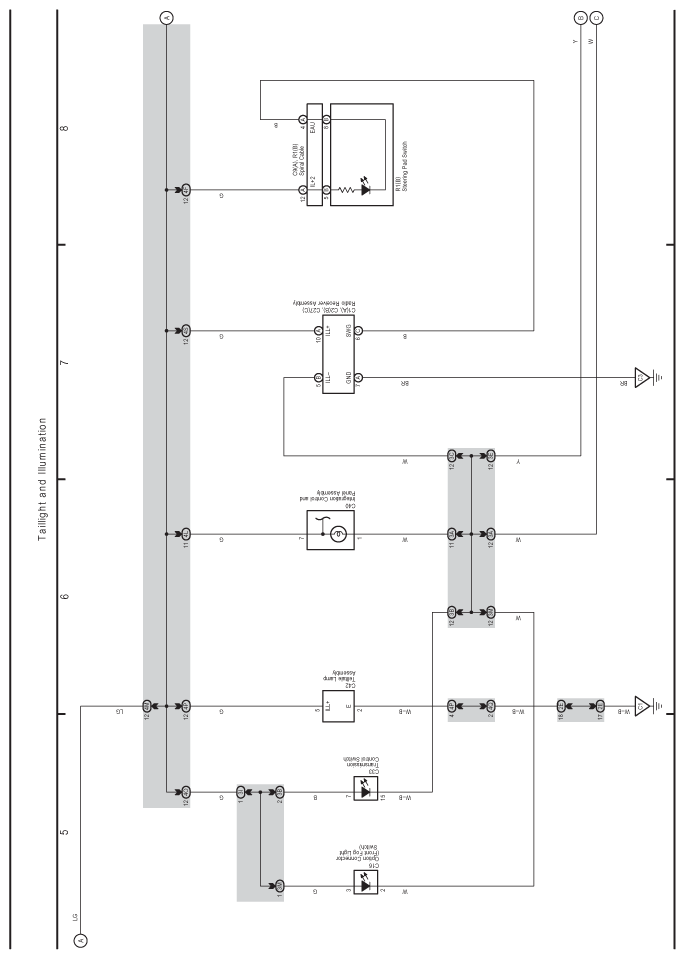

Fig 2: Taillight And Illumination Electrical Wiring Diagram (2 Of 3)
G07569430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

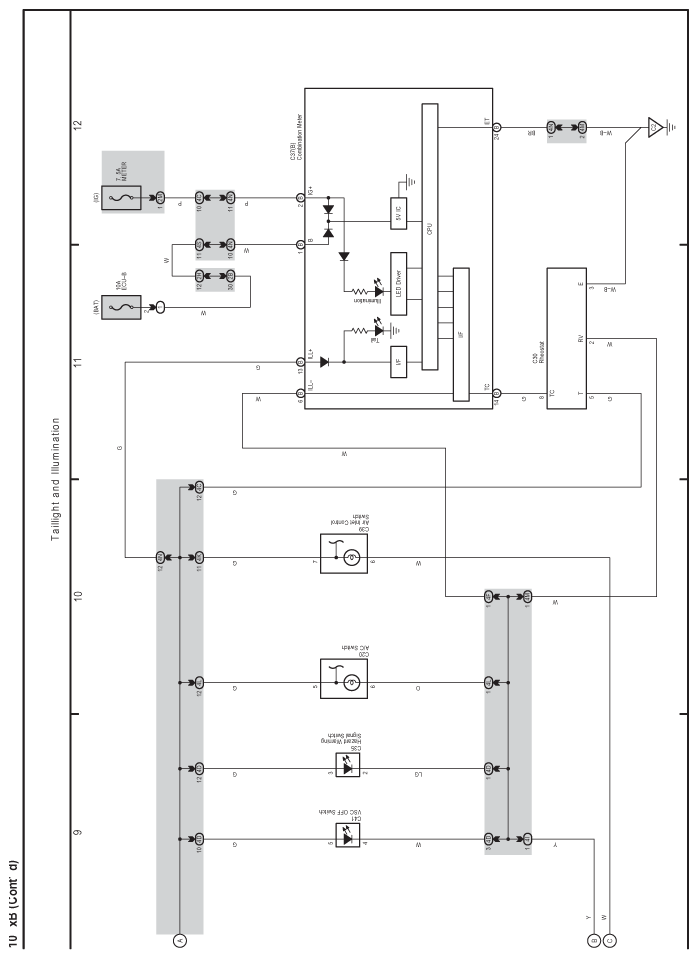

Fig 3: Taillight And Illumination Electrical Wiring Diagram (3 Of 3)
G07569431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
