Home >> Scion >> 2010 >> xB Standard >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Air Conditioning

Air Conditioning

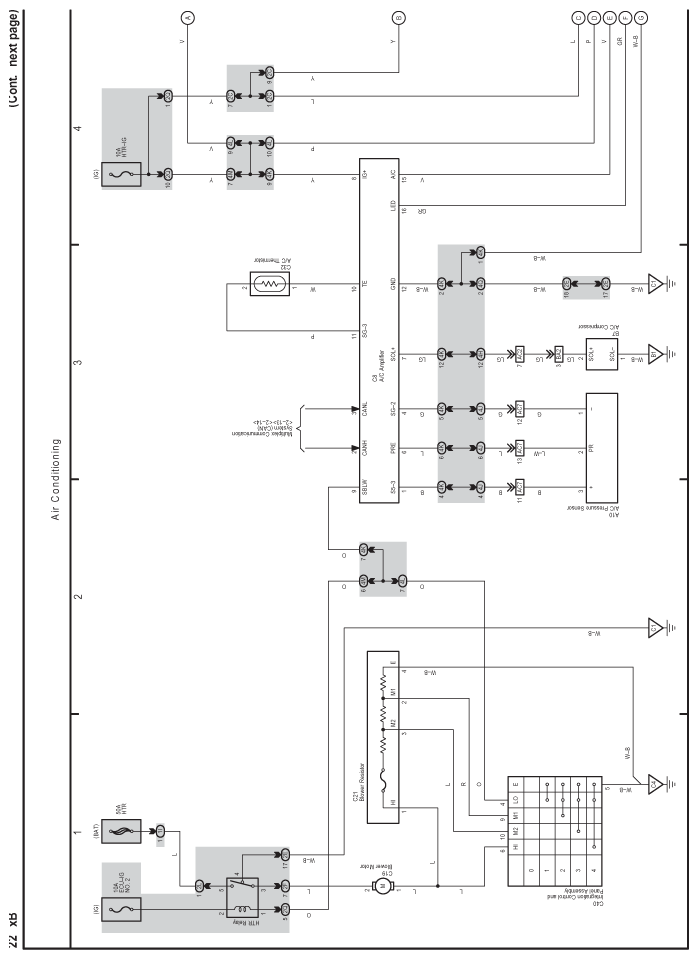

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 2)
G07569446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

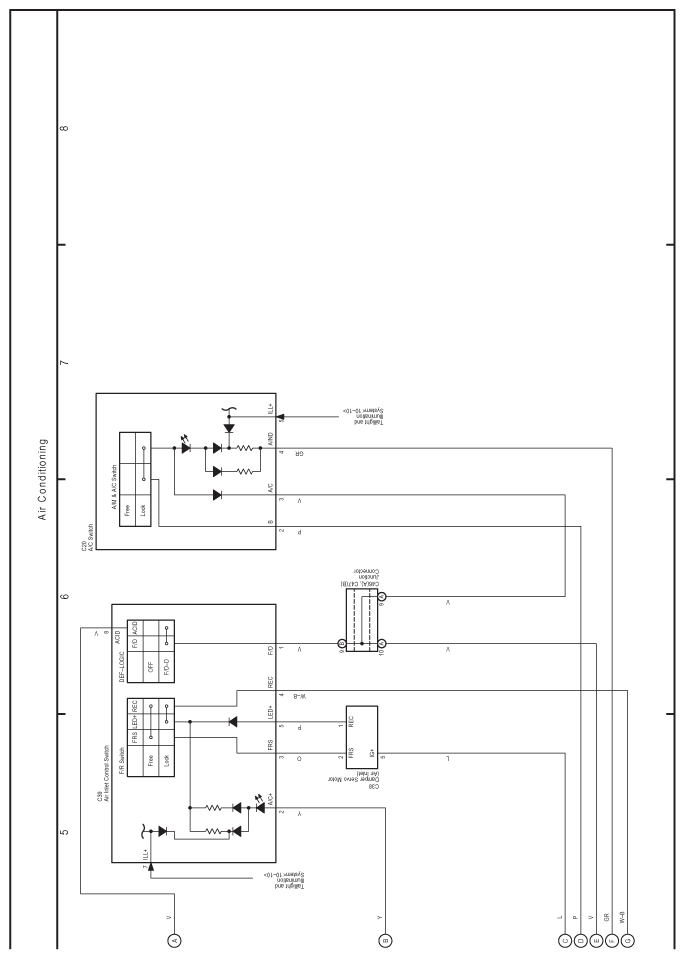

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 2)
G07569447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
