Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

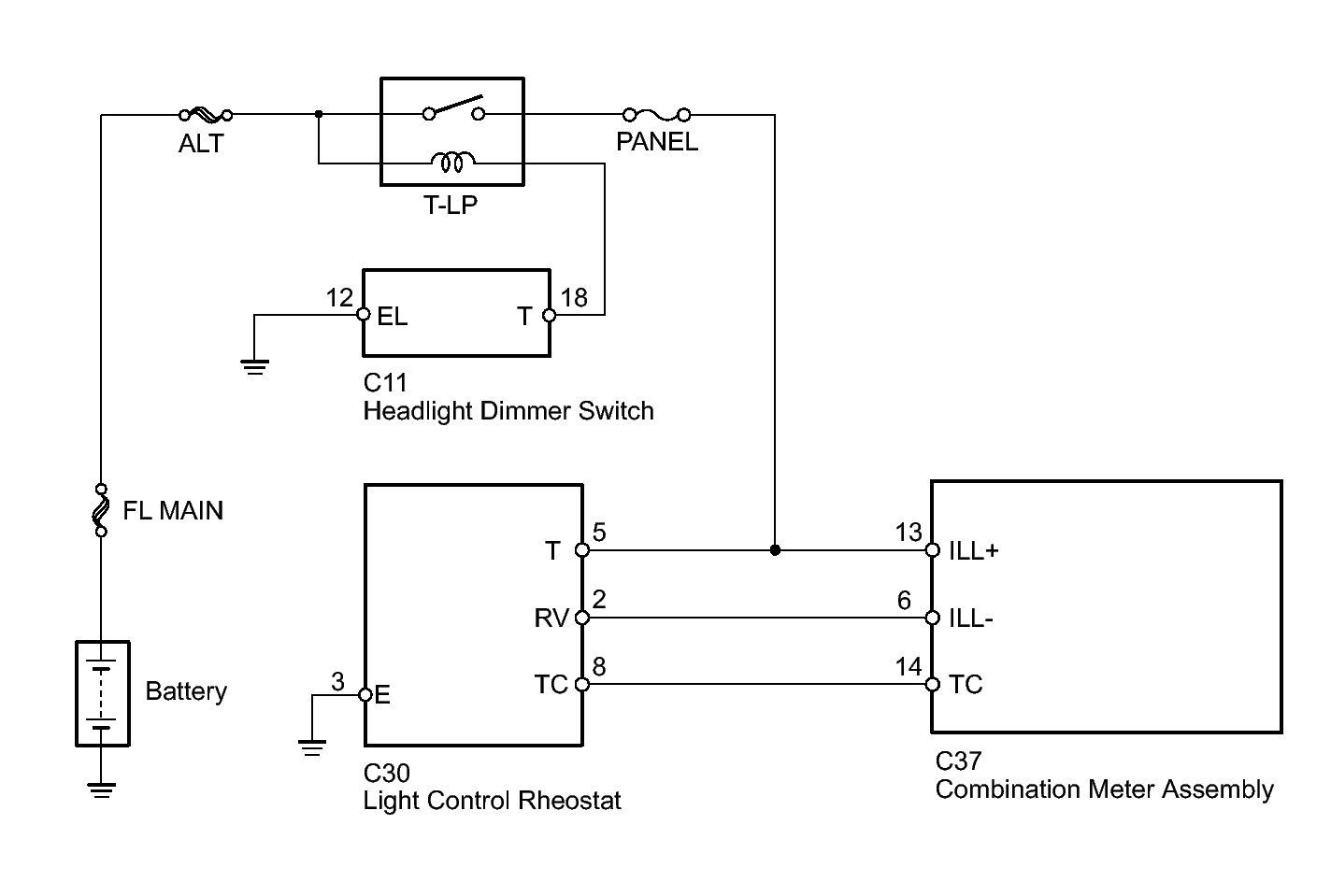

Fig 1: View Of Light Control Rheostat Does Not Change Light Brightness -- Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
