Entire Combination Meter does not Operate: Wiring Diagram

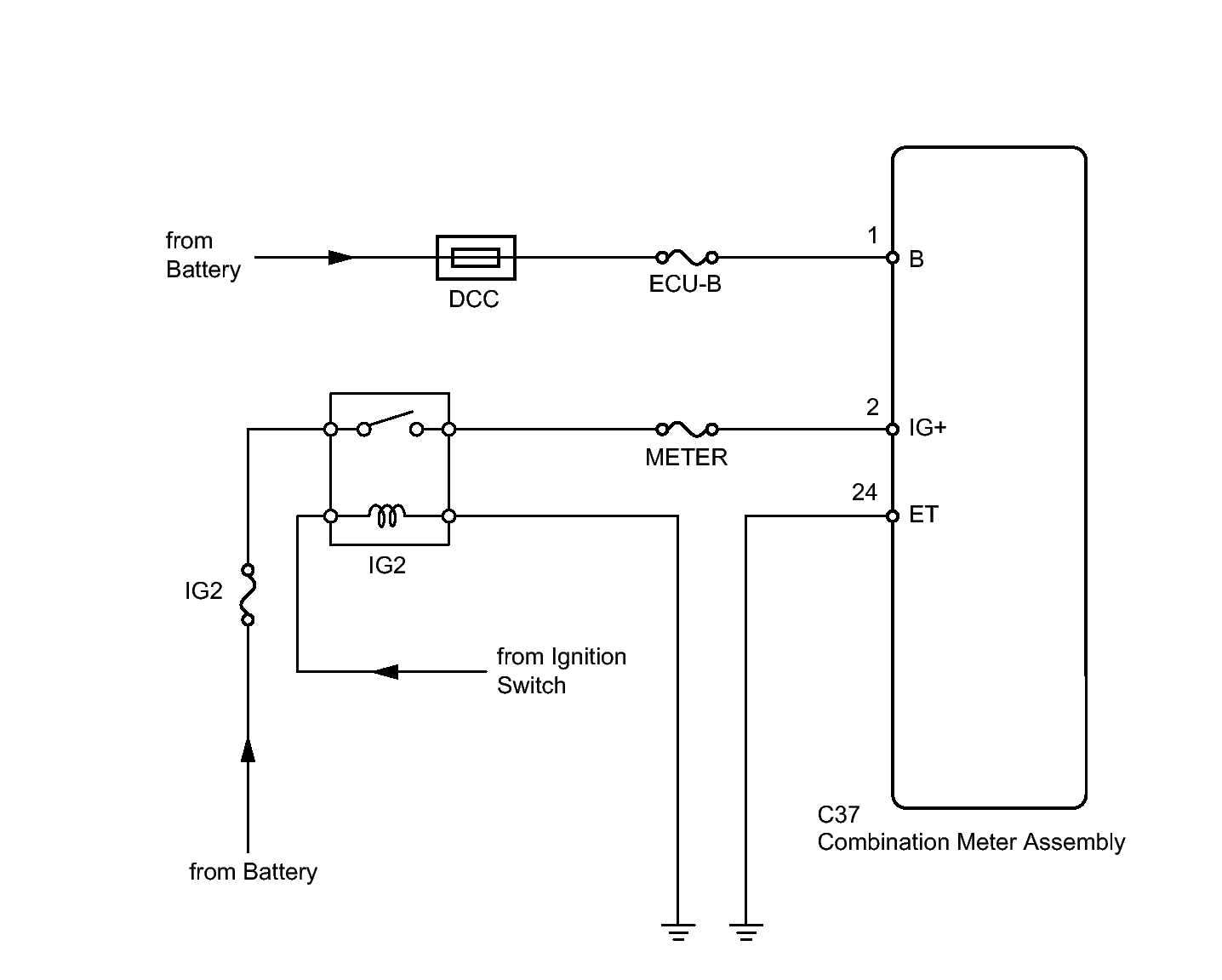

Fig 1: Identifying Entire Combination Meter Does Not Operate -- Wiring Diagram

GTY157559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
