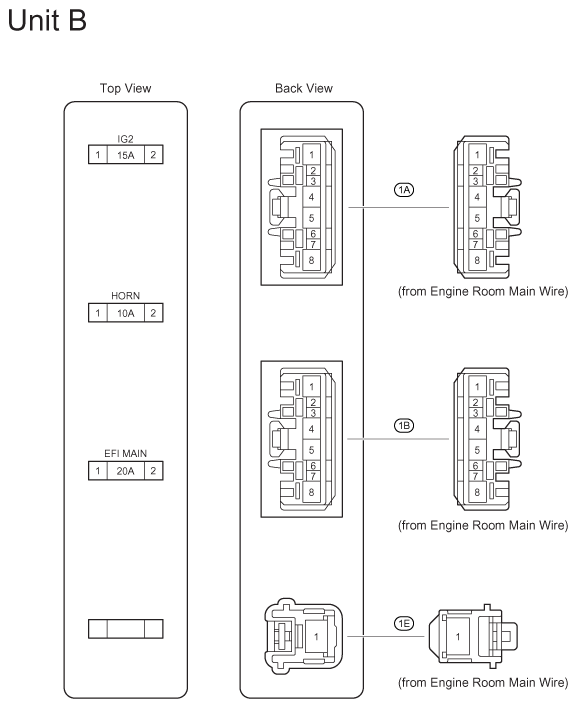

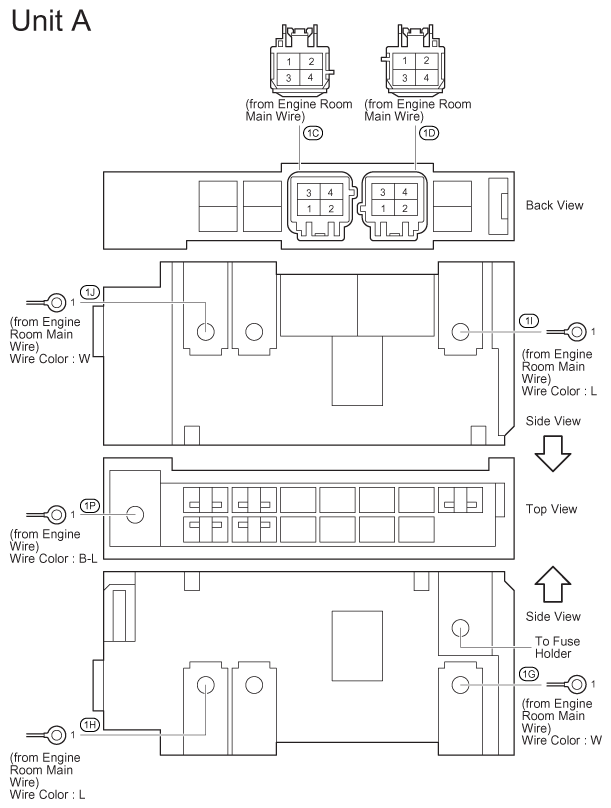

Engine Room Relay Block And Engine Room Junction Block

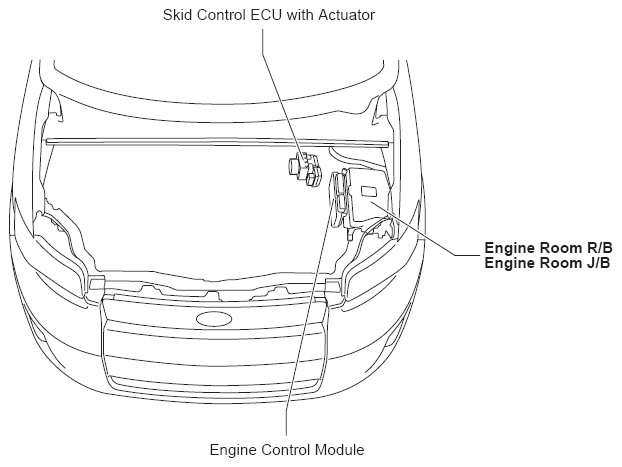

Engine Compartment Left (See Figure)

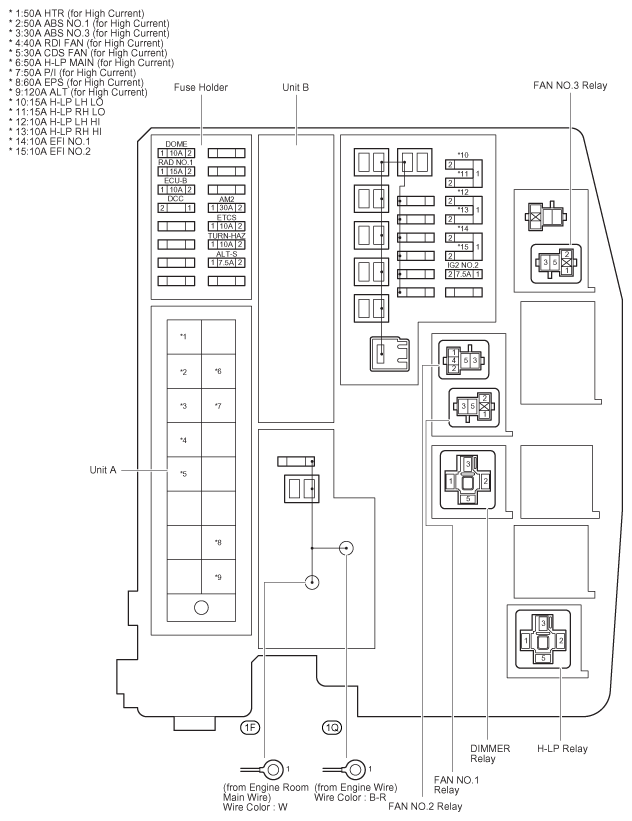

ENGINE ROOM R/B AND J/B (ENGINE COMPARTMENT LEFT) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Fan No.3 Relay |
| H-LP Relay |
| Dimmer Relay |
| Fan No.1 Relay |
| Fan No.2 Relay |
ENGINE ROOM R/B AND J/B (ENGINE COMPARTMENT LEFT) FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | IG2 NO.2 | Engine Control |
| Ignition | ||
| 10A | DOME | Interior Light |
| Wireless Door Lock Control | ||
| 10A | ECU-B | ABS, TRAC and VSC |
| Back Door Opener | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| EPS | ||
| Interior Light | ||
| Key Reminder | ||
| Light Reminder | ||
| Power Window | ||
| Seat Belt Warning | ||
| SRS | ||
| Taillight and Illumination | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 10A | EFI NO.1 | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 10A | EFI NO.2 | Engine Control |
| 10A | ETCS | Electronically Controlled Transmission and A/T Indicator |
| Engine Control | ||
| 10A | H-LP LH HI | Headlight |
| 10A | H-LP RH HI | Headlight |
| 10A | HORN | Horn |
| Wireless Door Lock Control | ||
| 10A | TURN-HAZ | Turn Signal and Hazard Warning Light |
| 15A | H-LP LH LO | Headlight |
| 15A | H-LP RH LO | Headlight |
| 15A | IG2 | Engine Control |
| Ignition | ||
| 15A | RAD NO.1 | Audio System |
| 20A | EFI MAIN | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 30A | ABS NO.3 | ABS, TRAC and VSC |
| 30A | AM2 | Engine Control |
| Starting | ||
| 30A | CDS FAN | Cooling Fan |
| 40A | RDI FAN | Cooling Fan |
| 50A | ABS NO.1 | ABS, TRAC and VSC |
| 50A | H-LP MAIN | Headlight |
| Wireless Door Lock Control | ||
| 50A | HTR | Air Conditioning |
| 60A | EPS | EPS |
| 120A | ALT | Charging |
| Light Reminder | ||
| Power Window | ||
| Taillight and Illumination | ||
| Wireless Door Lock Control | ||
Engine Compartment Left (See Figure)
