Scion
>>
2010
>>
xB Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers
>>
OEM Junction Block, Ecu & Fuse/Relay Locations
>>
Junction Block Fuse, Relay & Circuit Identification
>>
Junction Block No. 3
Junction Block No. 3
Instrument Panel Brace LH
(See
Figure
)

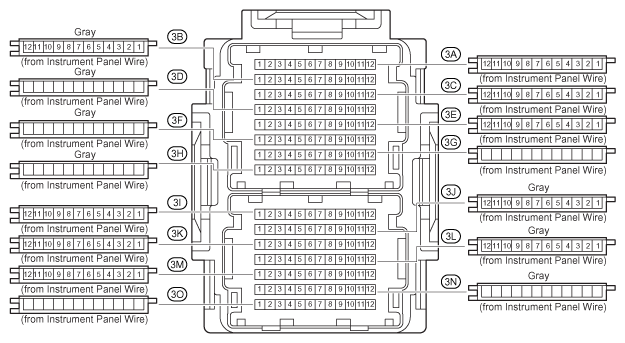

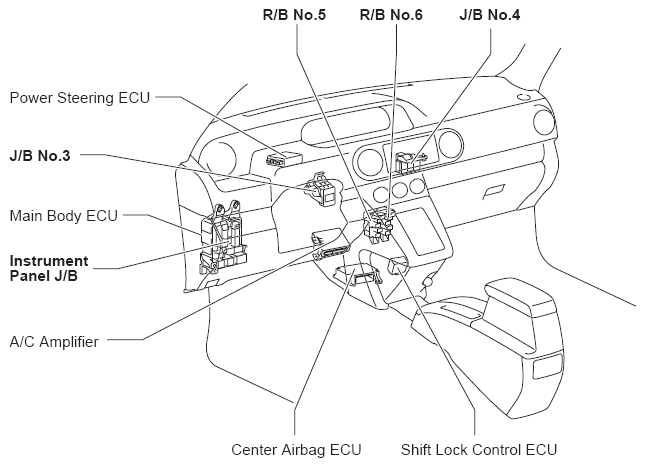

Fig 1: J/B No. 3 - Instrument Panel Brace LH Connector Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
