Junction Block No. 3 Inner Circuit

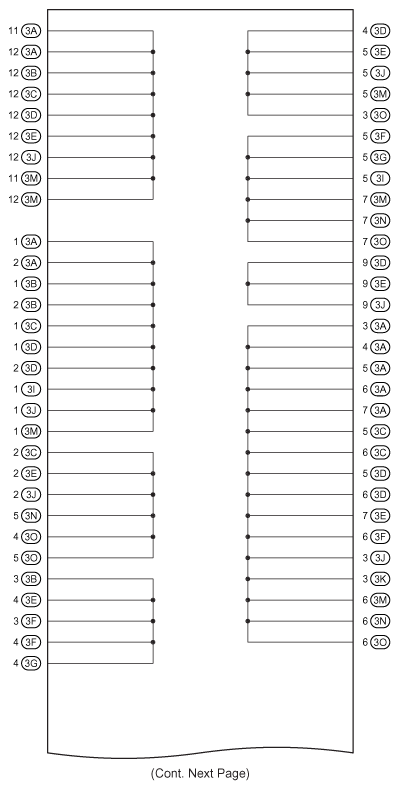

Fig 1: J/B No. 3 Inner Circuit Diagram (1 Of 3)
G07569263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

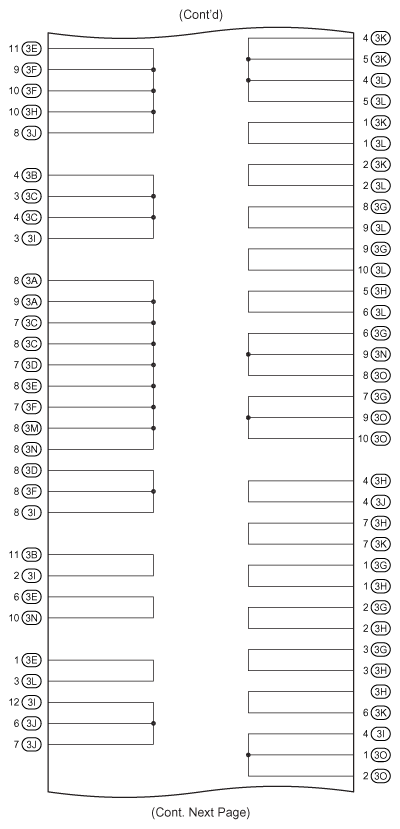

Fig 2: J/B No. 3 Inner Circuit Diagram (2 Of 3)
G07569264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

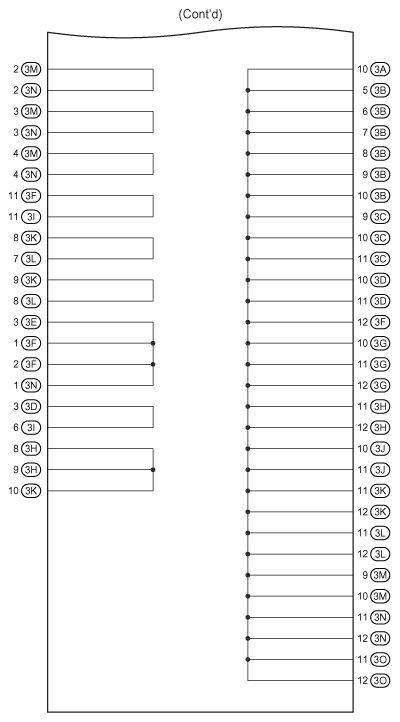

Fig 3: J/B No. 3 Inner Circuit Diagram (3 Of 3)
G07569265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
