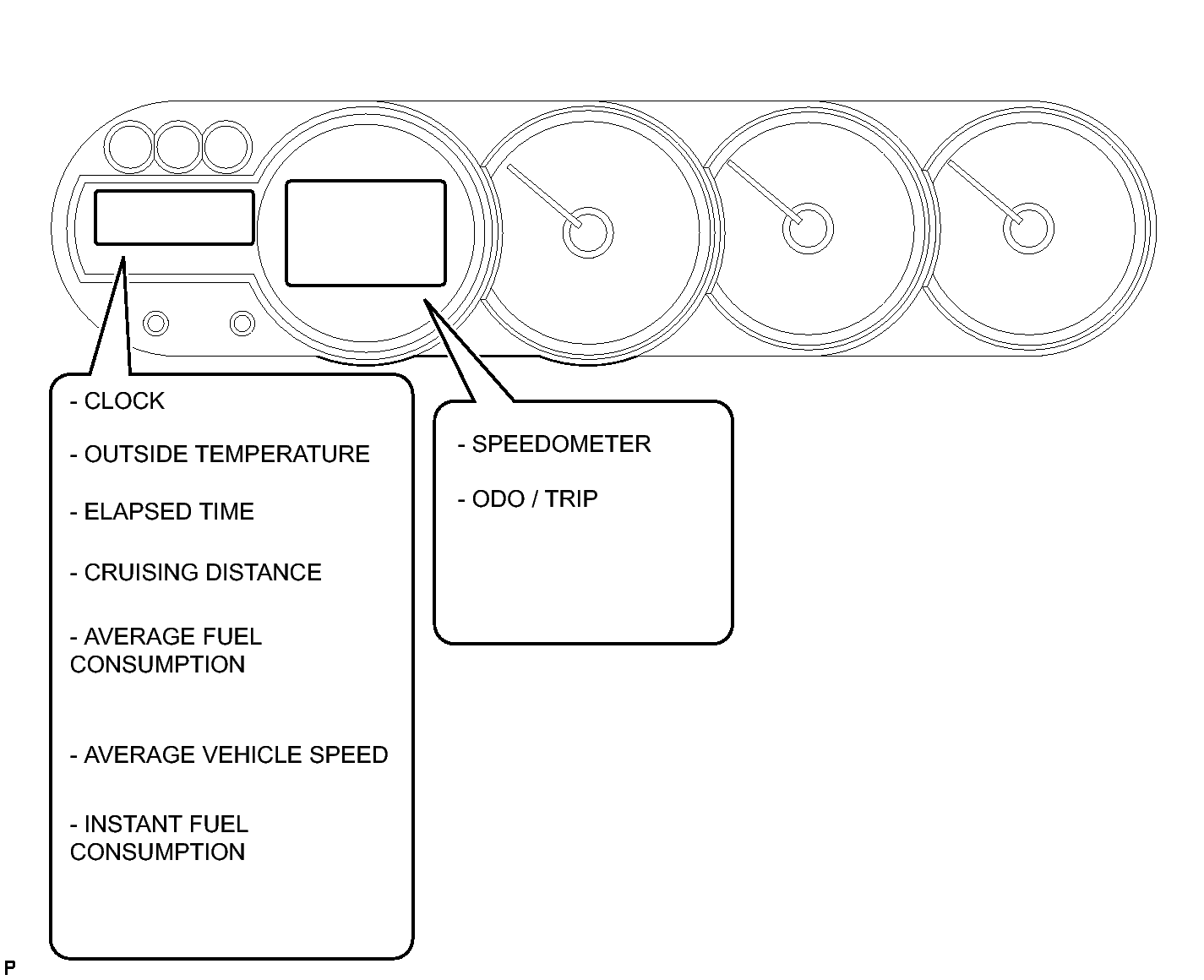

| TURN SIGNAL |
Receives turn signal from flasher relay (Direct line) |
| HAZARD SIGNAL |
Receives hazard warning signal from flasher relay (Direct line) |
| BEAM |
Receives high beam signal from DIMMER relay (Direct line) |
| CHARGE |
Receives malfunction charge signal from ECM (CAN line and direct line) |
| MIL |
Receives malfunction check signal from ECM (Direct line) |
| DOOR |
Open door indicator illuminates when receiving signal from main body ECU (CAN line) |
| DRIVER'S SEAT BELT |
Receives driver seat belt signal (unfastened) from center airbag sensor (CAN line) |
| BRAKE |
- Receives parking brake switch signal from main body ECU (CAN line)
- Receives brake fluid level warning signal from brake fluid level warning switch (Direct line)
- Receives malfunction signal from ABS and traction actuator (skid control ECU) (CAN line)
|
| CRUISE |
Receives malfunction signal from ECM (CAN line) |
| SRS |
Receives malfunction signal from center airbag sensor (CAN line) |
| SLIP |
- Receives signal from ABS and traction actuator (skid control ECU) (CAN line)
- (Flashes when downhill assist control and hill-start assist control operate)
|
| ABS |
Receives malfunction signal from ABS and traction actuator (skid control ECU) (CAN line) |
| VSC OFF |
Receives VSC control off signal or VSC system fail-safe control signal from ABS and traction actuator (skid control ECU) (CAN line) |
| TAIL |
Receives headlight dimmer switch condition signal from T-LP relay (Direct line) |
| EPS |
Receives malfunction signal from power steering ECU (CAN line) |
| TIRE PRESSURE |
Receives malfunction signal from tire pressure warning ECU (Direct line) |
| OIL PRESSURE |
Receives warning signal from engine oil pressure switch (Direct line) |
| MAINT REQD |
- Illuminates when oil is changed and vehicle is driven about 5,000 miles (8,000 km)
- Blinks when oil is changed and vehicle is driven about 4,500 miles (7,242 km) to 5,000 miles (8,000 km)
|
| FUEL |
Receives remaining fuel signal from fuel sender gauge (Direct line) |
