tC Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Tire Pressure Warning System
Tire Pressure Warning System

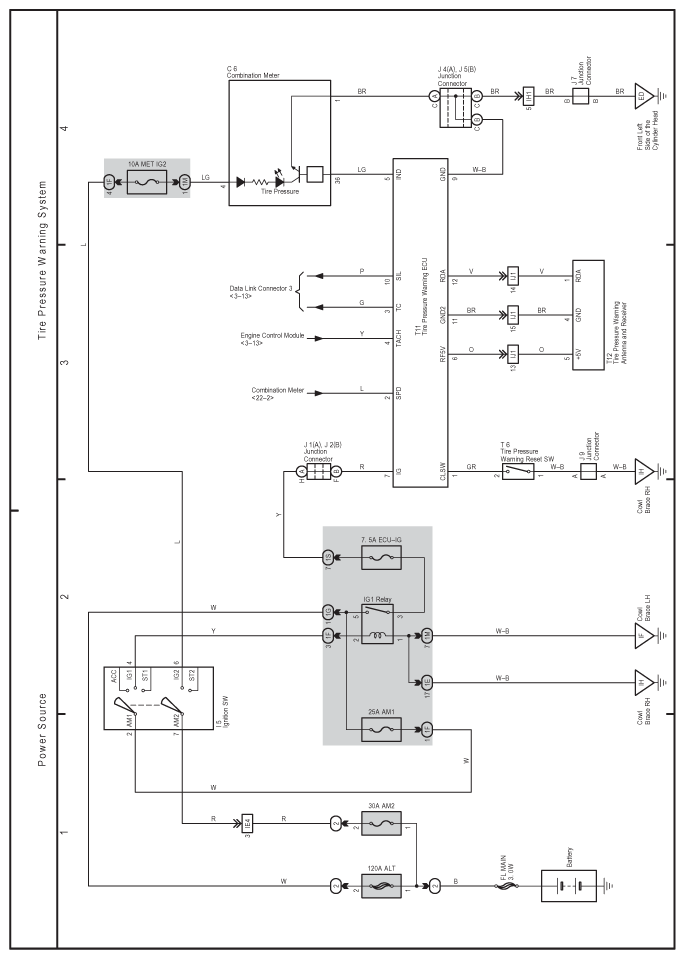

Fig 1: Tire Pressure Warning System Electrical Wiring Diagram
