OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Radiator Fan and Condenser Fan
Radiator Fan and Condenser Fan

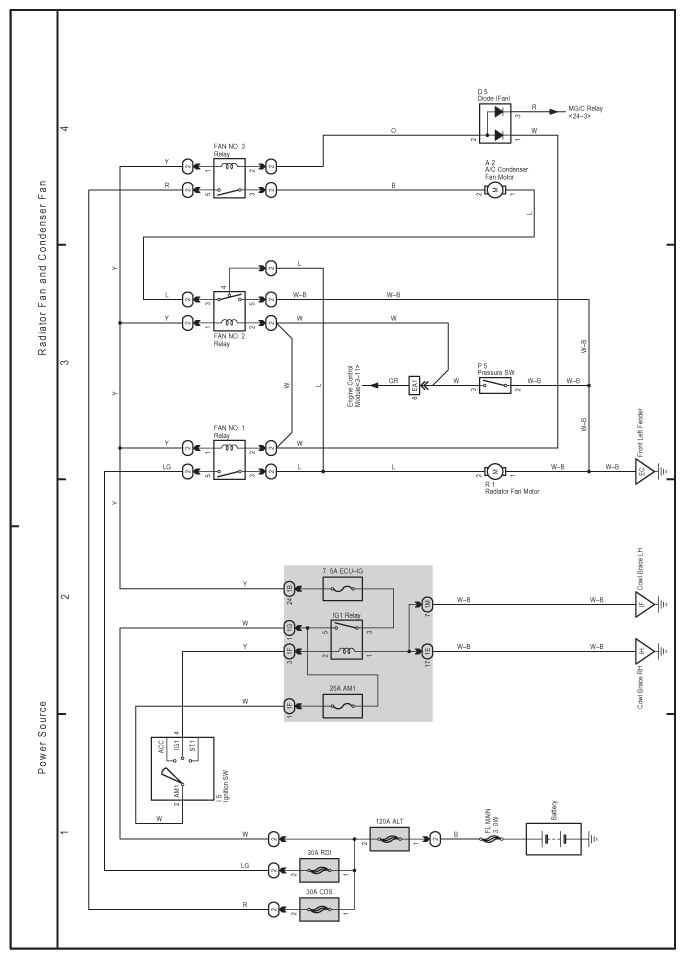

Fig 1: Radiator And Condenser Fan Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
