Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Key Reminder, Light Reminder, Seat Belt Warning
Key Reminder, Light Reminder, Seat Belt Warning

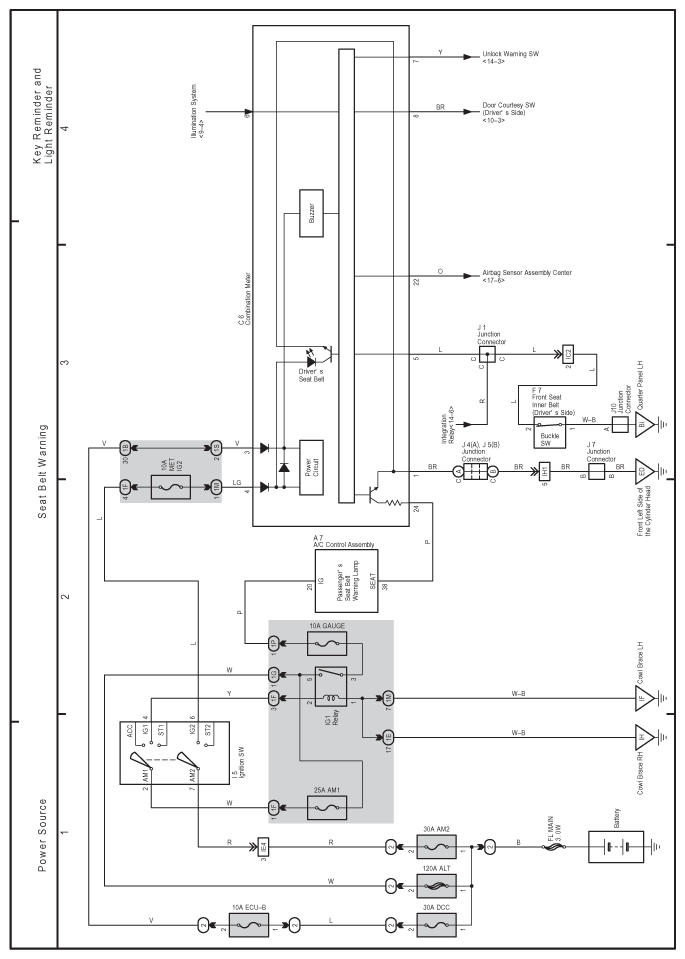

Fig 1: Seat Belt Warning Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
