Home >> Scion >> 2010 >> tC Standard >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Ignition, Power Source, Starting

Ignition, Power Source, Starting

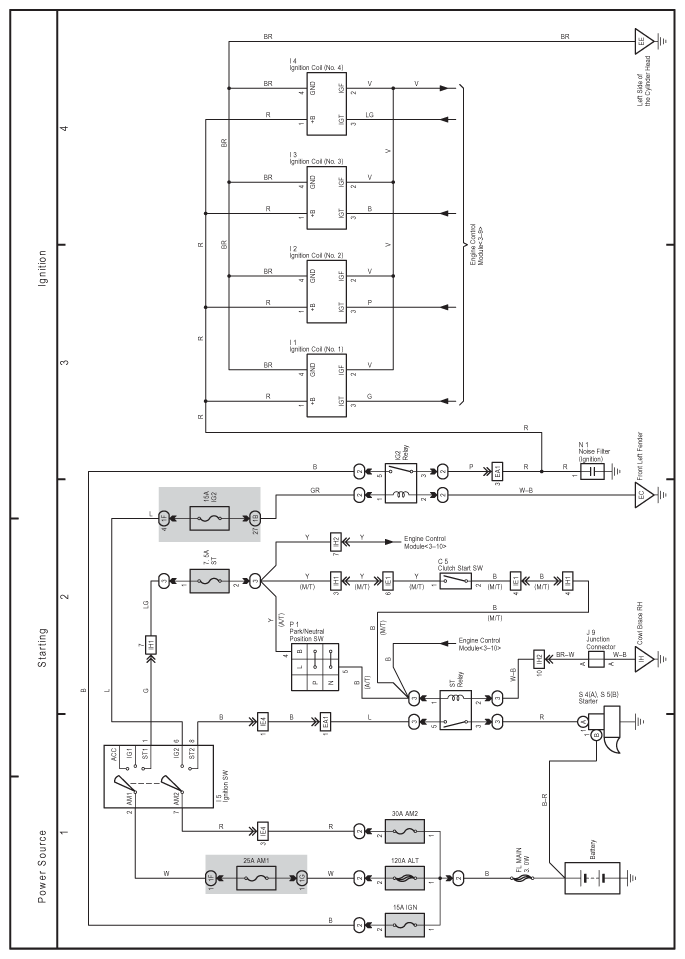

Fig 1: Starting Electrical Wiring Diagram

G07585991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
