Home >> Scion >> 2010 >> tC Standard >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Headlight, Option Connector (Front Fog Light)

Headlight, Option Connector (Front Fog Light)

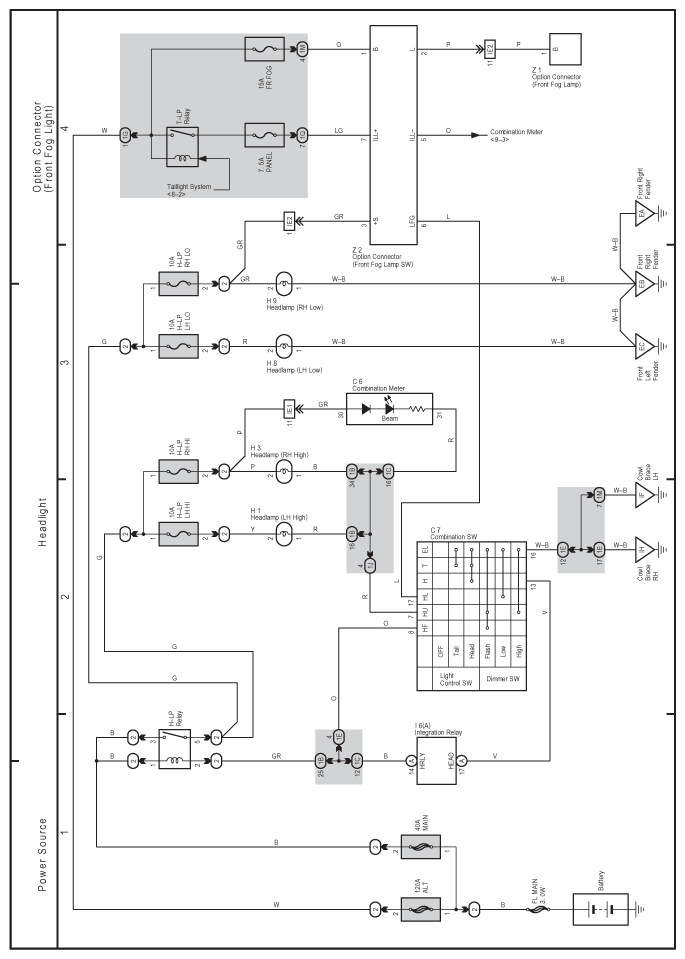

Fig 1: Headlight Electrical Wiring Diagram

G07586002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
