Cruise Control

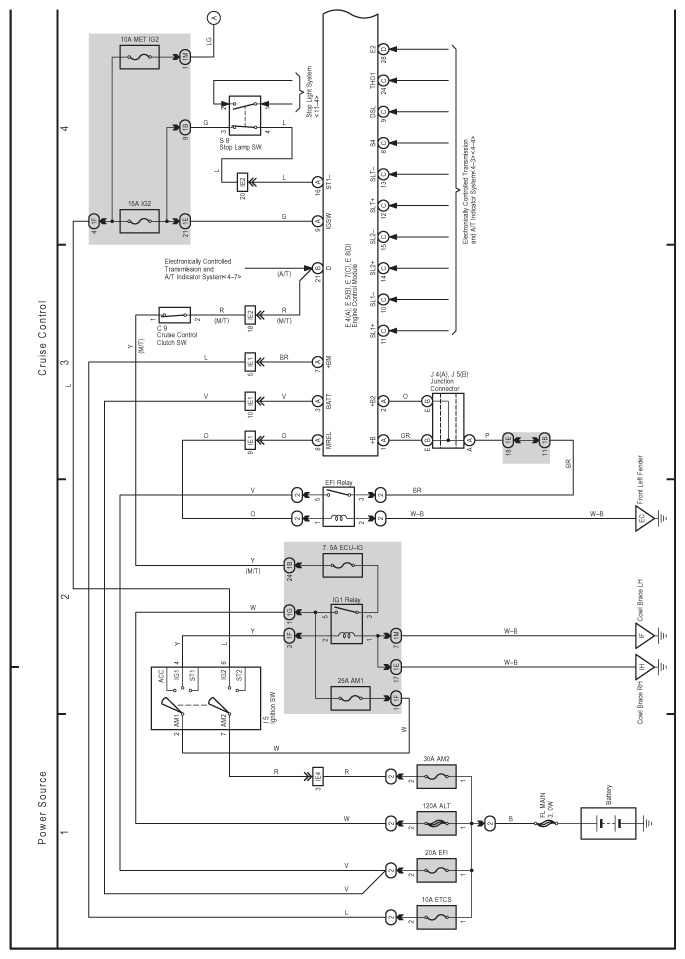

Fig 1: Cruise Control Electrical Wiring Diagram (1 Of 2)
G07586000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

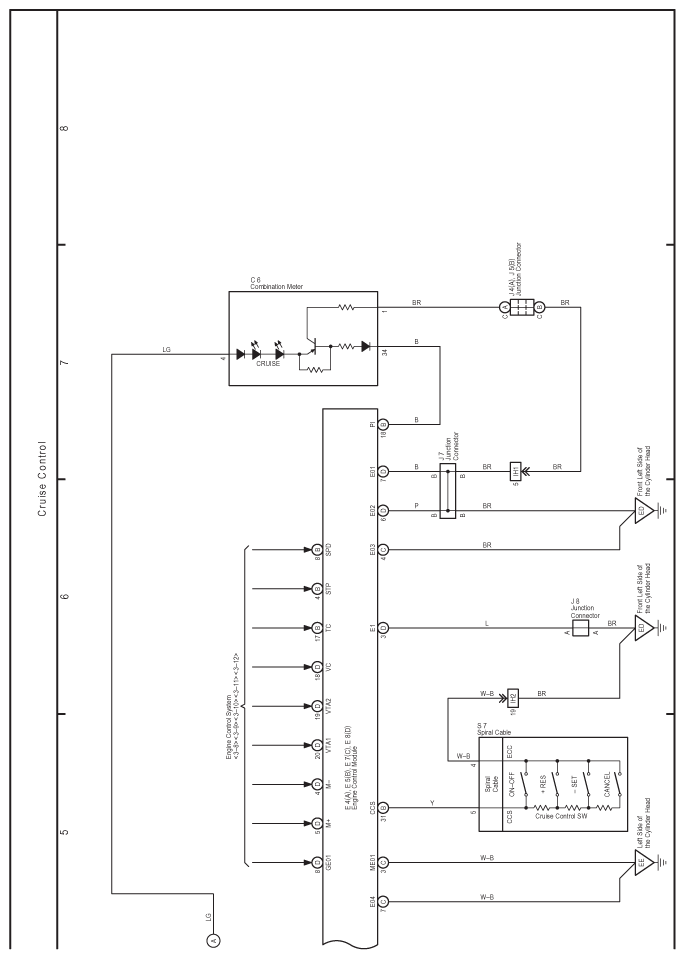

Fig 2: Cruise Control Electrical Wiring Diagram (2 Of 2)
G07586001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
