OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>

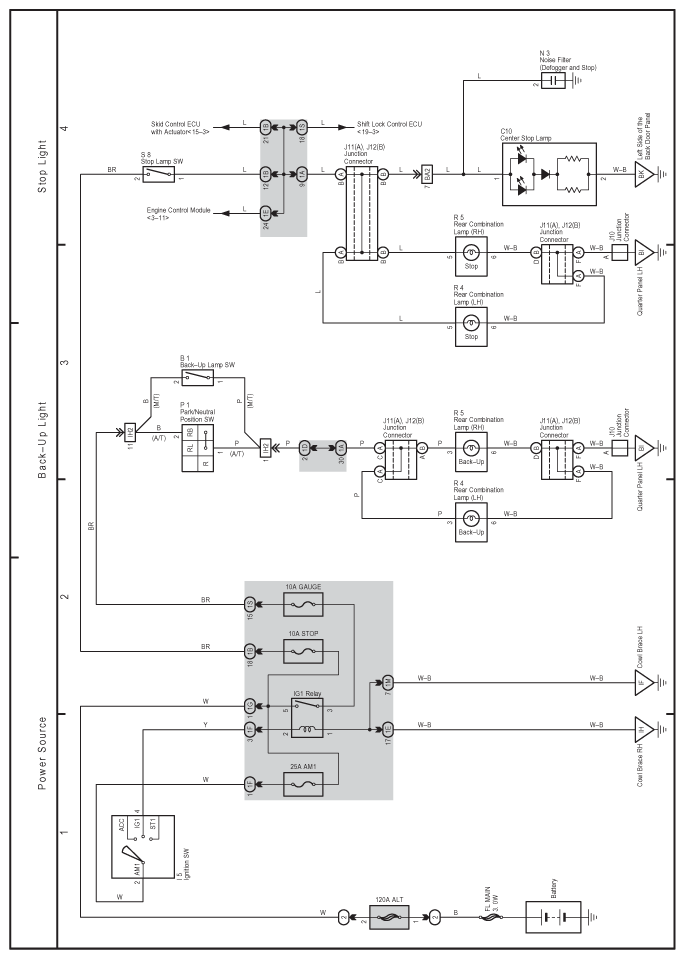

Back-Up Light, Stop Light
Back-Up Light, Stop Light
Fig 1: Front Wiper And Washer Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
