Back Door Opener, Door Lock Control, Option Connector (TVIP), Wireless Door Lock Control

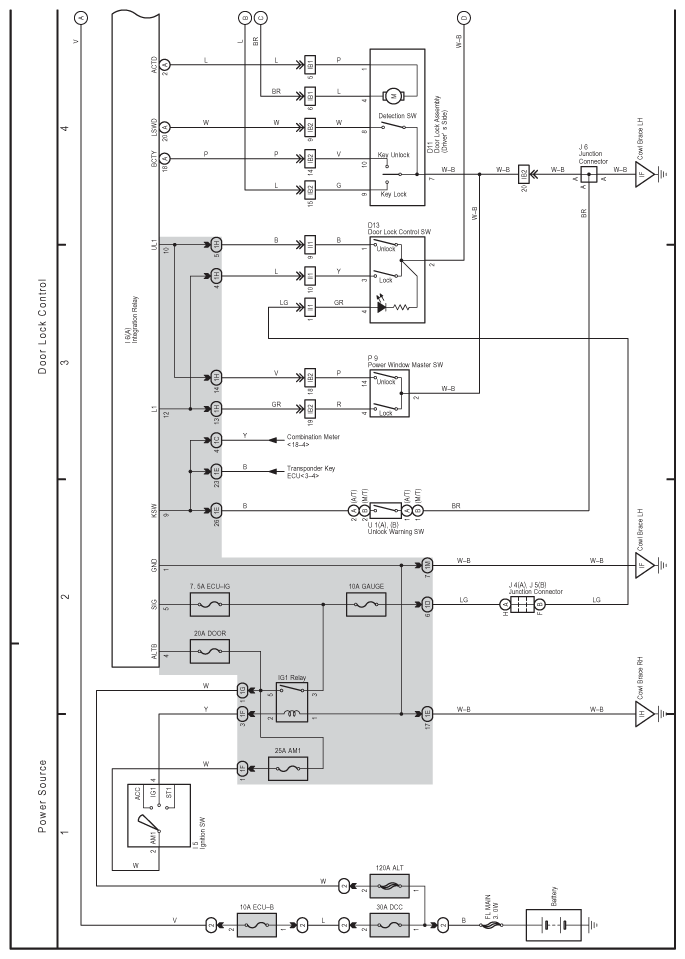

Fig 1: Door Lock Control Electrical Wiring Diagram (2 Of 2)
G07586010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

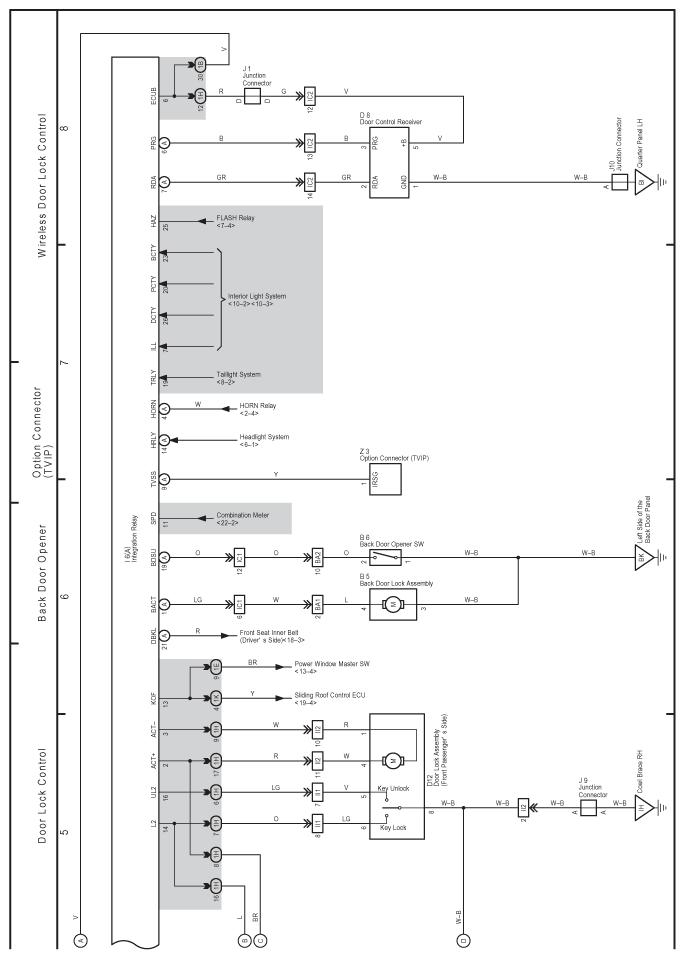

Fig 2: ABS Electrical Wiring Diagram
G07615869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
