Audio System, Power Outlet

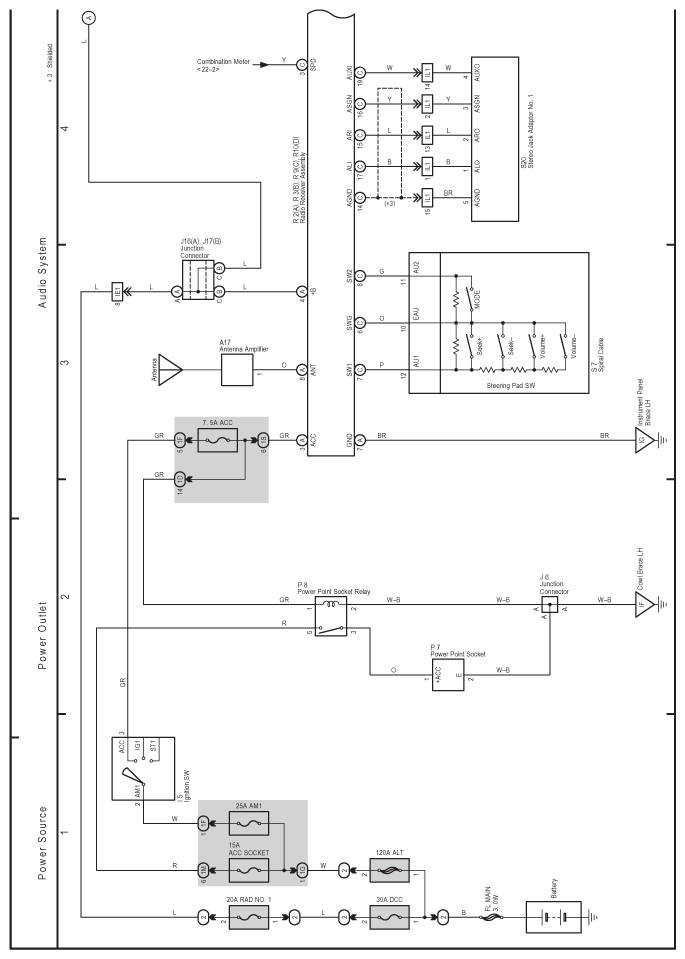

Fig 1: Power Outlet Electrical Wiring Diagram
G07615877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

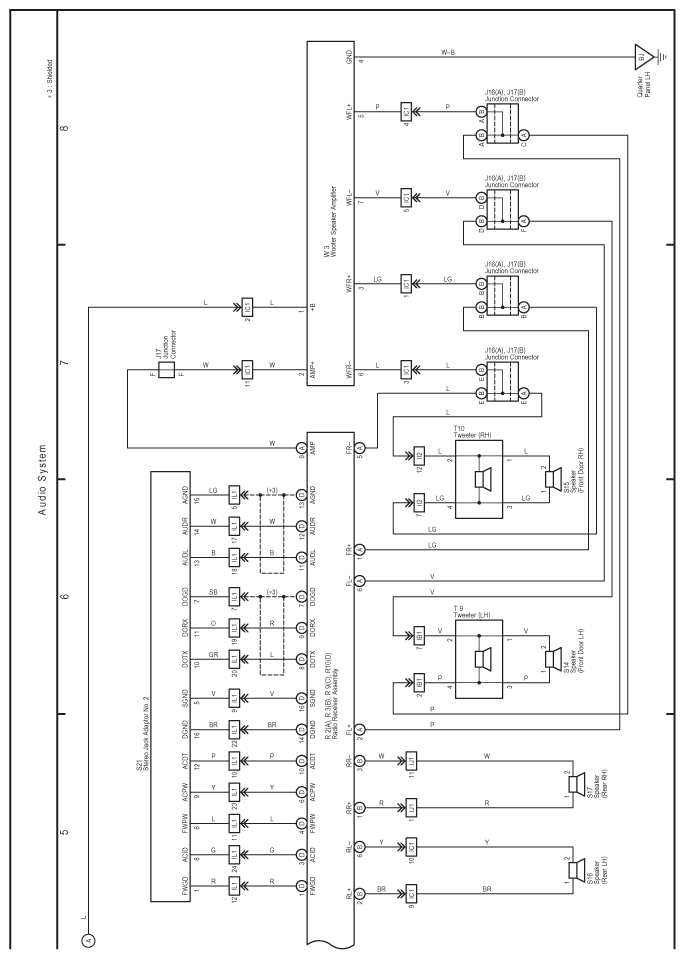

Fig 2: Audio System Electrical Wiring Diagram
G07615878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
