Parts Location: Illustration

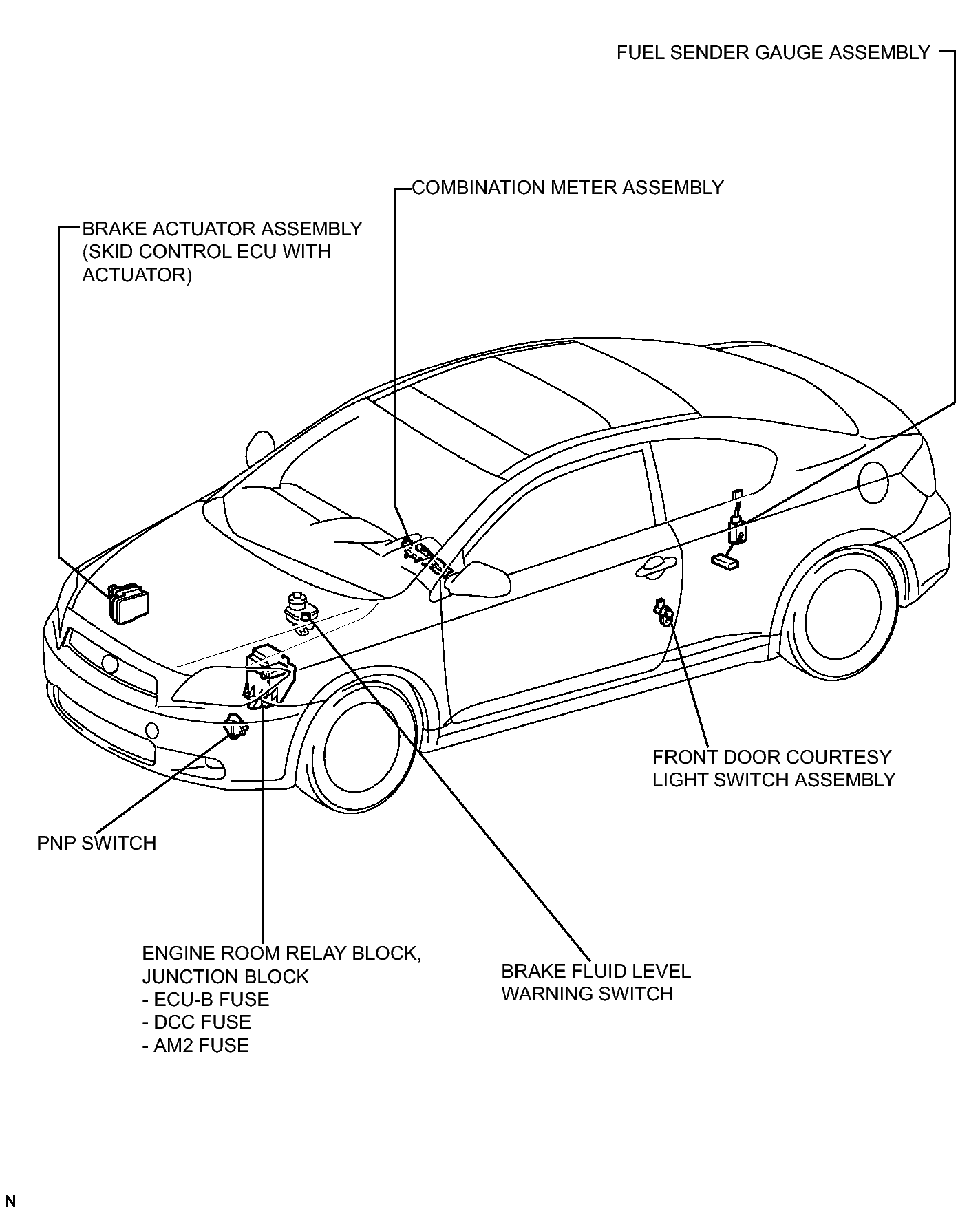

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 3)
GTY157596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

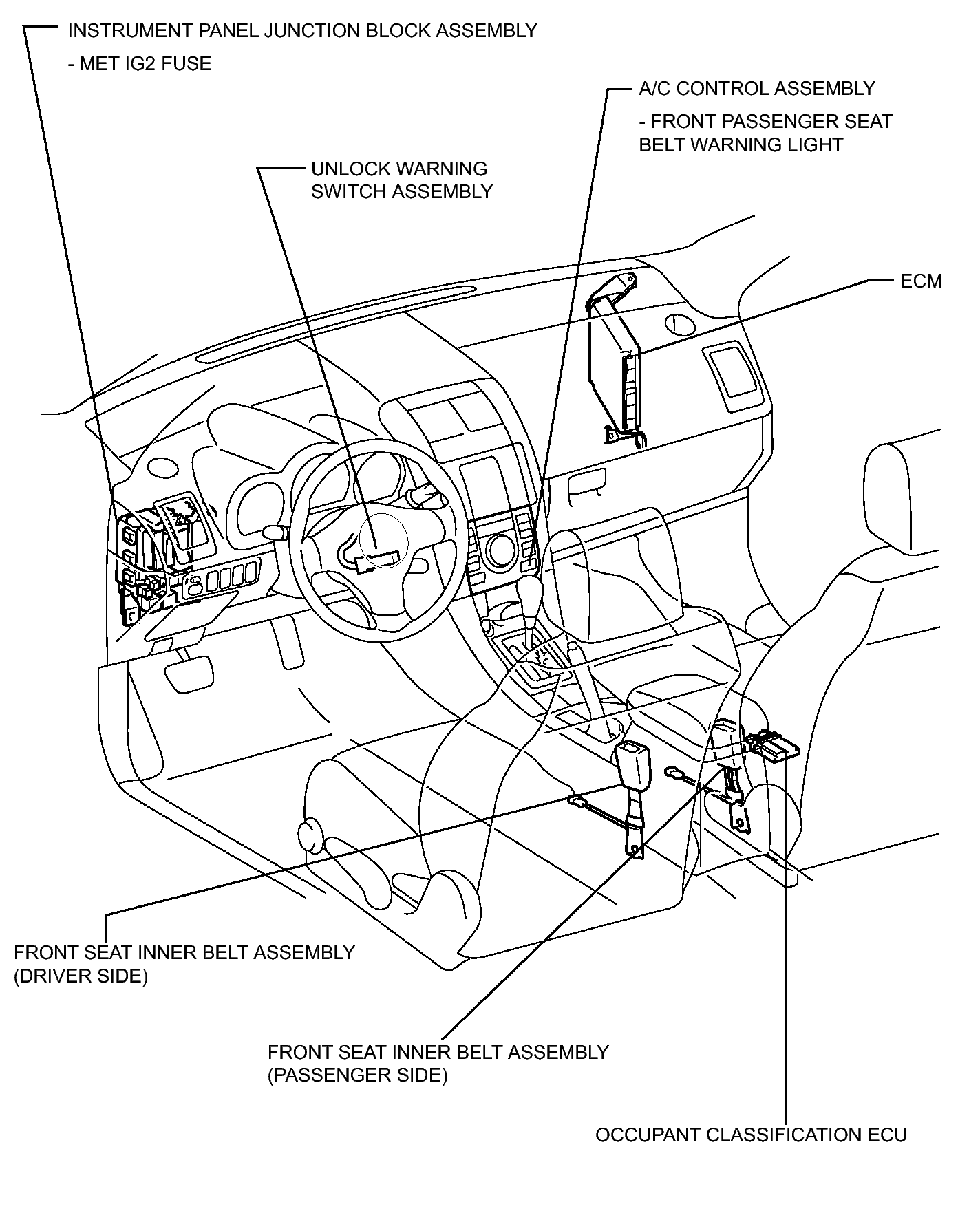

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 3)
GTY157499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

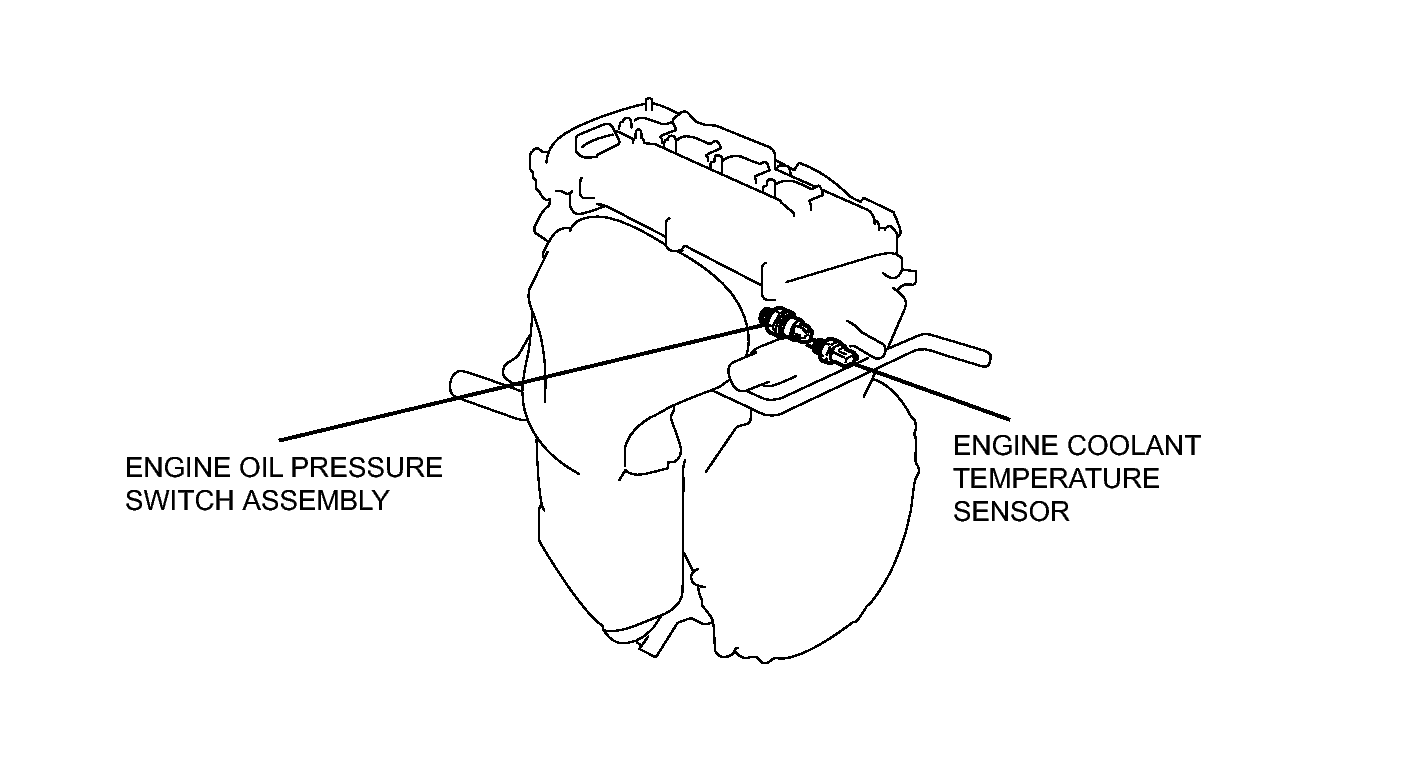

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 3)
GTY157603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
