Fuel Gauge Malfunction: Procedure

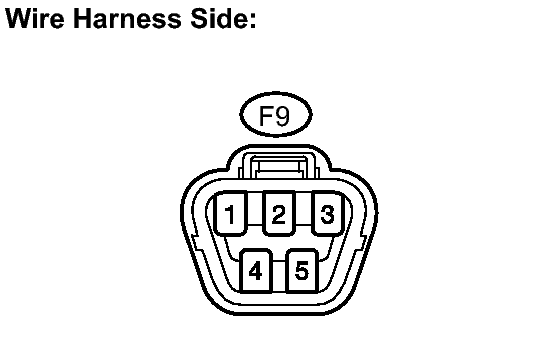

Fig 1: Identifying F9 Fuel Sender Gauge Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the F9 gauge connector.
2. Check the meter indicator condition.

   OK

   Wire Connection	Condition	Specified Condition
   2 - 3	Short circuit (Ignition switch ON)	Fuel gauge indicator "F" or more (combination meter)

3. Measure the voltage of the wire harness side connector.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   2 - Body ground	Ignition switch ON	11 to 14 V

NG → See step   3

OK: Go to next step

1. Remove the fuel sender gauge assembly.

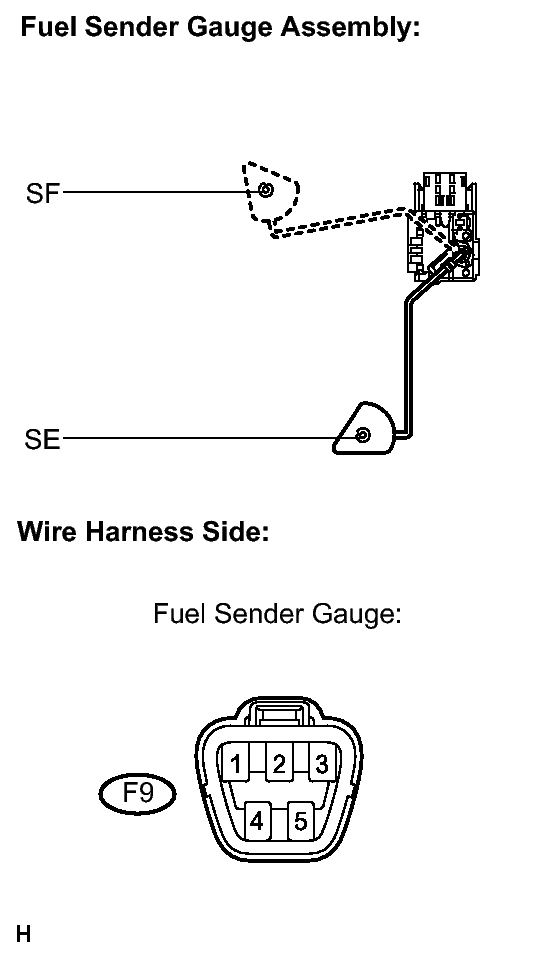

   Fig 2: Identifying Fuel Sender Gauge Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the float moves smoothly between F and E.
3. Measure the resistance between terminals 2 and 3 of the gauge.

   Standard resistance

   Float Level	Specified Condition
   SF	3.0 to 5.0 Ω
   Between E and F	3.0 to 111 Ω
   SE	109 to 111 Ω

NG → REPLACE FUEL SENDER GAUGE ASSEMBLY

OK → REPLACE COMBINATION METER ASSEMBLY

1. Disconnect the C6 meter connector.

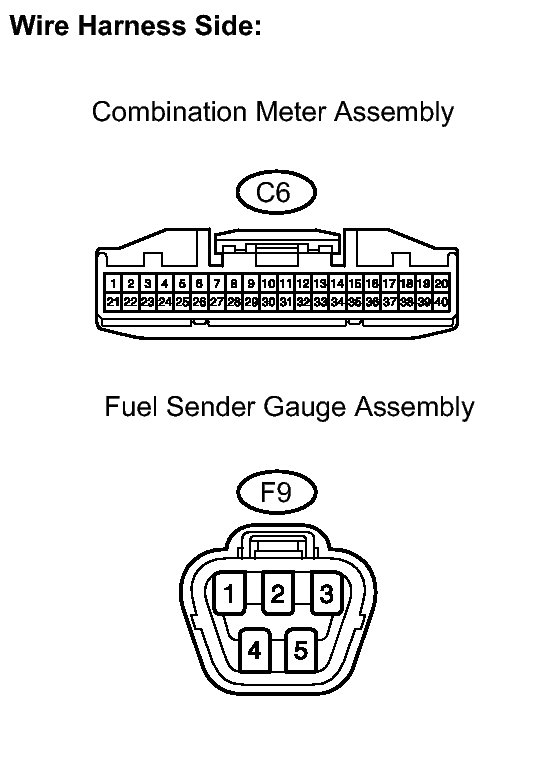

   Fig 3: Identifying Combination Meter And Fuel Sender Gauge Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the F9 gauge connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   C6-23 - F9-2	Below 1 Ω
   C6-2 - F9-3	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK → REPLACE COMBINATION METER ASSEMBLY
