Entire Combination Meter does not Operate: Wiring Diagram

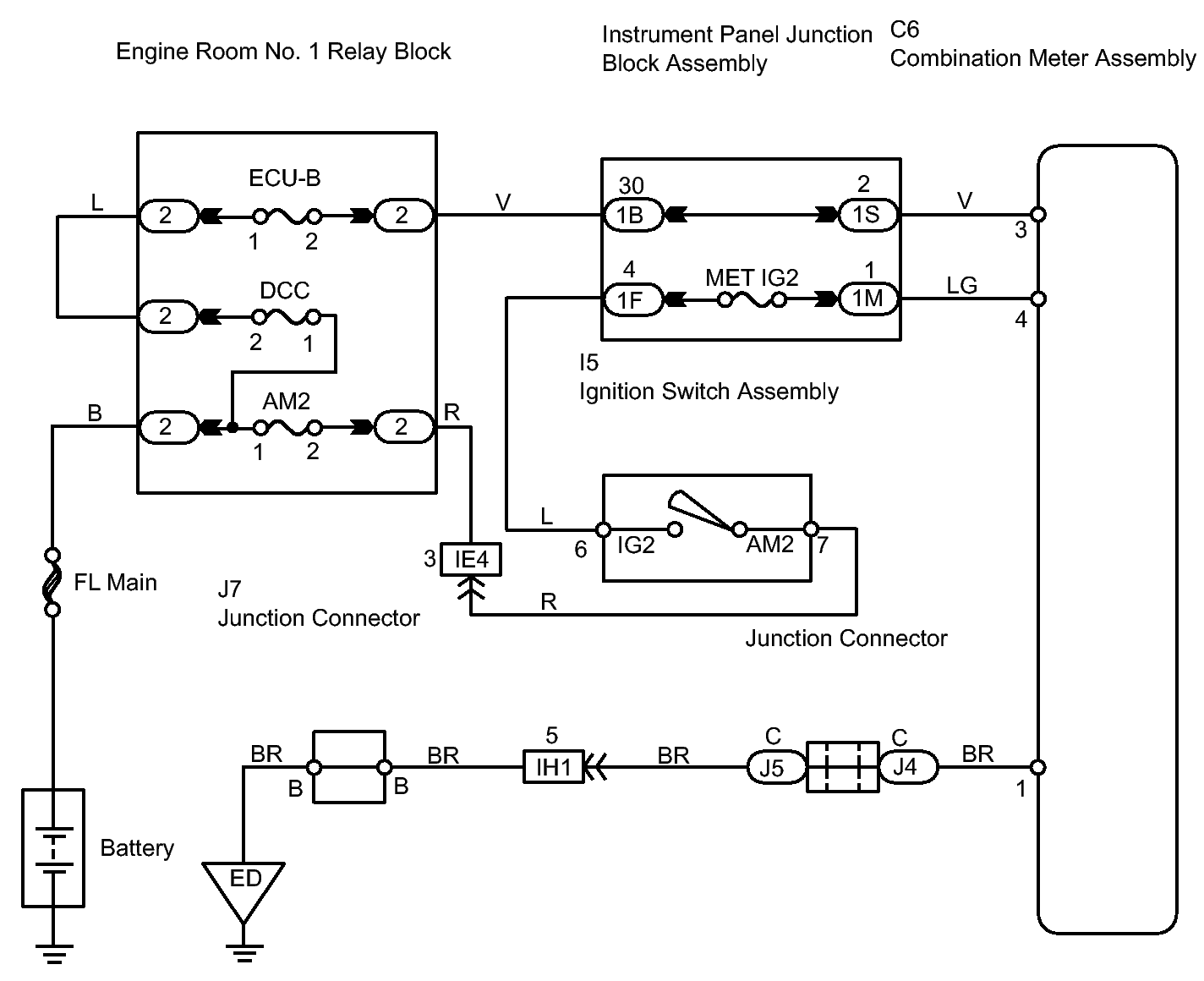

Fig 1: Identifying Combination Meter - Wiring Diagram

GTY166557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
