Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

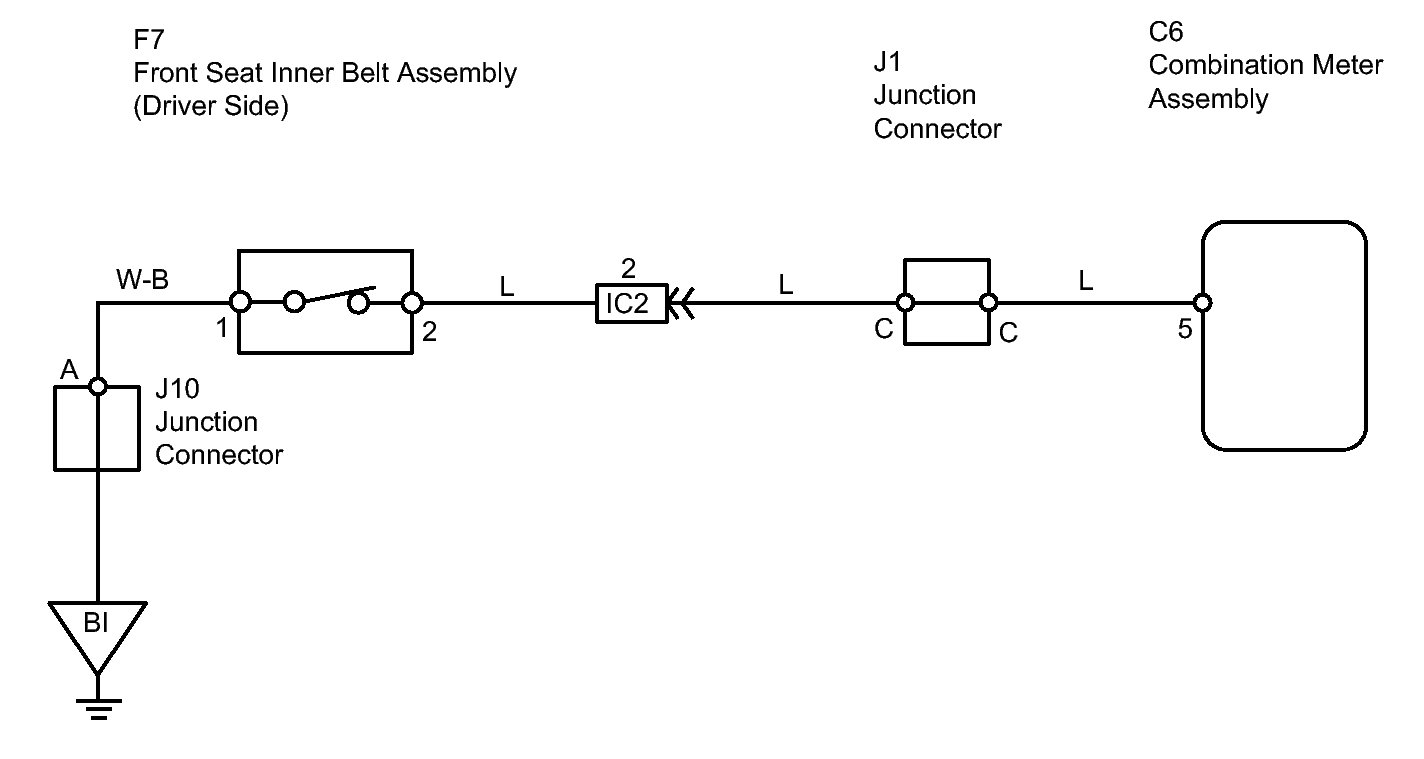

Fig 1: Identifying Driver Side Seat Belt Warning Light - Wiring Diagram

GTY157594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
