Engine Room Relay Block And Engine Room Junction Block

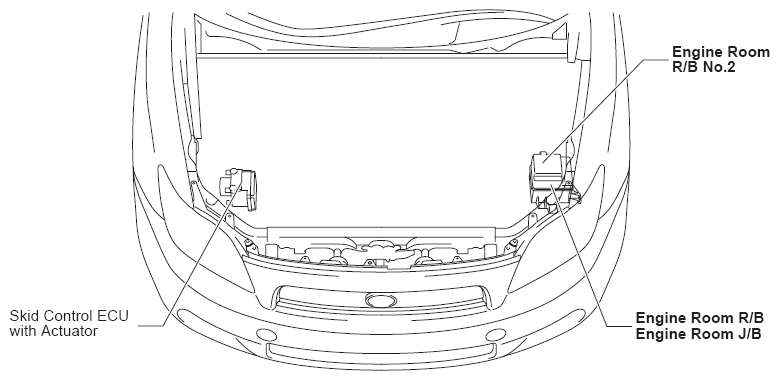

Engine Compartment Left (See Figure)

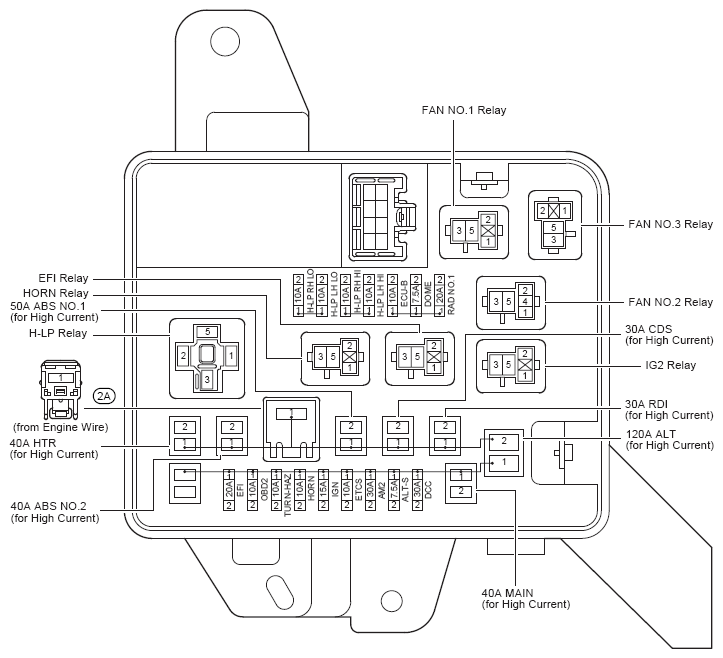

ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| H-LP Relay |
| Horn Relay |
| EFI Relay |
| Fan No.1 Relay |
| Fan No.3 Relay |
| Fan No.2 Relay |
| IG2 Relay |
Engine Room R/B And J/B Fuse & Relay Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | DOME | Interior Light |
| Wireless Door Lock Control | ||
| 10A | ECU-B | ABS |
| Air Conditioning | ||
| Audio System | ||
| Back Door Opener | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Engine Immobiliser System | ||
| Illumination | ||
| Interior Light | ||
| Key Reminder | ||
| Light Reminder | ||
| Power Window | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 10A | ETCS | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 10A | H-LP LH HI | Headlight |
| 10A | H-LP LH LO | Headlight |
| 10A | H-LP RH HI | Combination Meter |
| Headlight | ||
| 10A | H-LP RH LO | Headlight |
| 10A | HORN | Horn |
| Wireless Door Lock Control | ||
| 10A | OBD2 | Engine Control |
| 10A | TURN-HAZ | Turn Signal and Hazard Warning Light |
| 15A | IGN | Engine Control |
| Ignition | ||
| 20A | EFI | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Engine Immobiliser System | ||
| 20A | RAD NO. 1 | Audio System |
| 30A | AM2 | Starting |
| 30A | CDS | Radiator Fan and Condenser Fan |
| 30A | RDI | Radiator Fan and Condenser Fan |
| 40A | ABS NO. 2 | ABS |
| 40A | HTR | Air Conditioning |
| 40A | MAIN | Combination Meter |
| Headlight | ||
| Wireless Door Lock Control | ||
| 50A | ABS NO. 1 | ABS |
| 120A | ALT | Charging |
| Combination Meter | ||
| Engine Control | ||
| Illumination | ||
| Light Reminder | ||
| Starting | ||
| Taillight | ||
| Wireless Door Lock Control | ||
