Inspection Procedure

HINT:

Read freeze frame data using a Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. INSPECT IGNITION COIL ASSEMBLY (POWER SOURCE)
   1. Disconnect the ignition coil connectors.
   2. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      C11-4 (GND) - Body ground	Always	Below 1 Ω
      C12-4 (GND) - Body ground	Always	Below 1 Ω
      C13-4 (GND) - Body ground	Always	Below 1 Ω
      C14-4 (GND) - Body ground	Always	Below 1 Ω

   3. Turn the ignition switch to ON.
   4. Measure the voltage according to the value(s) in the table below.
      Fig 1: Identifying Ignition Coil Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      VOLTAGE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      C11-1 (+B) - C11-4 (GND)	Ignition switch ON	11 to 14 V
      C12-1 (+B) - C12-4 (GND)	Ignition switch ON	11 to 14 V
      C13-1 (+B) - C13-4 (GND)	Ignition switch ON	11 to 14 V
      C14-1 (+B) - C14-4 (GND)	Ignition switch ON	11 to 14 V

   5. Reconnect the ignition coil connectors.

   NG:  Go to step  4

   OK: Go to next step

2. CHECK HARNESS AND CONNECTOR (IGNITION COIL - ECM)
   1. Disconnect the ignition coil connectors.
   2. Disconnect the ECM connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      C11-2 (IGF) - C19-81 (IGF1)	Always	Below 1 Ω
      C12-2 (IGF) - C19-81 (IGF1)	Always	Below 1 Ω
      C13-2 (IGF) -C19-81 (IGF1)	Always	Below 1 Ω
      C14-2 (IGF) - C19-81 (IGF1)	Always	Below 1 Ω

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      C11-3 (IGT1) - C19-85 (IGT1)	Always	Below 1 Ω
      C12-3 (IGT2) - C19-84 (IGT2)	Always	Below 1 Ω
      C13-3 (IGT3) - C19-83 (IGT3)	Always	Below 1 Ω
      C14-3 (IGT4) - C19-82 (IGT4)	Always	Below 1 Ω

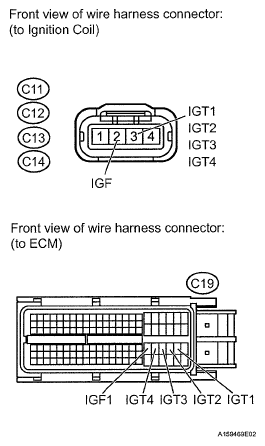

      Fig 2: Identifying Ignition Coil And ECM Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      C11-2 (IGF) or C19-81 (IGF1) - Body ground	Always	10 kΩ or higher
      C12-2 (IGF) or C19-81 (IGF1) - Body ground	Always	10 kΩ or higher
      C13-2 (IGF) or C19-81 (IGF1) - Body ground	Always	10 kΩ or higher
      C14-2 (IGF) or C19-81 (IGF1) - Body ground	Always	10 kΩ or higher

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      C11-3 (IGT1) or C19-85 (IGT1) - Body ground	Always	10 kΩ or higher
      C12-3 (IGT2) or C19-84 (IGT2) - Body ground	Always	10 kΩ or higher
      C13-3 (IGT3) or C19-83 (IGT3) - Body ground	Always	10 kΩ or higher
      C14-3 (IGT4) or C19-82 (IGT4) - Body ground	Always	10 kΩ or higher

   4. Reconnect the ECM connector.
   5. Reconnect the ignition coil connectors.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to next step

3. CHECK WHETHER DTC OUTPUT RECURS (DTC P0351, P0352, P0353 OR P0354)
   1. Connect a Techstream to the DLC3.
   2. Turn the ignition switch to ON.
   3. Turn the tester ON.
   4. Clear DTCs (See DTC CHECK / CLEAR ).
   5. Shuffle arrangement of the ignition coils with igniters (among No. 1 to No. 4 cylinders).
      NOTE: Do not shuffle the connectors.
   6. Perform a simulation test.
   7. Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.
   8. Read DTCs.

      Result

      RESULT REFERENCE



      Result	Proceed To
      Same DTC output	A
      Different ignition coil DTC output	B

   B : REPLACE IGNITION COIL  (See REMOVAL )

   A : REPLACE ECM  (See REMOVAL )

4. CHECK HARNESS AND CONNECTOR (IGNITION COIL - INTEGRATION RELAY)
   1. Disconnect the ignition coil connectors.
   2. Remove the integration relay (IG2 relay) from the engine room relay block (See REMOVAL ).
   3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      C11-1 (+B) - 1B-4	Always	Below 1 Ω
      C12-1 (+B) - 1B-4	Always	Below 1 Ω
      C13-1 (+B) - 1B-4	Always	Below 1 Ω
      C14-1 (+B) - 1B-4	Always	Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      C11-1 (+B) or 1B-4-Body ground	Always	10 kΩ or higher
      C12-1 (+B) or 1B-4-Body ground	Always	10 Ω or higher
      C13-1 (+B) or 1B-4-Body ground	Always	10 kΩ or higher
      C14-1 (+B) or 1B-4-Body ground	Always	10 kΩ or higher

   4. Reinstall the integration relay.
   5. Reconnect the ignition coil connectors.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

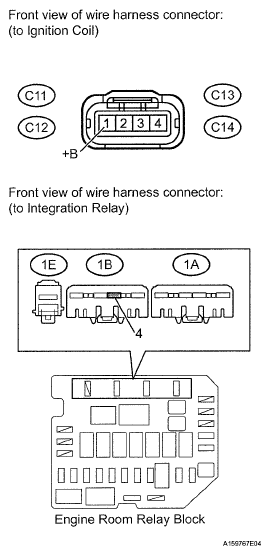

   Fig 3: Identifying Ignition Coil And Integration Relay Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK : REPAIR OR REPLACE ECM POWER SOURCE CIRCUIT  (See ECM POWER SOURCE CIRCUIT )
