Front Bumper: Removal

  1. REMOVE FRONT BUMPER COVER
      Fig 1: Identifying Protective Tape Applying Location
      G05403569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape, as shown in the illustration.
    2. Using a screw driver, remove the pin hold clip.
      Fig 2: Identifying Pin Hold Clip
      G00485202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Use the same procedure for the RH side and LH side.
    3. Remove the clip.
      NOTE: Use the same procedure for the RH side and LH side.

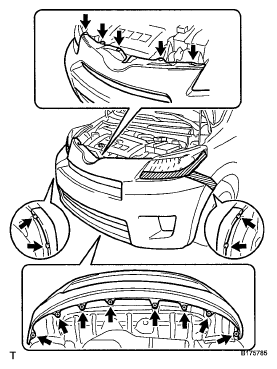

      Fig 3: Identifying Screws And Clips
      G05403570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 8 screws.

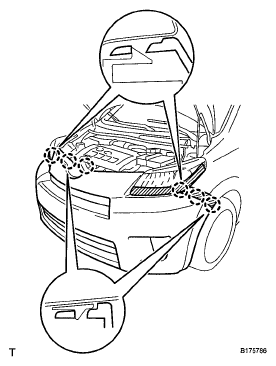

      Fig 4: Identifying Front Bumper Cover Claws
      G05403571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 5 clips.
    6. Disengage the 6 claws and remove the front bumper cover.
