Engine Unit: Removal

  1. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 4 ignition coil assembly connectors.
    2. Remove the 4 bolts and remove the 4 ignition coil assemblies.
      Fig 1: Locating Bolts And Ignition Coil Assemblies
      G05399168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE RADIO SETTING CONDENSER
    1. Disconnect the radio setting condenser connector.
      2. Fig 2: Locating Radio Setting Condenser Connector
      G05399169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and remove the radio setting condenser.
  3. REMOVE ENGINE WIRE
  4. REMOVE NO. 2 VENTILATION HOSE
    1. Remove the No. 2 ventilation hose.
      Fig 3: Locating No. 2 Ventilation Hose
      G05399170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HEATER WATER OUTLET HOSE A (FROM HEATER UNIT)
    1. Loosen the clip and remove heater water outlet hose A.
      Fig 4: Locating Clip And Heater Water Outlet Hose A
      G05399171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HEATER WATER INLET HOSE A
    1. Loosen the clip and remove heater water inlet hose A.
      Fig 5: Locating Clip And Heater Water Inlet Hose A
      G05399172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 RADIATOR HOSE
    1. Loosen the clip and remove the No. 1 radiator hose.
      Fig 6: Locating Clip And No. 1 Radiator Hose
      G05399173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INTAKE MANIFOLD
    1. Loosen the 2 clips and separate the 2 water by-pass hoses.
      2. Fig 7: Locating Clips And Water By-Pass Hoses
      G05399174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the No. 1 fuel vapor feed hose from the throttle body.
    3. Loosen the clip and separate the No. 1 vacuum transmitting hose.
    4. Separate the ventilation hose.
    5. Separate the wire harness clamp from the intake manifold.
      Fig 8: Locating Wire Harness Clamp
      G05399175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 4 bolt and 2 nuts and remove the intake manifold and manifold stay.
      7. Fig 9: Locating Bolt And Nuts And Intake Manifold And Manifold Stay
      G05399176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the gasket from the intake manifold.
  9. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
    1. Remove the 3 bolts and remove the fuel delivery pipe with the 4 fuel injectors.
      NOTE: Do not drop the fuel injectors when removing the fuel delivery pipe.
      Fig 10: Locating Bolts And Fuel Delivery Pipe
      G05399177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 DELIVERY PIPE SPACER  (See REMOVAL )
  11. REMOVE INJECTOR VIBRATION INSULATOR  (See REMOVAL )
  12. REMOVE FUEL INJECTOR ASSEMBLY  (See REMOVAL )
  13. REMOVE GENERATOR ASSEMBLY  (See REMOVAL )
  14. REMOVE FAN BELT ADJUSTING BAR
    1. Remove the bolt and remove the fan belt adjusting bar.
      Fig 11: Locating Bolt And Fan Belt Adjusting Bar
      G05399178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE VENTILATION HOSE
    1. Remove the ventilation hose.
      2. Fig 12: Locating Ventilation Hose
      G05399179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE OIL LEVEL DIPSTICK
  17. REMOVE OIL LEVEL GAGE GUIDE
    1. Remove the bolt and remove the oil level gage guide.
      Fig 13: Locating Bolt And Oil Level Gage Guide
      G05399180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE WATER BY-PASS HOSE
    1. Loosen the clip and remove the water by-pass hose.
      Fig 14: Locating Clip And Water By-Pass Hose
      G05399181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE WATER INLET HOSE
    1. Loosen the 2 clips and remove the water inlet hose.
      Fig 15: Locating Clips And Water Inlet Hose
      G05399182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 1 WATER BY-PASS PIPE
    1. Loosen the clip and disconnect the No. 3 water bypass hose.
    2. Remove the 2 bolts and remove the water by-pass pipe.
      Fig 16: Locating Bolts And Water By-Pass Pipe
      G05399183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE AIR TUBE ASSEMBLY
    1. Remove the 2 bolts and remove the air tube assembly.
      Fig 17: Locating Bolts And Air Tube Assembly
      G05399184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 4 bolts and remove the No. 1 exhaust manifold heat insulator.
      Fig 18: Locating Bolts And No. 1 Exhaust Manifold Heat Insulator
      G05399604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE MANIFOLD STAY
    1. Remove the 3 bolts and remove the manifold stay.
      Fig 19: Locating Bolts And Manifold Stay
      G05399605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE EXHAUST MANIFOLD
    1. Remove the 5 nuts and remove the exhaust manifold.
      Fig 20: Locating Nuts And Exhaust Manifold
      G05399606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the 4 bolts and remove the 4 wire harness clamp brackets.

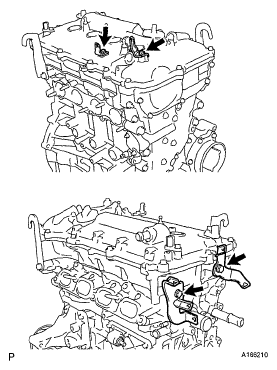

      Fig 21: Locating Bolts And Wire Harness Clamp Brackets
      G05399188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
