xD Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter
>>
Meter / Gauge System
>>
Parts Location
Parts Location

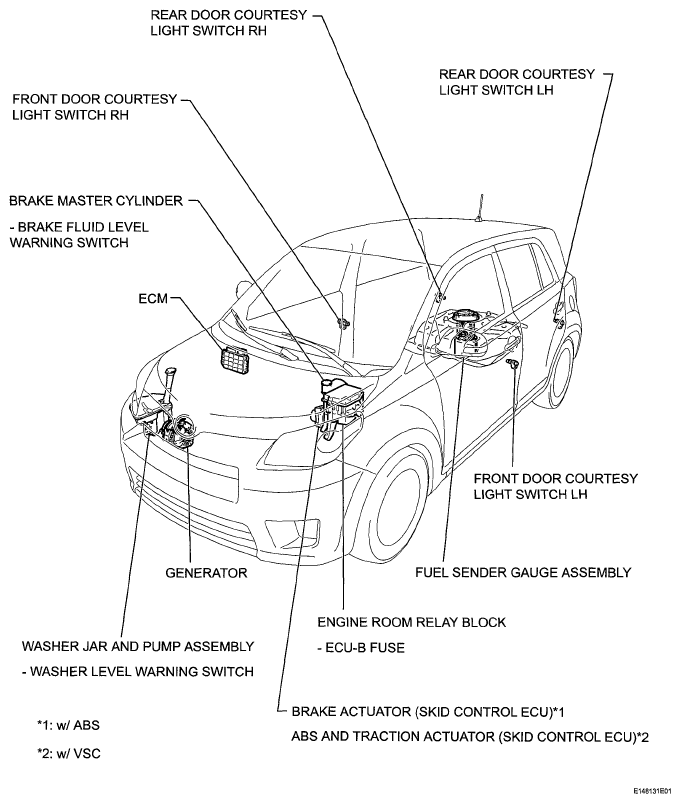

Fig 1: Identifying Meter / Gauge System Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

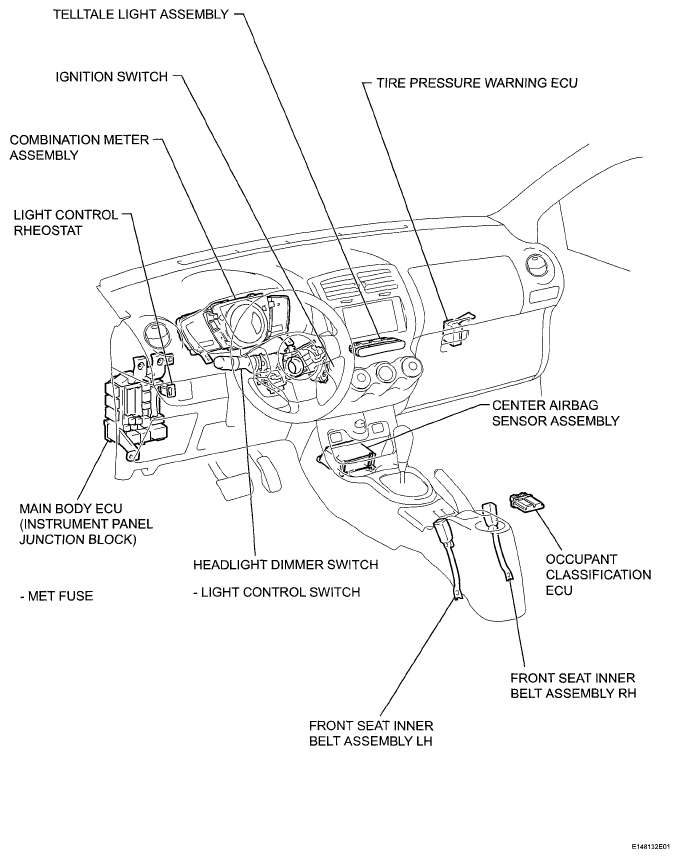

Fig 2: Identifying Meter / Gauge System Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

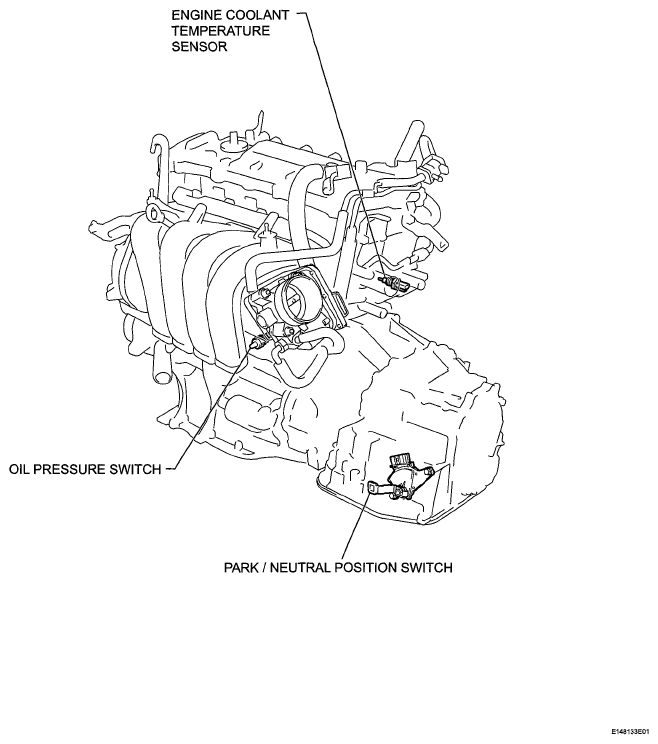

Fig 3: Identifying Meter / Gauge System Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
