Overall Electrical Wiring Diagram: Starting

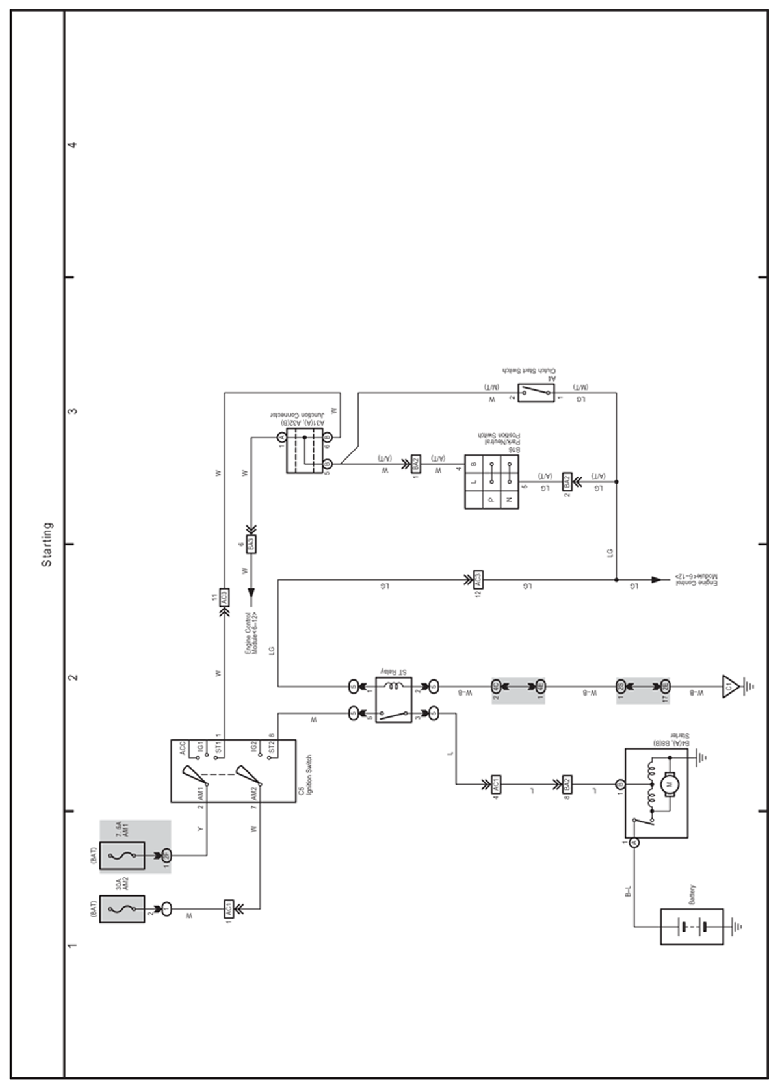

Fig 1: Starting Electrical Wiring Diagram

G07618121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
