Shift Lock, Tire Pressure Warning System

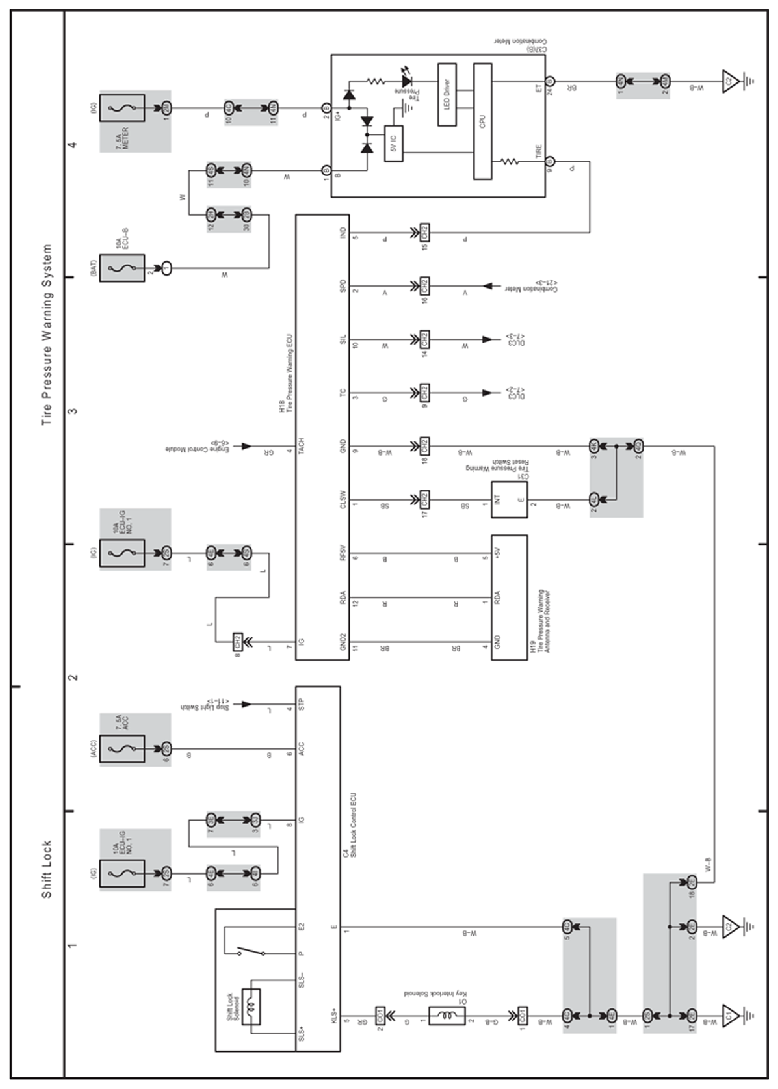

Fig 1: Shift Lock Electrical Wiring Diagram

G07618135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
