Seat Belt Warning, SRS

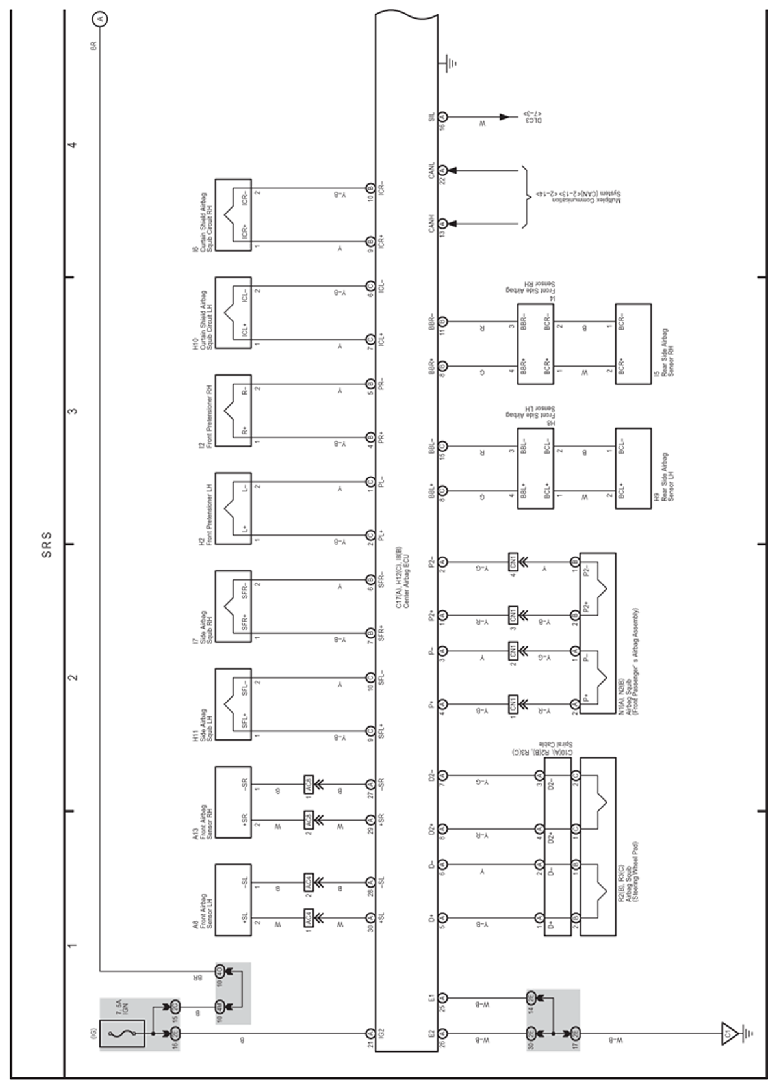

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)
G07618138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

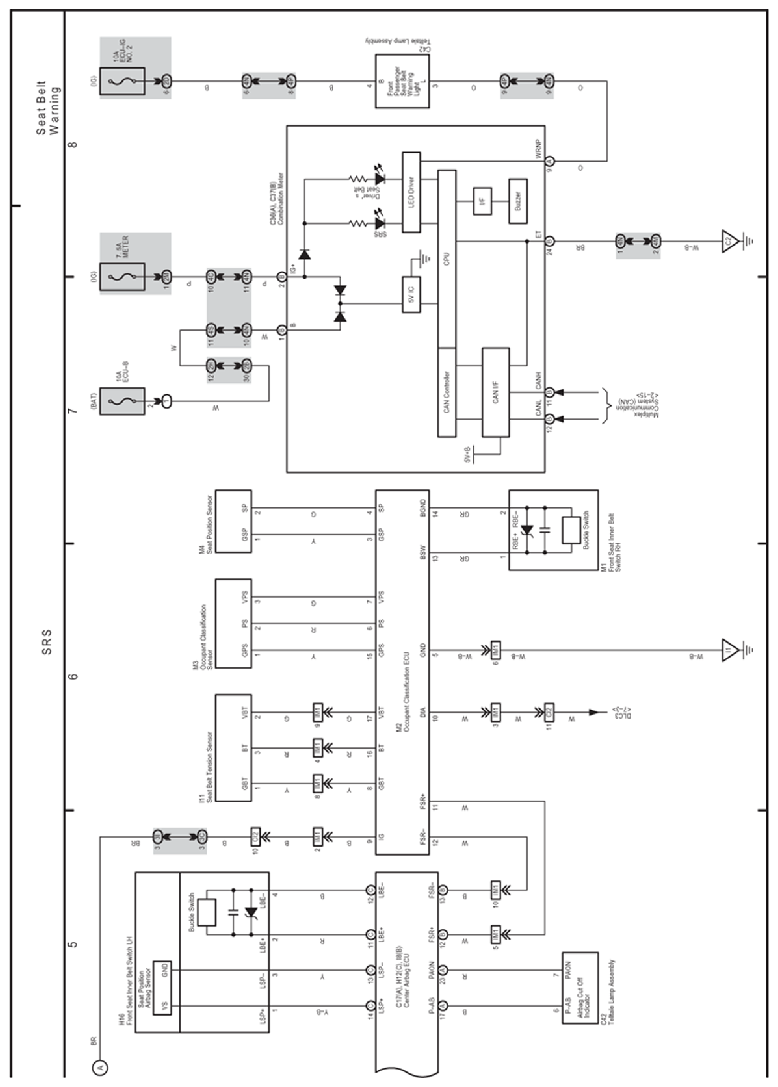

Fig 2: SRS Electrical Wiring Diagram (2 Of 2)
G07618139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
