Front Wiper and Washer, Rear Wiper and Washer

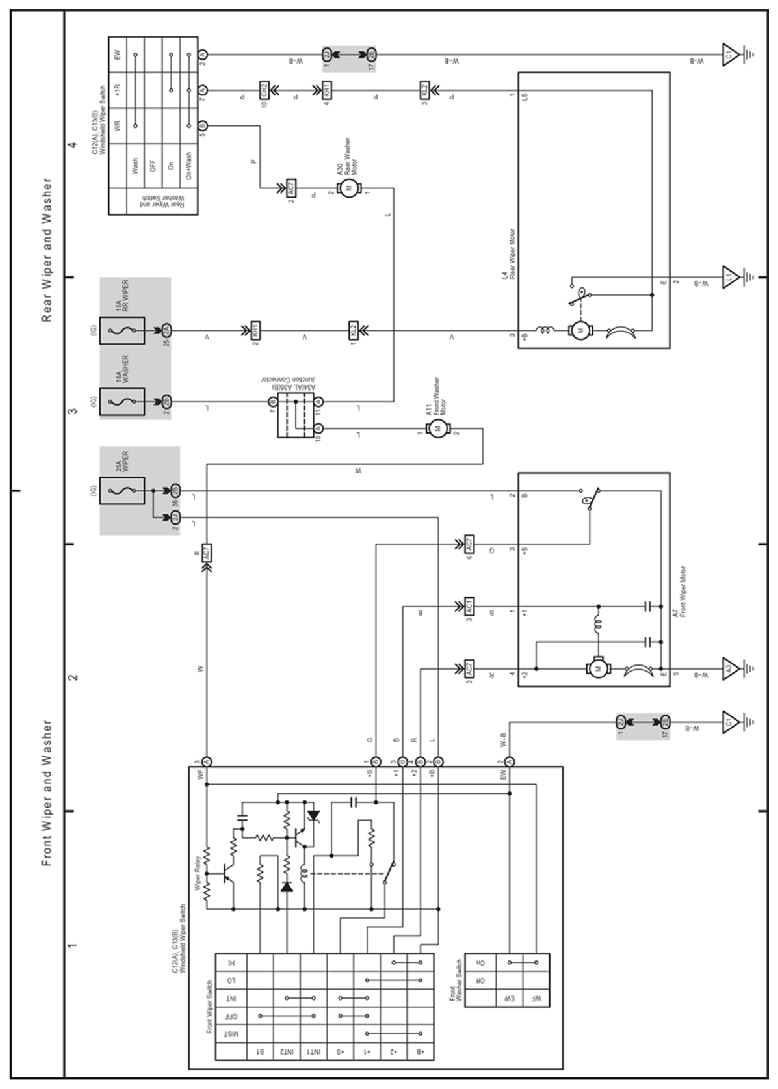

Fig 1: Front/Rear Wiper And Washer Electrical Wiring Diagram

G07618142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
