Back-Up Light, Stop Light

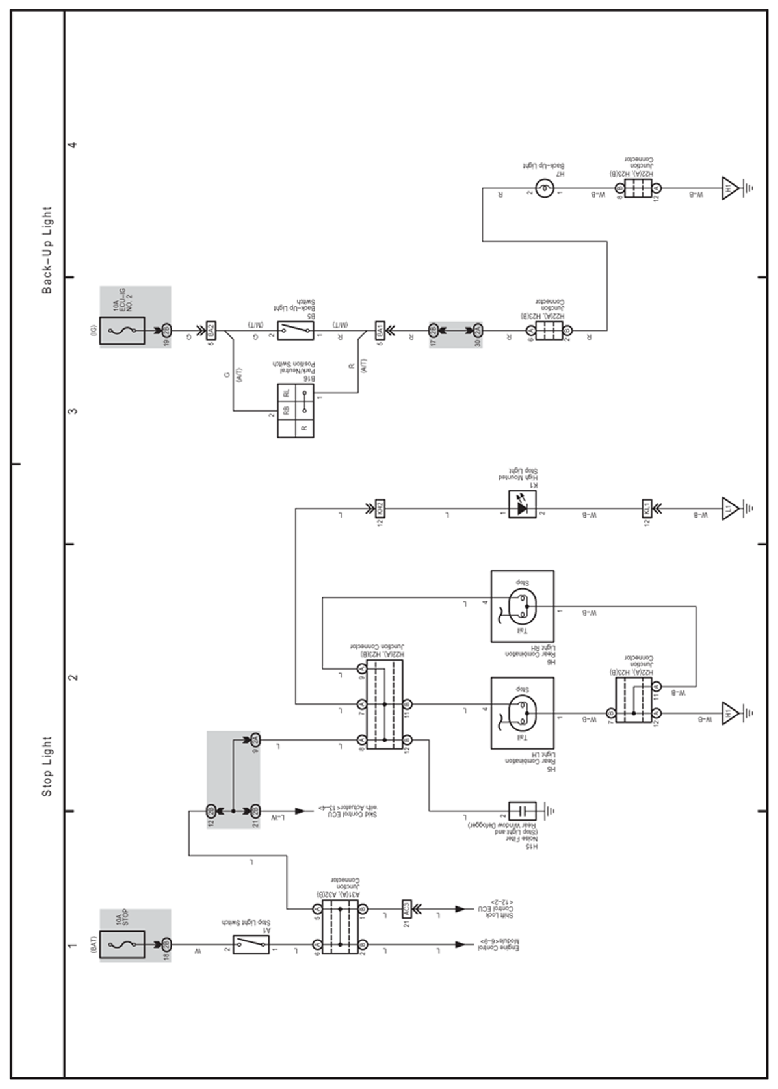

Fig 1: Stop Light Electrical Wiring Diagram

G07618134

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
