Air Conditioning

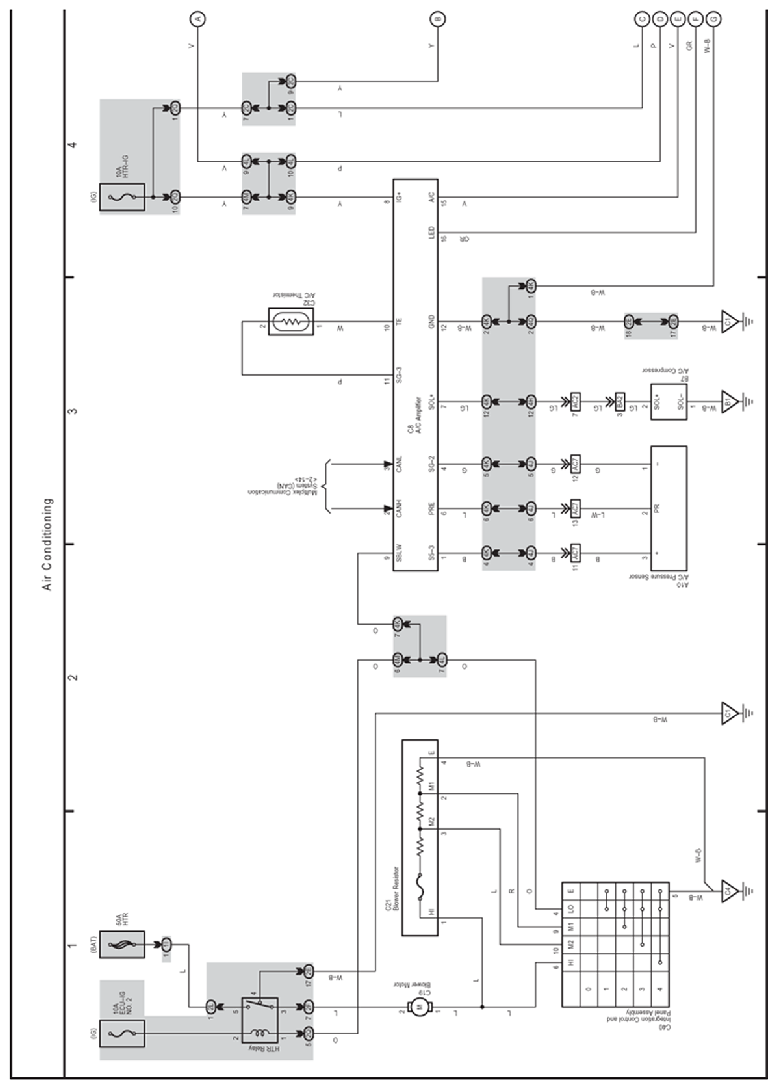

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 2)
G07618148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

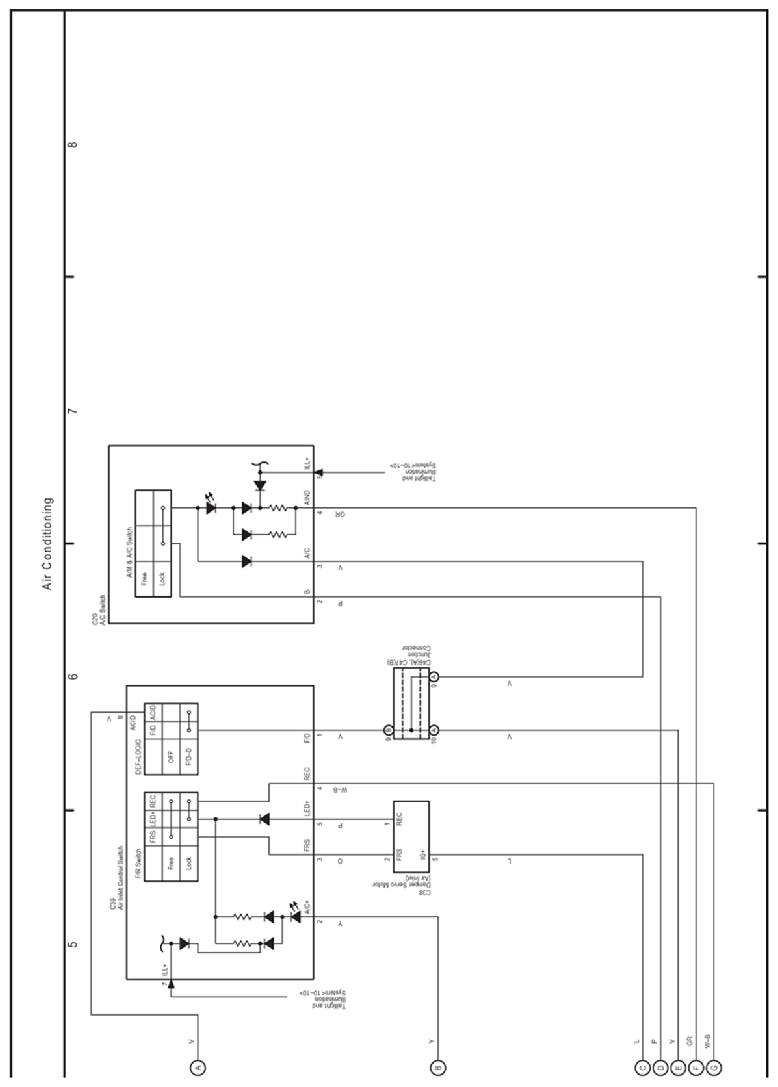

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 2)
G07618149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
