xB Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Abs, TRAC, VSC
Abs, TRAC, VSC

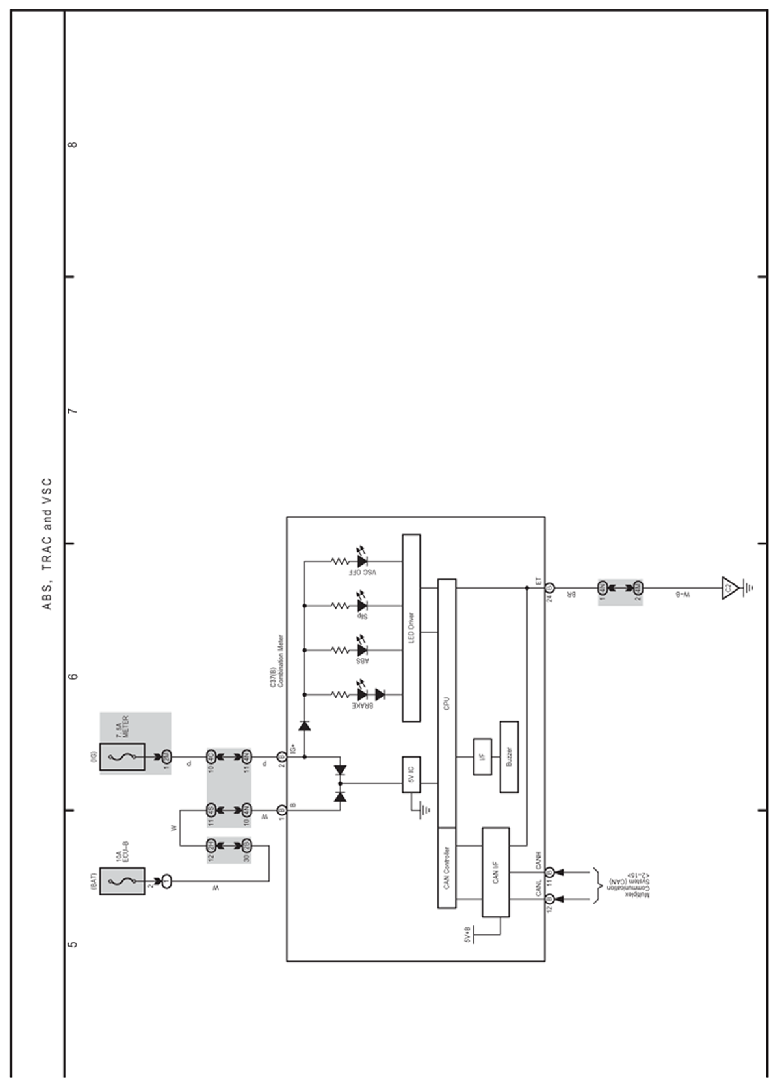

Fig 1: ABS, TRAC And VSC Electrical Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

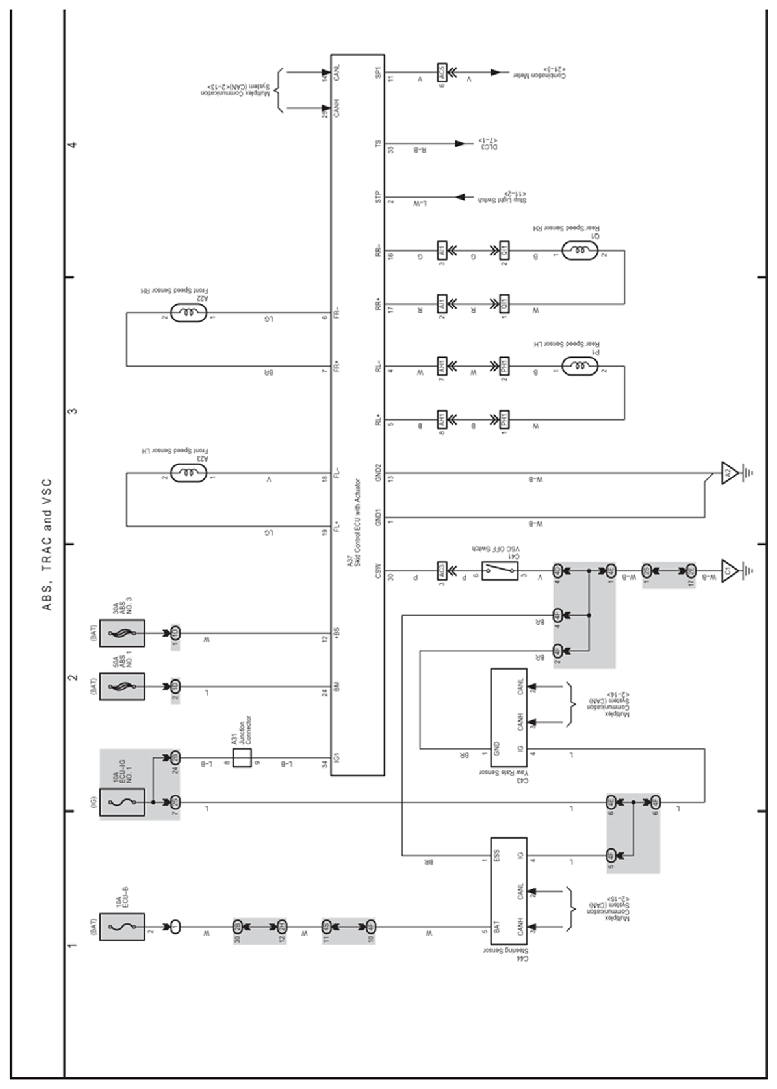

Fig 2: ABS, TRAC And VSC Electrical Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
