Parts Location

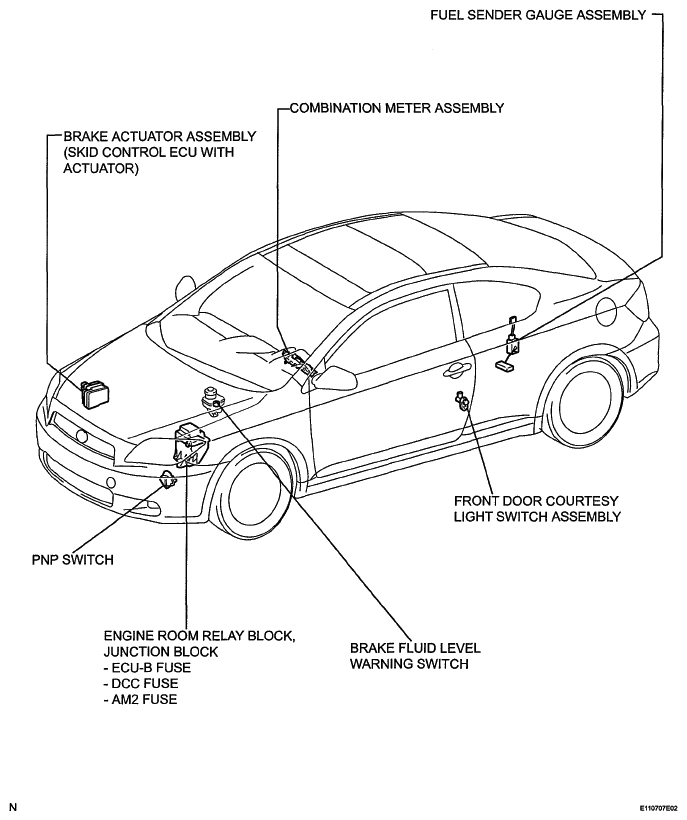

Fig 1: Identifying Meter / Gauge System Replacement Components Location (1 Of 3)
G05541615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

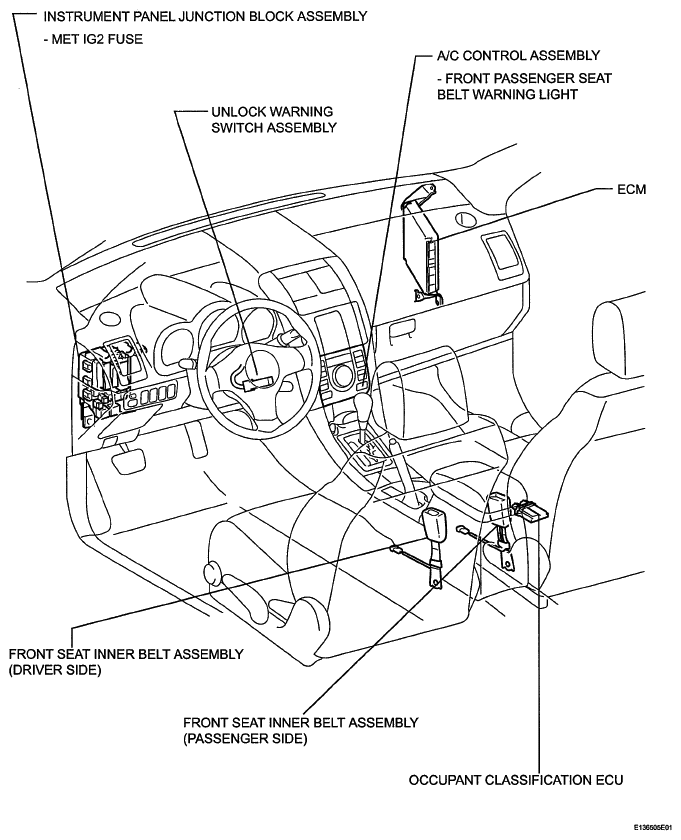

Fig 2: Identifying Meter / Gauge System Replacement Components Location (2 Of 3)
G05541616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

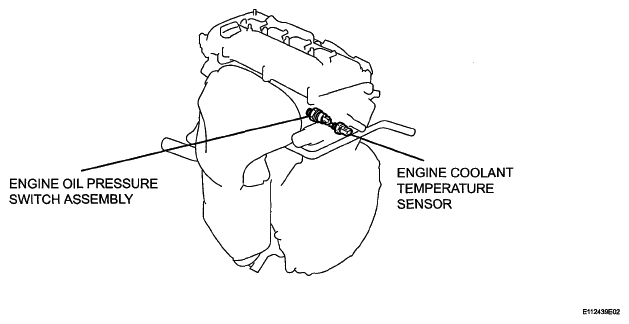

Fig 3: Identifying Meter / Gauge System Replacement Components Location (3 Of 3)
G05541617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
