Fuel Gauge Malfunction: Wiring Diagram

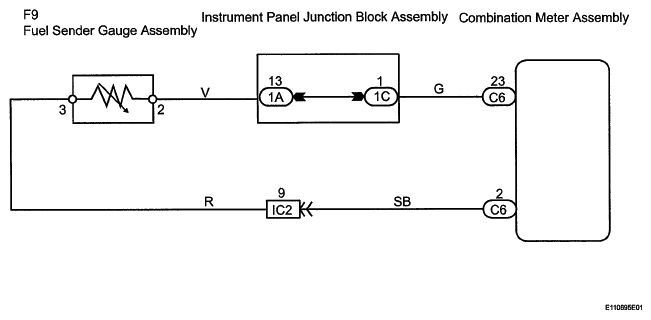

Fig 1: Identifying Fuel Sender Gauge - Wiring Diagram

G05541639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
