Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

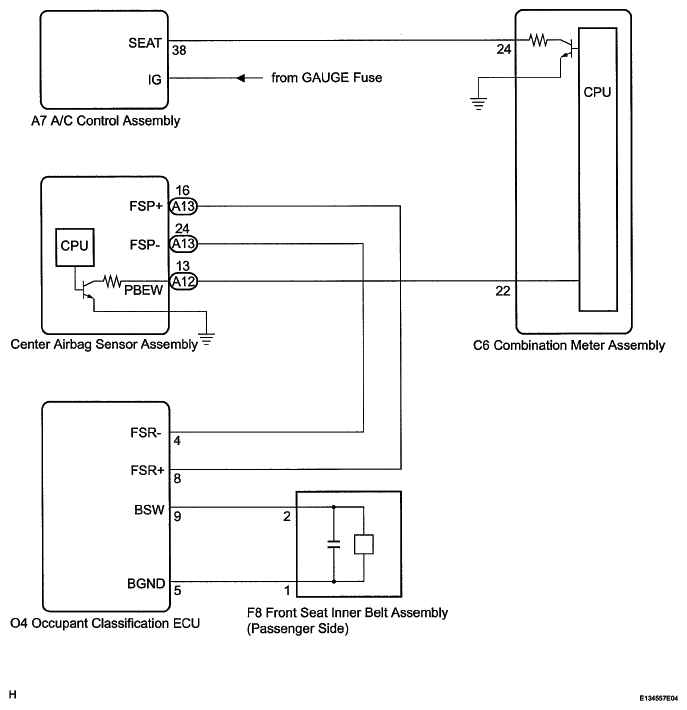

Fig 1: Identifying Front Passenger Side seat Belt Warning Light - Wiring Diagram
G05541654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
