Roof Headlining: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)
2. INSTALL SIDE RAIL SPACER FRONT RH (w/o Curtain Shield Airbag)
3. INSTALL SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)
4. INSTALL SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)
5. INSTALL ROOF HEADLINING ASSEMBLY
   1. Attach the wire harness to the headlining with tape as shown in the illustration.

      HINT:

      Be careful that dirt and foreign matter do not contaminate the tape's adhesive.

      Fig 1: Identifying Wire Harness To Headlining With Tape

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Attach the roof wire harness with tape.
      NOTE: Attach the roof wire harness securely.
   3. Attach the 26 fasteners to install the headlining.
   4. Install the 2 clips.
      Fig 2: Identifying Roof Headlining Assembly Fasteners And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL COAT HOOK
   1. Install the coat hook with the bolt and attach the claw.
      Fig 3: Identifying Coat Hook Claw And Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL ASSIST GRIP SUB-ASSEMBLY
   1. Attach the 4 claws to install the assist grip.
      Fig 4: Identifying Assist Grip Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL ASSIST GRIP COVER
   1. Attach the 4 claws to install the 2 covers.
      Fig 5: Identifying Assist Grip Cover Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL VISOR HOLDER LH
   1. Install the visor holder by turning it clockwise.
10. INSTALL VISOR HOLDER RH
    1. Install the visor holder by turning it clockwise.
11. INSTALL LH VISOR ASSEMBLY
    1. Install the visor with the 2 screws.
12. INSTALL RH VISOR ASSEMBLY
    1. Install the visor with the 2 screws.
13. INSTALL NO. 2 ROOM LIGHT ASSEMBLY
    1. Attach the light to the deck trim side panel LH.
14. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
    1. Connect the room light connector.
    2. Attach the 4 claws to install the light.
       Fig 6: Identifying No. 1 Room Light Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the lens.
       Fig 7: Identifying Lens Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. INSTALL MAP LIGHT ASSEMBLY
    1. Connect the map light connector.
    2. Attach the 3 clips to install the light.
       Fig 8: Identifying Map Light Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL FRONT PILLAR GARNISH LH
    1. w/o Curtain shield airbag:

       Attach the 2 clips to install the garnish.

       Fig 9: Identifying Front Pillar Garnish Clips (W/O Curtain Shield Airbag)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:
       1. Remove the protective cover.

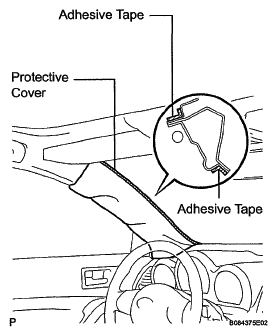

          Fig 10: Identifying Protective Cover (With Curtain Shield Airbag)

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       2. Attach the 2 clips to install the garnish.

          HINT:

          Clip B cannot be reused.

          Fig 11: Identifying Garnish Clips

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

18. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH
    1. w/o Curtain shield airbag:

       Attach the 4 clips to install the garnish.

       Fig 12: Identifying Roof Side Garnish Clips (W/O Curtain Shield Airbag)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:

       Attach the 4 clips to install the garnish.

       HINT:

       Clip B cannot be reused.

19. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 13: Identifying Roof Side Garnish Clips (With Curtain Shield Airbag)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Attach the 4 claws and 4 clips to install the side panel.
    2. Install the rope hook with the bolt.
    3. Install the luggage hook.

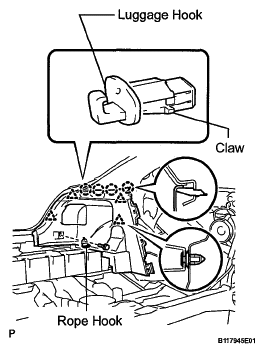

    Fig 14: Identifying Deck Trim Side Panel Claws And Clips

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

22. INSTALL ROOF SIDE GARNISH INNER LOWER LH
    1. Attach the 5 clips to install the garnish.
       Fig 15: Identifying Roof Side Garnish Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. INSTALL ROOF SIDE GARNISH INNER LOWER RH

    HINT:

    Use the same procedures described for the LH side.

24. INSTALL CENTER PILLAR GARNISH LH
    1. w/o Curtain shield airbag:

       Attach the clip to install the garnish.

    2. w/ Curtain shield airbag:

       Attach the 2 claws and clip to install the garnish.

    3. Install the 2 screws.

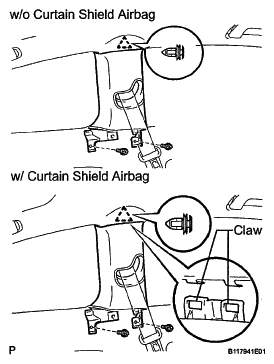

       Fig 16: Identifying Center Pillar Garnish Claws, Screws And Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25. INSTALL CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

26. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH
    1. Attach the 3 claws and 8 clips to install the trim.
    2. Attach the clip labeled A.
    3. Install the hook.
    4. Install the 2 floor anchor bolts (front and rear seat belt).
       Fig 17: Identifying No. 1 Side Trim Hook, Claws And Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
27. INSTALL NO. 1 SIDE TRIM ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

28. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
29. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
30. INSTALL REAR SEATBACK ASSEMBLY LH  ( INSTALLATION )
31. INSTALL REAR SEATBACK ASSEMBLY RH  ( INSTALLATION )
32. INSTALL REAR SEAT CUSHION ASSEMBLY  ( INSTALLATION )
33. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Attach the 2 clips to install the trim.
    2. Install the cap nut.
       Fig 18: Identifying Cowl Side Trim Clips And Cap Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
34. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

35. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the 10 claws to install the scuff plate.
       Fig 19: Identifying Front Door Scuff Plate Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
36. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

37. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE LH
    1. Attach the 4 clips to install the scuff plate.
       Fig 20: Identifying Front Door Scuff Plate Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
38. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

39. INSTALL REAR NO. 1 FLOOR BOARD
    1. Attach the clip to install the board.
       Fig 21: Identifying Rear No. 1 Floor Board Clip

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
40. INSTALL NO. 1 DECK BOARD
    1. Attach the 4 clips to install the deck board.
    2. Install the rope hook with the bolt.
       Fig 22: Identifying Deck Board Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
41. INSTALL DECK FLOOR BOX REAR
42. INSTALL DECK FLOOR BOX LH
    1. Install the box with the 2 clips.
43. INSTALL DECK FLOOR BOX RH
    1. Install the box with the 2 clips.
44. INSTALL SPARE WHEEL COVER ASSEMBLY
45. INSTALL BACK DOOR WEATHERSTRIP
46. INSTALL BACK DOOR SCUFF PLATE
    1. Attach the 4 clips to install the scuff plate.
       Fig 23: Identifying Back Door Scuff Plate Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
47. INSTALL DECK BOARD SUB-ASSEMBLY
48. INSTALL TONNEAU COVER ASSEMBLY
