| A |
- |
(Electrical connector check mechanism) |
| B |
- |
(Electrical connector check mechanism) |
| A10-3 |
LA |
Combination meter assembly (SRS warning light) |
| A10-5 |
IG2 |
AM2 fuse |
| A10-7 |
P2- |
Front passenger airbag assembly (front passenger side squib, 2nd step) |
| A10-8 |
P2+ |
| A10-9 |
+SR |
Front airbag sensor RH |
| A10-10 |
P+ |
Front passenger airbag assembly (front passenger side squib) |
| A10-11 |
P- |
| A10-12 |
SIL |
DLC3 |
| A10-13 |
D- |
Steering pad (driver side squib) |
| A10-14 |
D |
| 10-15 |
+SL |
Front airbag sensor LH |
| A10-16 |
D2+ |
Steering pad (driver side squib, 2nd step) |
| A10-17 |
D2- |
| A10-19 |
TC |
DLC3 |
| A10-20 |
-SR |
Front airbag sensor RH |
| A10-23 |
GSW2 |
ECM |
| A10-26 |
-SL |
Front airbag sensor LH |
| A10-27 |
E1 |
Ground |
| A10-28 |
E2 |
| A9-1 |
PL- |
Front seat outer belt assembly LH (Squib) |
| A9-2 |
PL+ |
| A9-3 |
LSP+ |
Seat position sensor |
| A9-7 |
LBE- |
Front seat inner belt assembly |
| A9-8 |
LSP- |
Seat position sensor |
| A9-11 |
LBE+ |
Font seat inner belt assembly |
| A11-5 |
PR+ |
Front seat outer belt assembly RH (Squib) |
| A11-6 |
PR- |
| A11-8 |
RBE+ |
Front seat inner belt assembly RH |
| A11-12 |
RBE- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

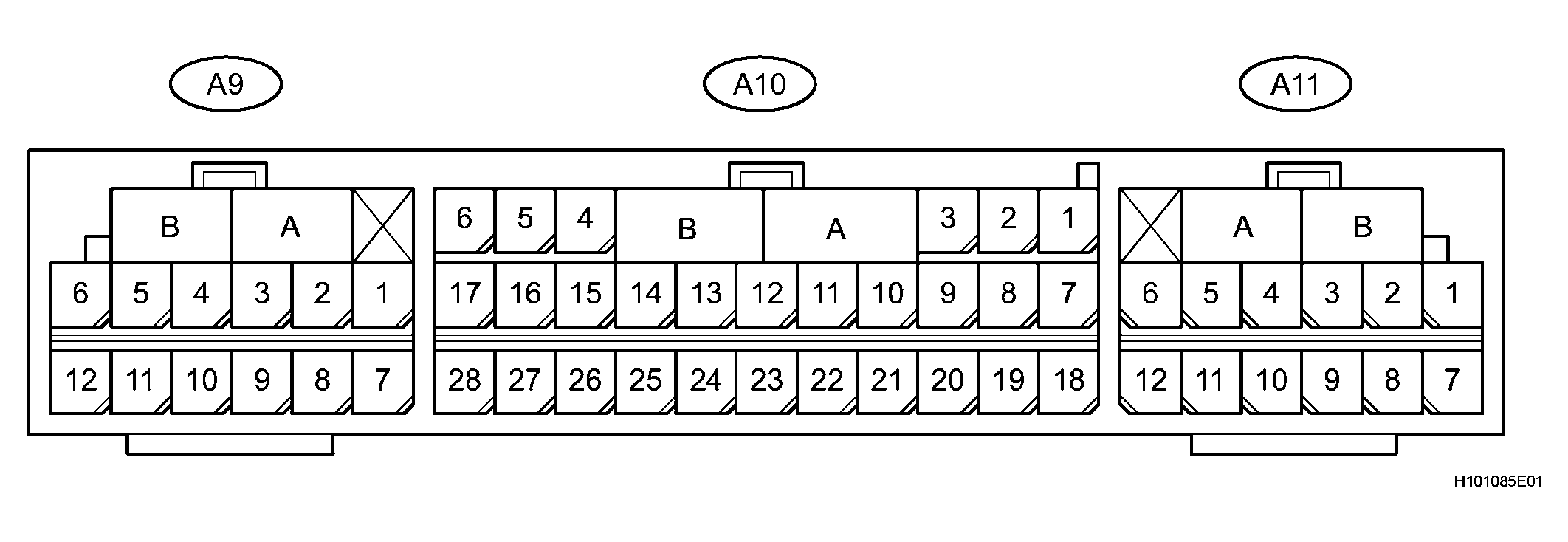

CENTER AIRBAG SENSOR ASSEMBLY ECU TERMINALS SYMBOL DESTINATION (2005/07-2005/12)
