Roof Headlining: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT DOOR SCUFF PLATE RH
    1. Using a screwdriver, detach the 2 claws and 3 clips, and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

  3. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures described for the RH side.

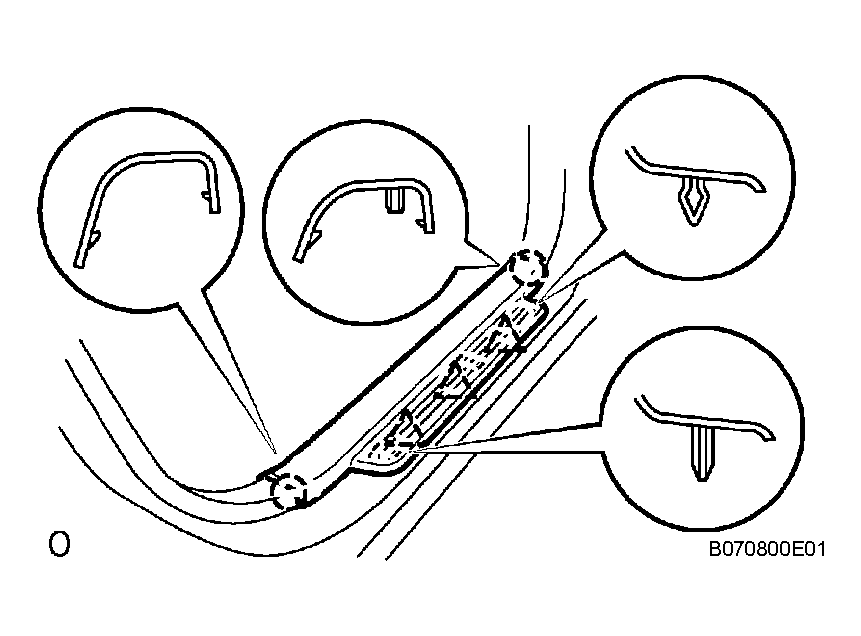

    Fig 1: Detaching Claws And Clips
    G04229848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR DOOR SCUFF PLATE RH
    1. Using a screwdriver, detach the 2 claws and 2 clips, and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

  5. REMOVE REAR DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures described for the RH side.

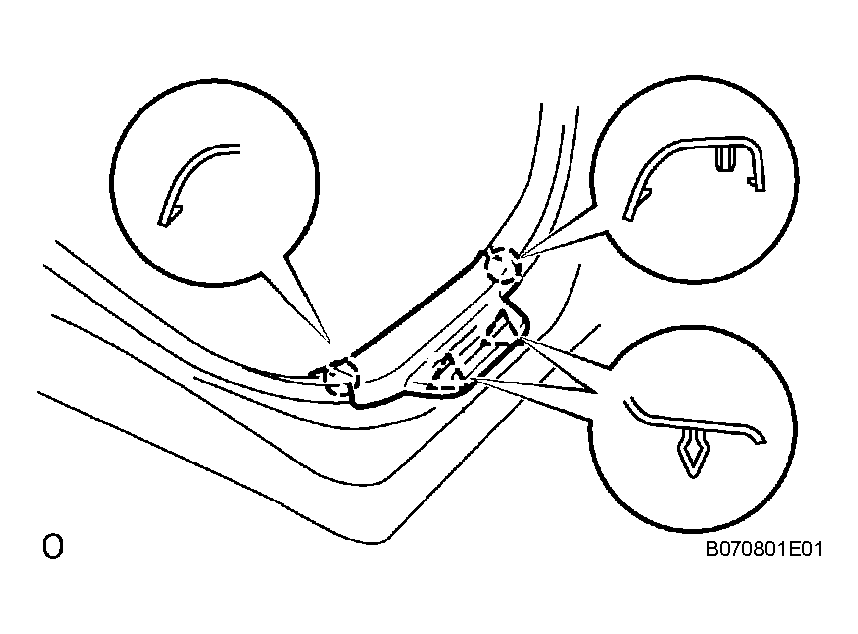

    Fig 2: Removing Scuff Plate
    G04229849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COWL SIDE TRIM BOARD RH
    1. Using a screwdriver, detach the 2 clips and remove the trim board.

      HINT:

      Tape the screwdriver tip before use.

  7. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedures described for the RH side.

  8. REMOVE FRONT DOOR OPENING TRIM RH
  9. REMOVE FRONT DOOR OPENING TRIM LH
  10. REMOVE REAR DOOR OPENING TRIM RH
  11. REMOVE REAR DOOR OPENING TRIM LH
  12. REMOVE CENTER PILLAR GARNISH LOWER RH
    1. Remove the floor anchor cover.
    2. Remove the bolt and front seat outer belt floor anchor.
      Fig 3: Removing Trim Board
      G04229850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the center pillar garnish.
  13. REMOVE CENTER PILLAR GARNISH LOWER LH

    HINT:

    Use the same procedures described for the RH side.

  14. REMOVE CENTER PILLAR GARNISH UPPER RH
    1. Remove the shoulder anchor cover.
    2. Remove the bolt and front seat outer belt shoulder anchor.
      Fig 4: Removing Center Pillar Garnish
      G04229851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the claw and clip, and remove the center pillar garnish by pulling it up.
  15. REMOVE CENTER PILLAR GARNISH UPPER LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 5: Removing Center Pillar Garnish Upper LH
    G04229852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 DECK BOARD
  17. REMOVE NO. 2 DECK BOARD
  18. REMOVE DECK FLOOR BOX RH
  19. REMOVE DECK FLOOR BOX LH
  20. REMOVE REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY (See  REMOVAL  )
  21. REMOVE REAR SEATBACK ASSEMBLY LH (See  REMOVAL  )
  22. REMOVE REAR SEATBACK ASSEMBLY RH (See  REMOVAL  )
  23. REMOVE BACK DOOR WEATHERSTRIP
  24. REMOVE DECK TRIM COVER REAR
    1. Using a clip remover, remove the 2 clips.
    2. Using a screwdriver, detach the 4 clips and remove the trim cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 6: Removing Deck Trim Cover Rear
      G04229853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the 2 bolts and 2 hooks.
    2. Remove the bolt and seatback hinge.
    3. Remove the bolt and rear seat 3 point type belt floor anchor.
    4. Using a screwdriver, detach the 3 claws and 5 clips, and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

  26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    HINT:

    Use the same procedures described for the RH side.

  27. REMOVE ROOF SIDE GARNISH INNER RH
    1. Remove the bolt and rear seat 3 point type belt shoulder anchor.
      Fig 7: Removing Roof Side Garnish Inner RH
      G04229854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the claw and 5 clips and remove the side garnish.

      HINT:

      Tape the screwdriver tip before use.

  28. REMOVE ROOF SIDE GARNISH INNER LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 8: Detaching Claw And Clips
    G04229855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FRONT PILLAR GARNISH RH
    1. Using a screwdriver, detach the 2 claws and 2 clips, and remove the garnish by pulling it up.

      HINT:

      Tape the screwdriver tip before use.

  30. REMOVE FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedures described for the RH side.

  31. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (See  REMOVAL  )
    Fig 9: Removing Front Pillar Garnish LH
    G04229856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE VISOR ASSEMBLY RH
    1. Remove the 2 screws and visor.
  33. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor.
  34. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the lens cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws and light.
    3. Disconnect the connector.
      Fig 10: Removing No 1 Room Light Assembly
      G04229857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE VISOR HOLDER RH
    1. Remove the screw.
    2. Using a moulding remover, detach the 3 claws and remove the holder.
  36. REMOVE VISOR HOLDER LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 11: Removing Visor Holder LH
    G04229858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, detach the 2 claws and open the assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 bolts and assist grip.
      Fig 12: Detaching Claws
      G04229859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE ROOF HEADLINING ASSEMBLY
    1. Using a clip remover, remove the 4 clips and headlining.
      Fig 13: Removing Clips And Headlining
      G04229860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
