Roof Headlining: Installation

  1. INSTALL ROOF HEADLINING ASSEMBLY
    1. Install the headlining with the 4 clips.
      Fig 1: Installing Headlining
      G04229861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Install the assist grip with the 2 bolts.
    2. Attach the 2 claws to install the assist grip covers.
  3. INSTALL VISOR HOLDER RH
    1. Attach the 3 claws to install the holder.
      Fig 2: Installing Assist Grip With Bolts
      G04229862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  4. INSTALL VISOR HOLDER LH

    HINT:

    Use the same procedures described for the RH side

  5. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
    1. Connect the connector.
    2. Install the light with the 2 screws.
      Fig 3: Installing Visor Holder LH
      G04229863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the lens cover.
  6. INSTALL VISOR ASSEMBLY RH
    1. Install the visor with the 2 screws.
  7. INSTALL VISOR ASSEMBLY LH
    1. Install the visor with the 2 screws.
  8. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (See  INSTALLATION  )
    Fig 4: Installing Visor With Screws
    G04229864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT PILLAR GARNISH RH
    1. Attach the 2 claws and 2 clips to install the garnish.
  10. INSTALL FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 5: Installing Rear Seat Point Type Belt Shoulder Anchor With Bolt
    G04229865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL ROOF SIDE GARNISH INNER RH
    1. Attach the claw and 5 clips to install the side garnish.
    2. Install the rear seat 3 point type belt shoulder anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  12. INSTALL ROOF SIDE GARNISH INNER LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 6: Installing Roof Side Garnish Inner LH
    G04229866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Attach the 3 claws and 5 clips to install the side panel.
    2. Install the rear seat 3 point type belt floor anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    3. Install the seatback hinge with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    4. Install the 2 hooks with the 2 bolts.
  14. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 7: Installing Hooks With Bolts
    G04229867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL DECK TRIM COVER REAR
    1. Attach the 4 clips to install the trim cover.
    2. Install the 2 clips.
  16. INSTALL BACK DOOR WEATHERSTRIP
  17. INSTALL REAR SEATBACK ASSEMBLY LH (See  INSTALLATION  )
  18. INSTALL REAR SEATBACK ASSEMBLY RH (See  INSTALLATION  )
  19. INSTALL REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY
    Fig 8: Attaching Clips
    G04229868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL DECK FLOOR BOX RH
  21. INSTALL DECK FLOOR BOX LH
  22. INSTALL NO. 2 DECK BOARD
  23. INSTALL NO. 1 DECK BOARD
  24. INSTALL CENTER PILLAR GARNISH UPPER RH
    1. Attach the claw and clip to install the center pillar garnish.
    2. Install the front seat outer belt shoulder anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    3. Install the shoulder anchor cover.
  25. INSTALL CENTER PILLAR GARNISH UPPER LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 9: Installing Center Pillar Garnish
    G04229869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL CENTER PILLAR GARNISH LOWER RH
    1. Install the center pillar garnish.
    2. Install the front seat outer belt floor anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    3. Install the floor anchor cover.
  27. INSTALL CENTER PILLAR GARNISH LOWER LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 10: Installing Center Pillar Garnish
    G04229870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL REAR DOOR OPENING TRIM RH
  29. INSTALL REAR DOOR OPENING TRIM LH
  30. INSTALL FRONT DOOR OPENING TRIM RH
  31. INSTALL FRONT DOOR OPENING TRIM LH
  32. INSTALL COWL SIDE TRIM BOARD RH
    1. Attach the 2 clips to install the trim board.
  33. INSTALL COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 11: Installing Trim Board
    G04229871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL REAR DOOR SCUFF PLATE RH
    1. Attach the 2 claws and 2 clips to install the scuff plate.
  35. INSTALL REAR DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 12: Attaching Claws And Clips
    G04229872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT DOOR SCUFF PLATE RH
    1. Attach the 2 claws and 3 clips to install the scuff plate.
  37. INSTALL FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures described for the RH side.

  38. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

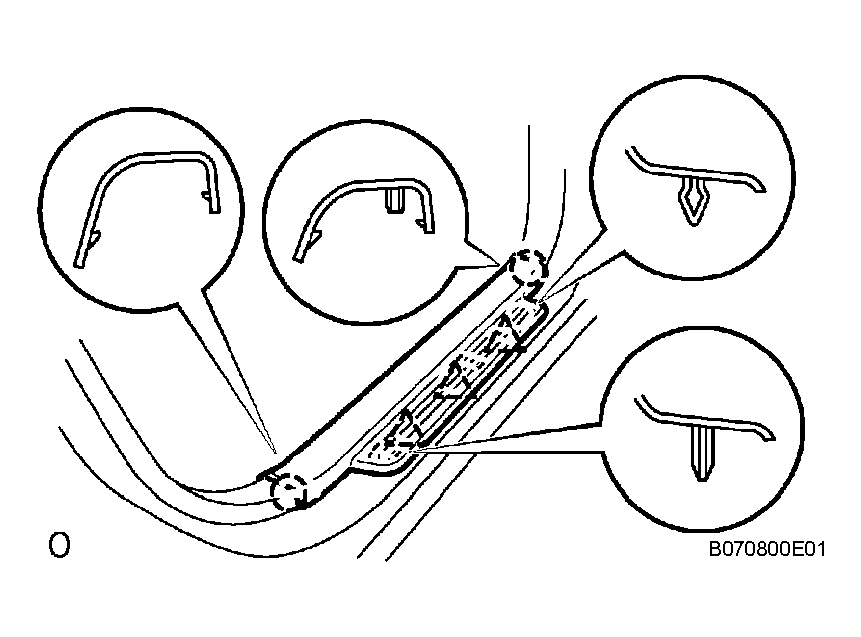

    Fig 13: Installing Front Door Scuff Plate LH
    G04229873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
