Components (2005/12- )

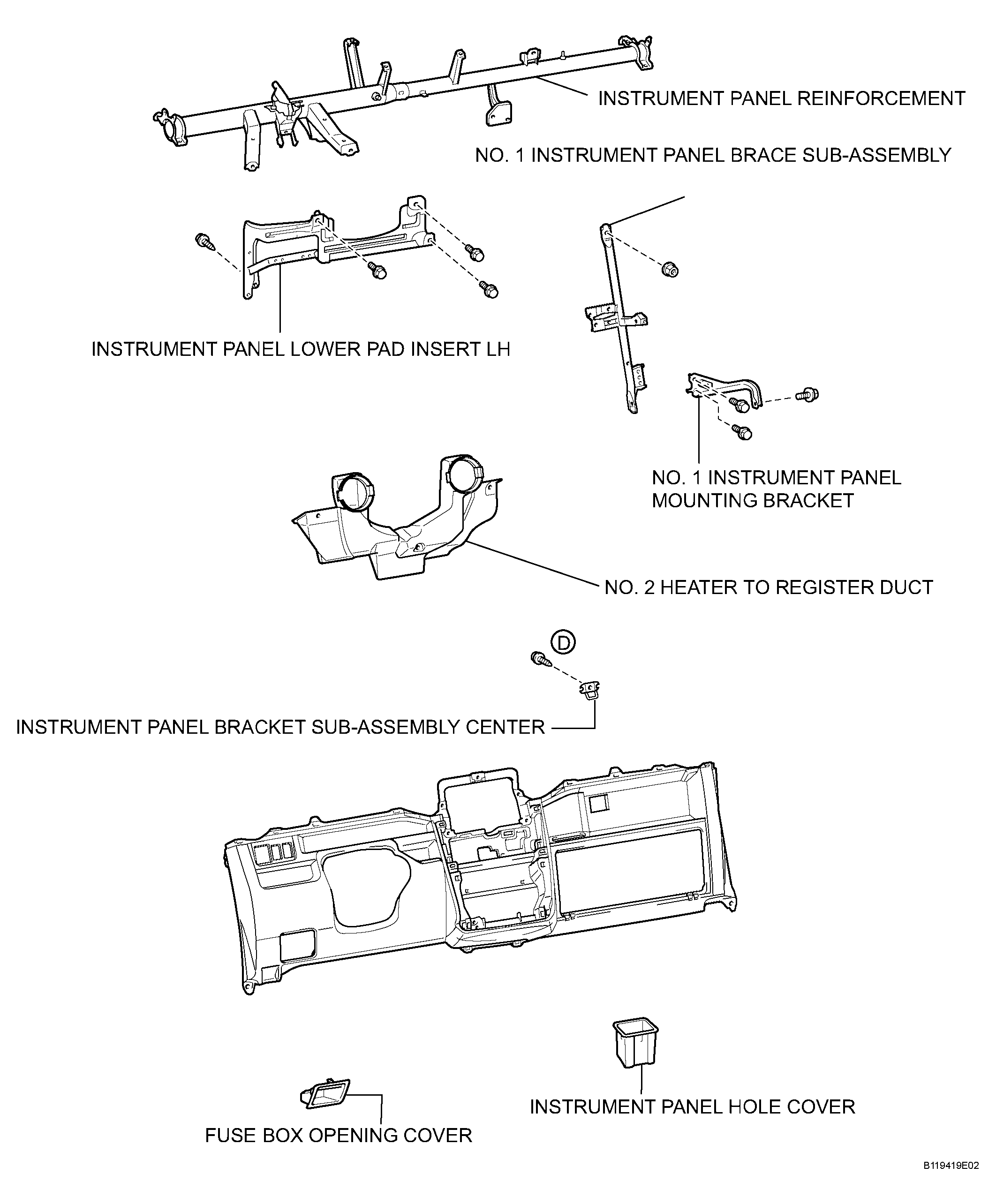

Fig 1: Identifying Lower Instrument Panel Components (3 Of 5)
G04229527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

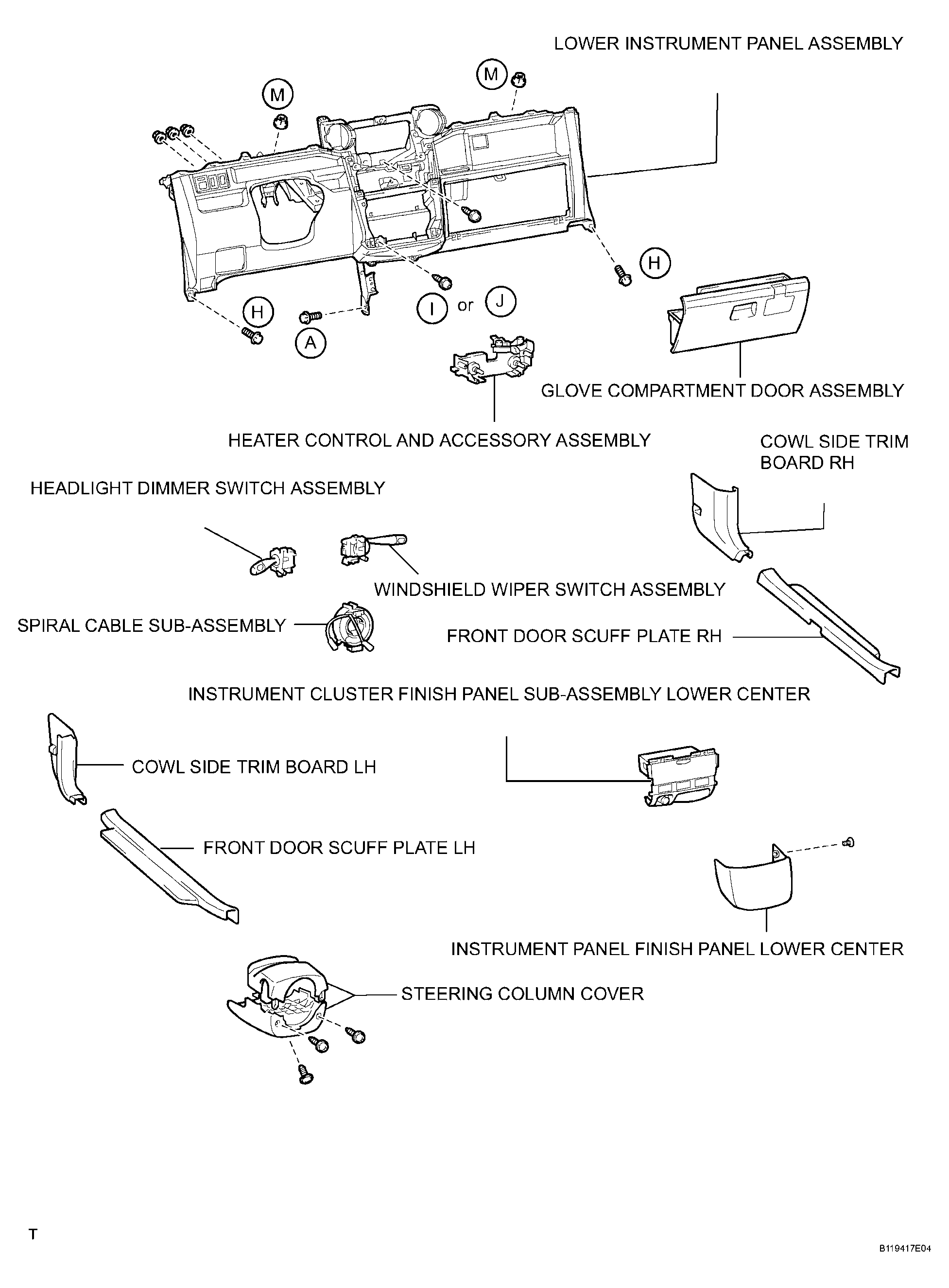

Fig 2: Identifying Lower Instrument Panel Components (4 Of 5)
G04229528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Lower Instrument Panel Components (5 Of 5)
G04229529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
