Components (2005/07-2005/12)

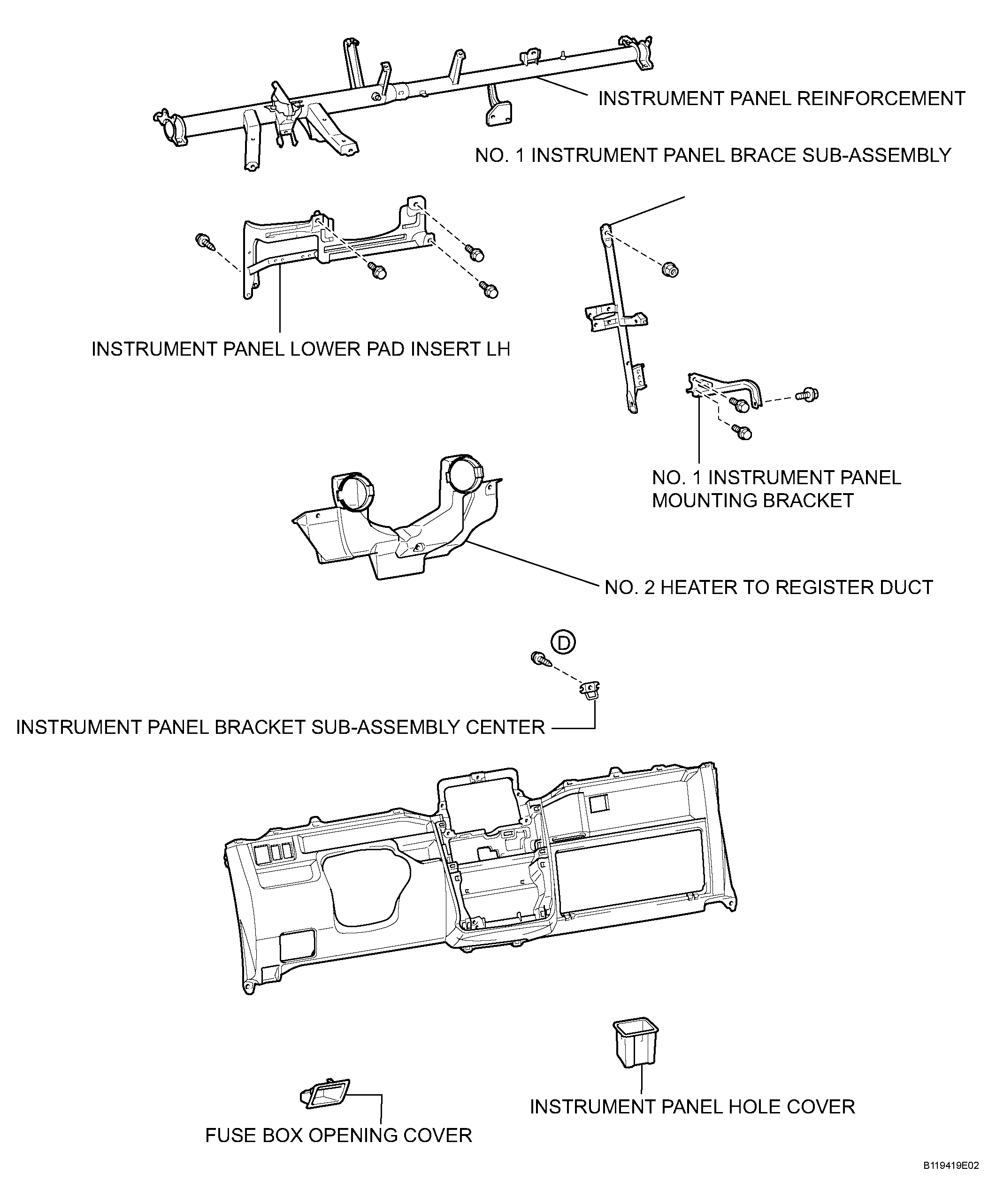

Fig 1: Identifying Lower Instrument Panel Components (1 Of 5)
G04229525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

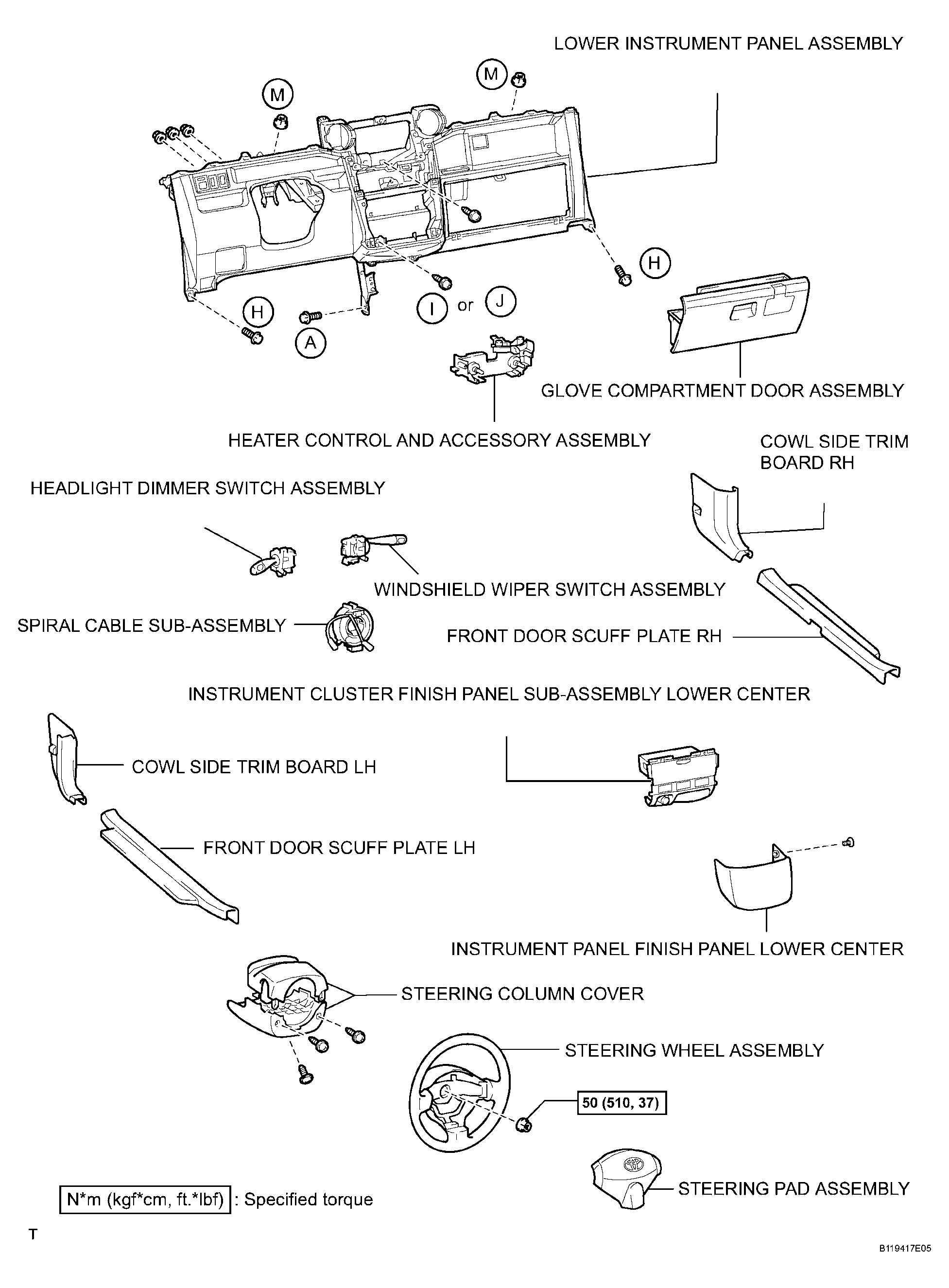

Fig 2: Identifying Lower Instrument Panel Components (2 Of 5)
G04229526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
