Inspection Procedure

HINT:

When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.

1. READ VALUE OF INTELLIGENT TESTER (VEHICLE SPEED SIGNAL)*1
   1. Check the DATA LIST for proper functioning of the vehicle speed signal.

      Skid control ECU with actuator

      DATA LIST - SKID CONTROL ECU WITH ACTUATOR



      Item	Measurement Item / Range (Display)	Normal Condition	Diagnostic Note
      VEHICLE SPD	Wheel speed sensor (FR) reading / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Actual vehicle Speed	indicator on speedometer

      OK:

      Vehicle speed display on the tester is almost the same as the actual vehicle speed.

   NG : GO TO  VEHICLE STABILITY CONTROL SYSTEM

   OK : Go to Next Step

2. CHECK (COMBINATION METER - SKID CONTROL ECU WITH ACTUATOR)*2
   1. Disconnect the C6 meter connector.
   2. Disconnect the S3 ECU connector.
   3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Specified Condition
      C6-28 - S3-12 (SP1)	Below 1 Ω
      C6-28 - Body ground	10 kΩ or higher

   NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

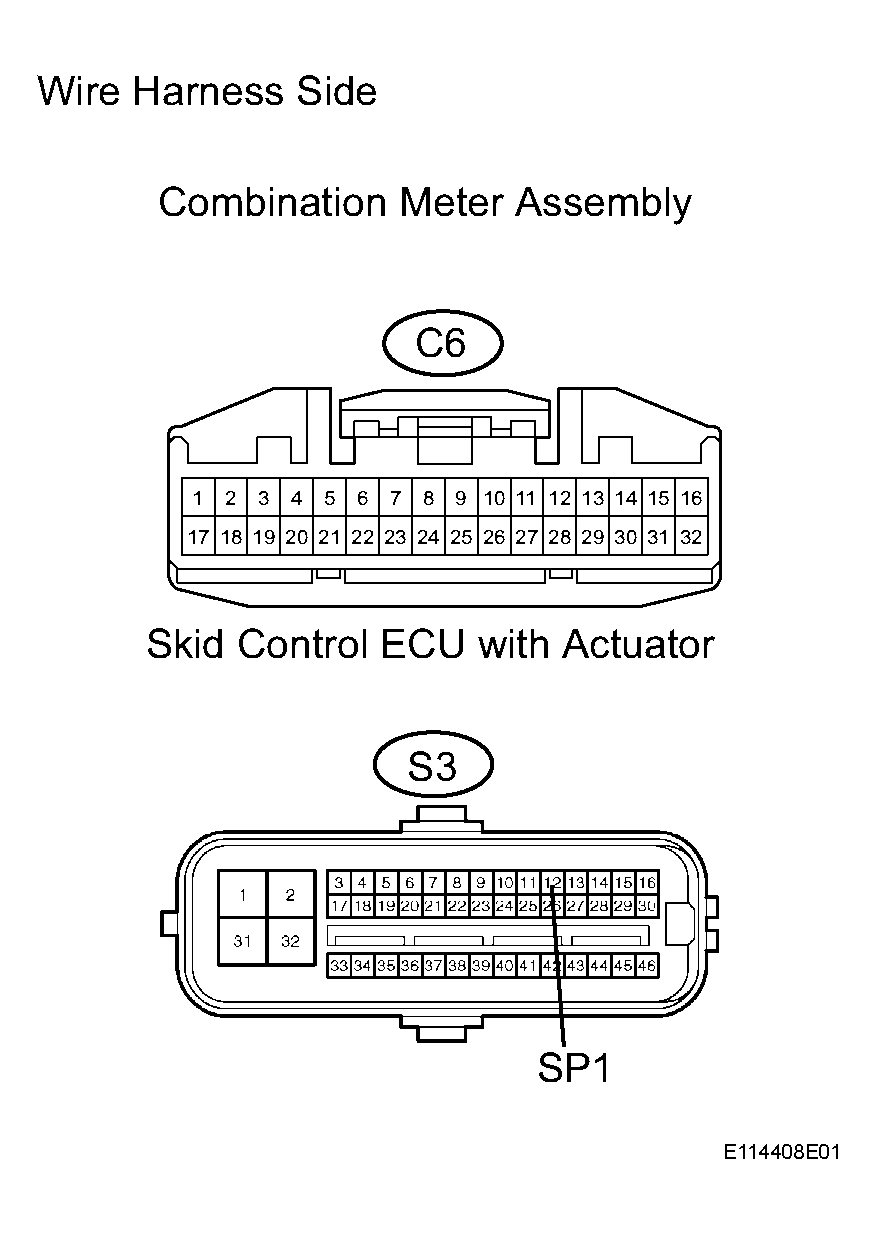

   Fig 1: Identifying C6 Meter And S3 ECU Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK : Go to Next Step

3. CHECK COMBINATION METER ASSEMBLY
   1. Measure the voltage of the connector.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Condition	Specified Condition
      C6-28 - Body ground	Ignition switch ON	10 to 14 V
      	Ignition switch OFF	Below 1 V

   NG : REPLACE COMBINATION METER ASSEMBLY

   Fig 2: Checking Combination Meter Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK : REPLACE BRAKE ACTUATOR ASSEMBLY
