Inspection Procedure
- CHECK ILLUMINATION OPERATION
- Operate the rheostat and check that the amount of light for the combination meter assembly, the radio and player, the integration control and A/T shift lever.
Result
RESULT REFERENCEResult Proceed to All illumination does not change A Combination meter illumination does not change B Radio and player illumination does not change C Integration control and panel illumination does not change D A/T shift lever illumination does not change E
B : Go to step 6
C : Go to step 7
D : Go to step 8
E : Go to step 9
A : Go to next step
- Operate the rheostat and check that the amount of light for the combination meter assembly, the radio and player, the integration control and A/T shift lever.
- INSPECT FUSE (TAIL)
- Remove the TAIL fuse from the instrument panel junction block assembly.
- Measure the resistance of the fuse.
Standard resistance:
Below 1 Ω
NG : REPLACE FUSE
OK : Go to Next Step
- INSPECT COMBINATION SWITCH ASSEMBLY
- Remove the combination switch.
- Measure the resistance of the switch.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 10 (T1) - 13 (B1) TAIL Below 1 Ω HEAD OFF 10 kΩ or higher
NG : REPLACE COMBINATION SWITCH ASSEMBLY
OK : Go to Next Step
- CHECK WIRE HARNESS (COMBINATION SWITCH - BATTERY)
- Disconnect the C8 switch connector.
- Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition C8-13 - Body ground 10 to 14 V
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
OK : Go to Next Step
- CHECK WIRE HARNESS (LIGHT CONTROL RHEOSTAT - BODY GROUND)
- Disconnect the R6 rheostat connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition R6-5 - Body ground Below 1 Ω
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
OK : REPLACE LIGHT CONTROL RHEOSTAT

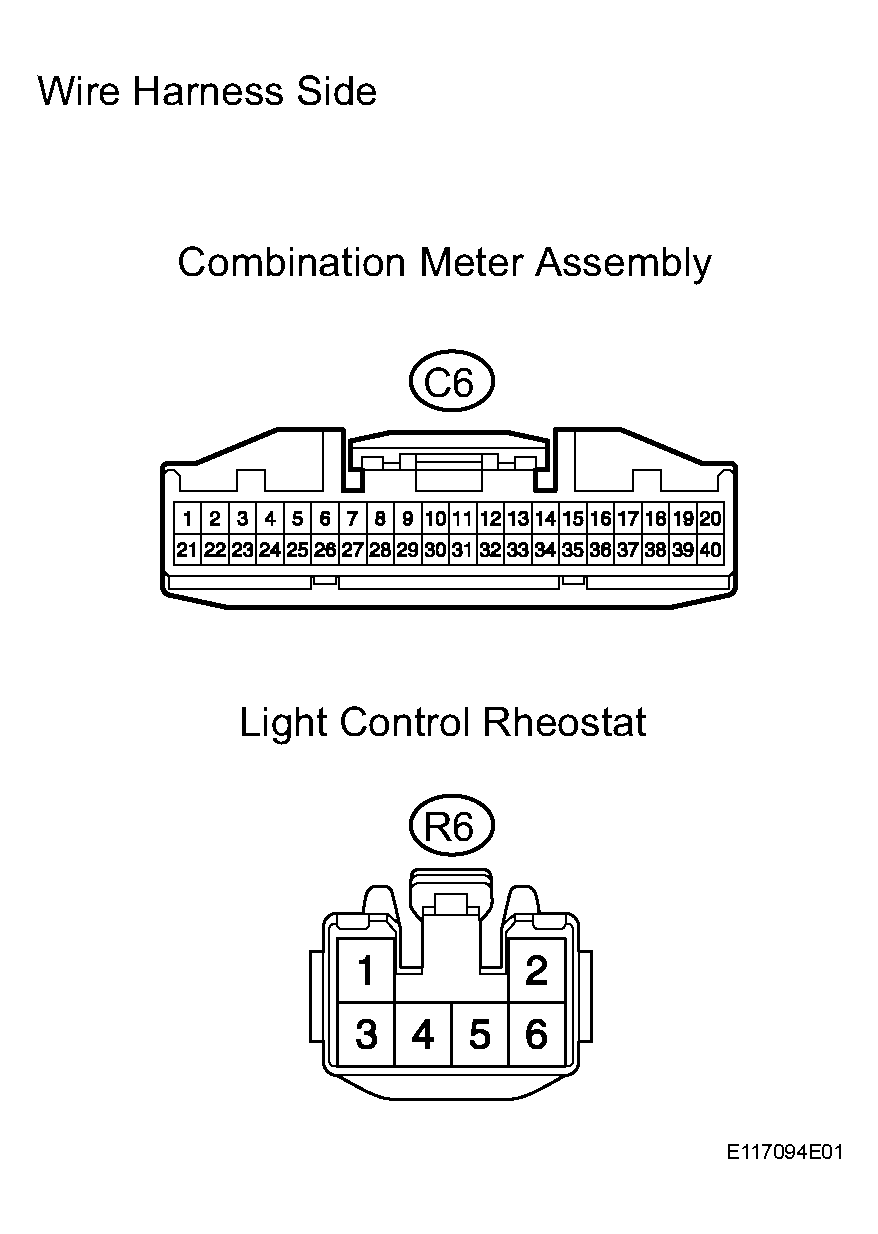

- CHECK WIRE HARNESS (COMBINATION METER - RHEOSTAT AND BATTERY)
- Disconnect the C6 meter connector.
- Disconnect the R6 rheostat connector.
- Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition C6-26 - Body ground Light control switch is TAIL or HEAD 10 to 14 V - Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition C6-27 - R6-3 Below 1 Ω
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK : REPLACE COMBINATION SWITCH ASSEMBLY

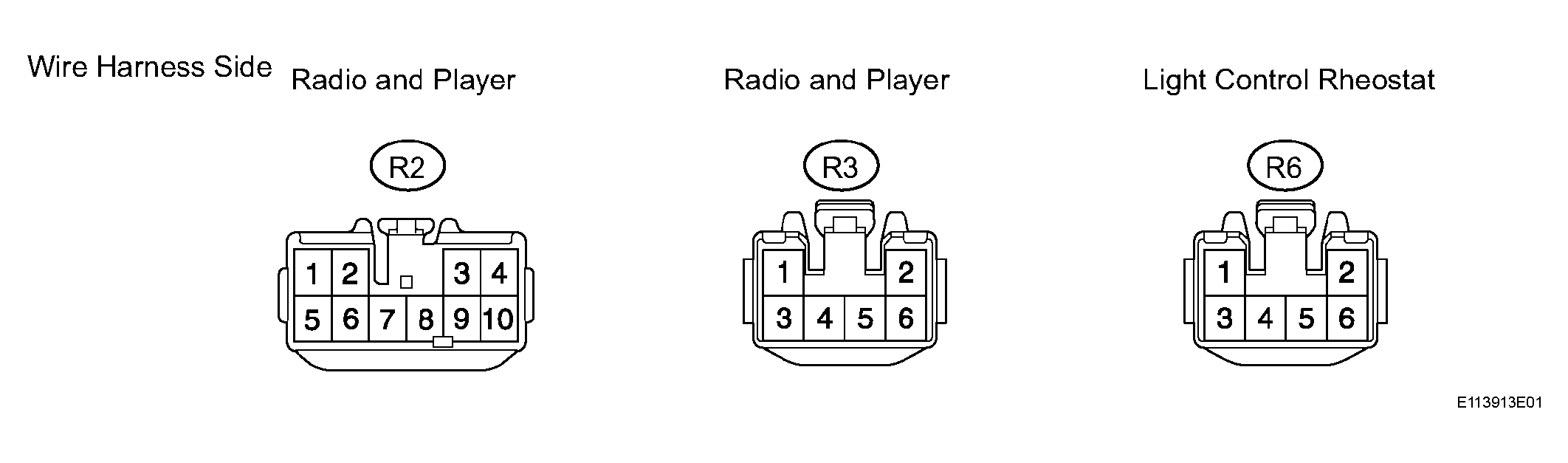

- CHECK WIRE HARNESS (RADIO AND PLAYER - RHEOSTAT AND BATTERY)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the R2 and R3 radio and player connectors.
- Disconnect the R6 rheostat connector.
- Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition R2-10 - Body ground 10 to 14 V - Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition R3-5 - R6-6 Below 1 Ω
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
OK : REPLACE RADIO AND PLAYER

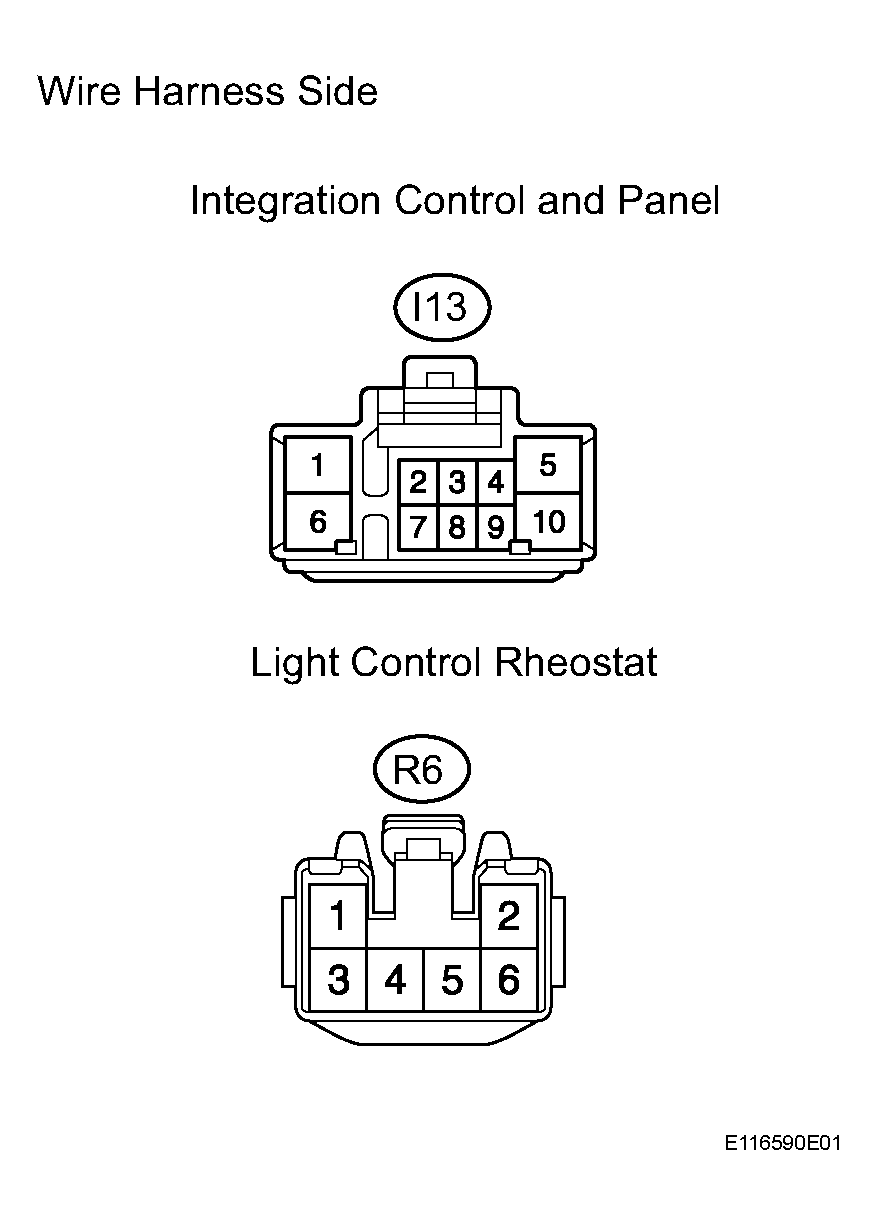

- CHECK WIRE HARNESS (INTEGRATION CONTROL AND PANEL - RHEOSTAT AND BATTERY)
- Disconnect the I13 panel connector.
- Disconnect the R6 rheostat connector.
- Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition I13-4 - Body ground 10 to 14 V - Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition I13-5 - R6-6 Below 1 Ω
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK : REPLACE INTEGRATION CONTROL AND PANEL

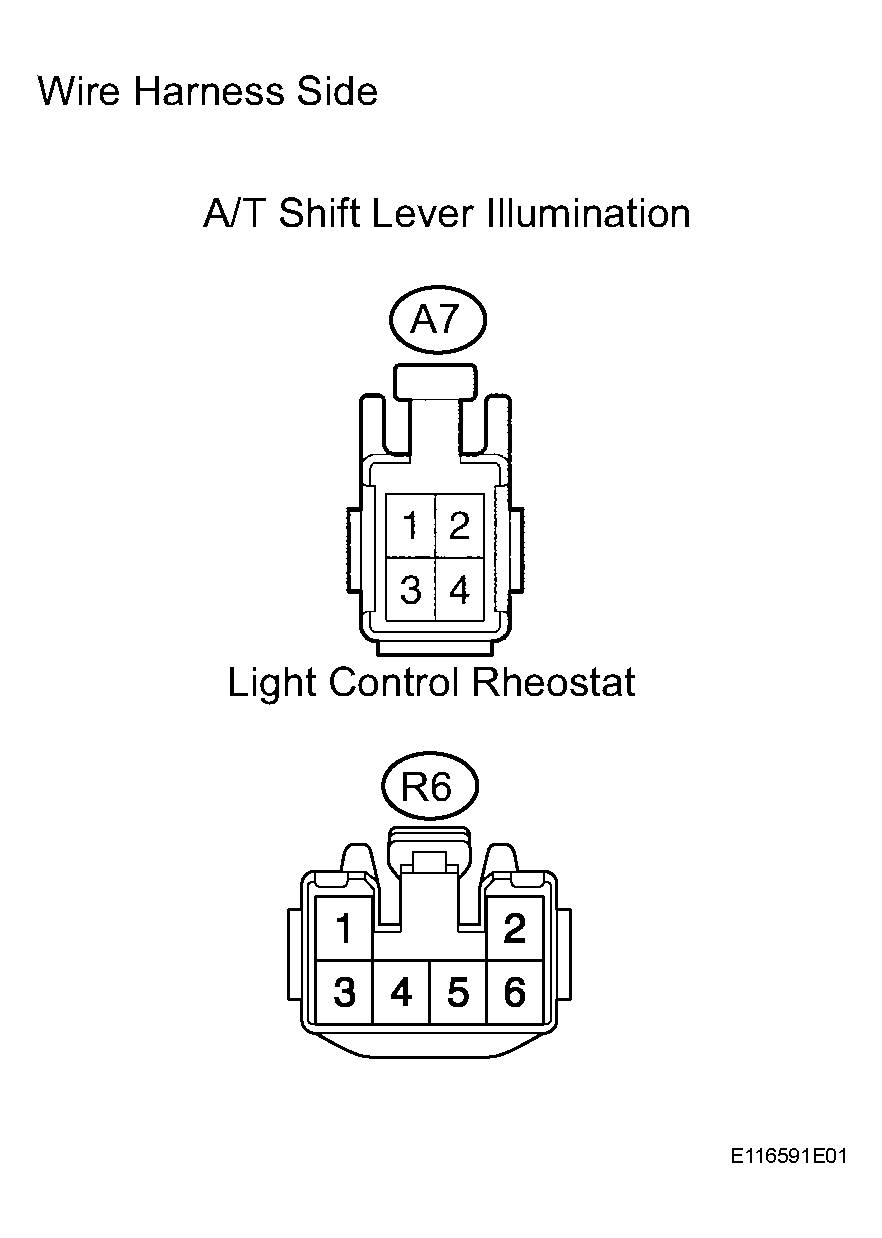

- CHECK WIRE HARNESS (A/T SHIFT LEVER ILLUMINATION - RHEOSTAT AND BATTERY)
- Disconnect the A7 A/T shift lever connector.
- Disconnect the R6 rheostat connector.
- Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition A7-1 - Body ground 10 to 14 V - Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition A7-3 - R6-6 Below 1 Ω
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK : REPLACE A/T SHIFT LEVER ILLUMINATION
