Inspection Procedure

1. Remove the fuel sender gauge.
2. Connect an ohmmeter to terminals 2 and 3.
3. Measure the resistance of the sender gauge.

   Standard resistance

   FLOAT POSITION SPECIFIED CONDITION



   Float Level	Float Position	Specified Condition
   F	80.8 to 86.6 mm (3.181 to 3.417 in.)	3.0 to 5.0 Ω
   1/2	15.9 to 21.9 mm (0.626 to 0.862 in.)	52.0 to 58.0 Ω
   E	52.2 to 58.2 mm (2.055 to 2.291 in.)	106.0 to 108.0 Ω

NG : REPLACE FUEL SENDER GAUGE ASSEMBLY

Fig 1: Inspecting Fuel Sender Gauge Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Disconnect the F14 gauge connector.
2. Disconnect the C6 meter connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   F14-2 - C6-31	Below 1 Ω
   F14-3 - Body ground

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

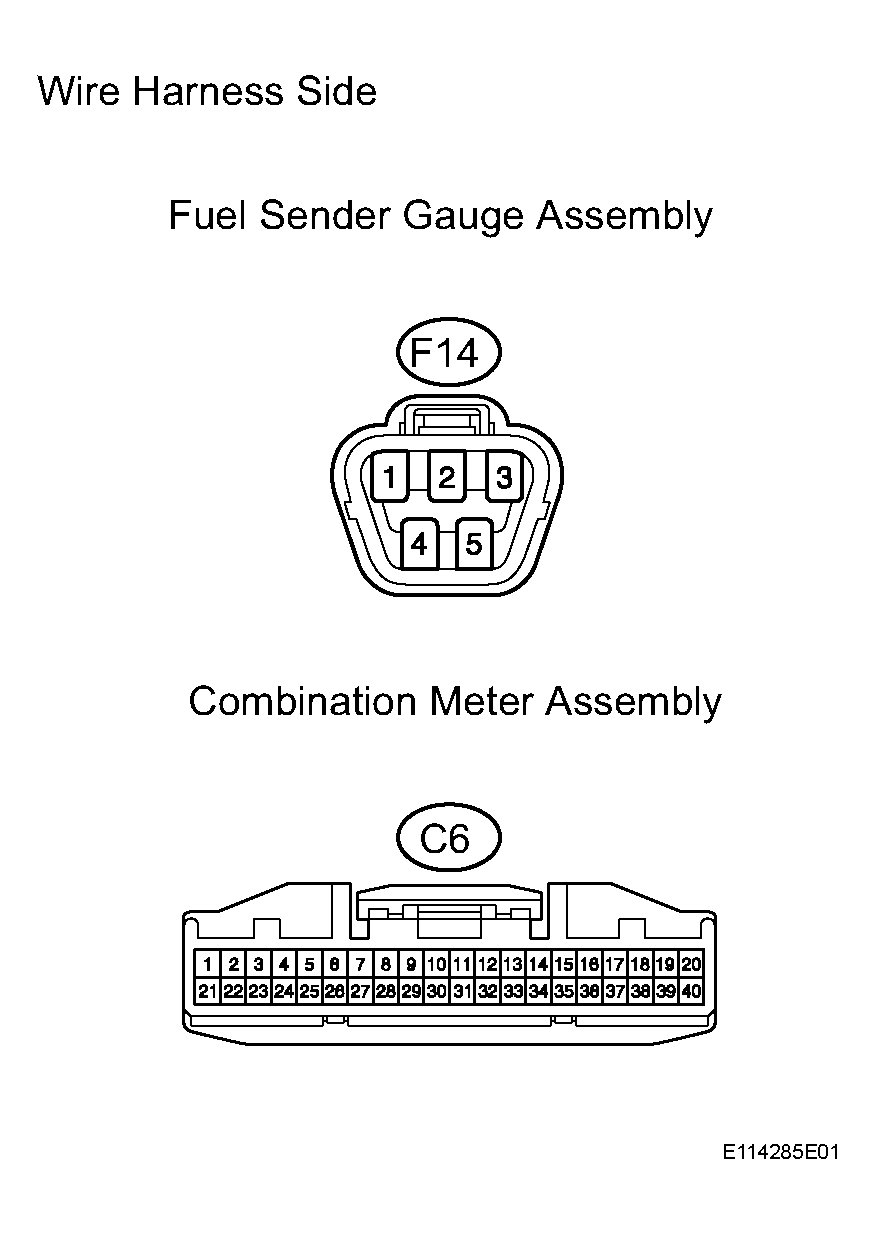

Fig 2: Identifying F14 Gauge And C6 Meter Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE COMBINATION METER ASSEMBLY
