Home >> Scion >> 2006 >> xB Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter >> Meter / Gauge System >> Entire Combination Meter does not Operate >> Wiring Diagram

Entire Combination Meter does not Operate: Wiring Diagram

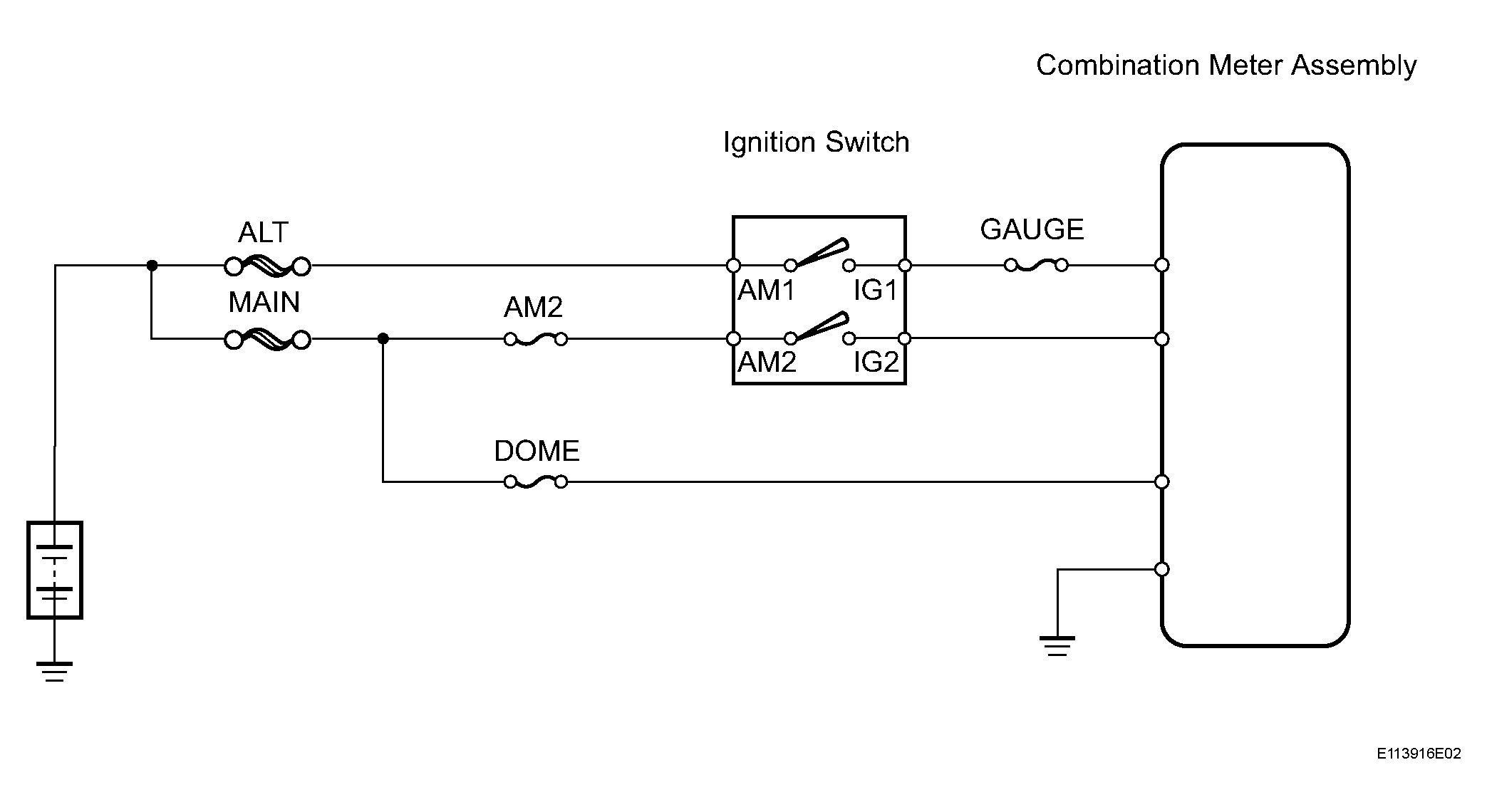

Fig 1: Entire Combination Meter Does Not Operate - Wiring Diagram

G04229328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
