Front Passenger Airbag Assembly: Removal

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see AIRBAG SYSTEM  ).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  3. DISCONNECT PASSENGER AIRBAG CONNECTOR
    1. Disconnect the clamp.
    2. Disconnect the front passenger airbag connector.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
  4. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the instrument panel (see REMOVAL ).
      Fig 1: Disconnecting Passenger Airbag Connector
      G04158632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
    1. Remove the 2 nuts.
      Fig 2: Removing Nuts
      G04158633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 10 claws and remove the front passenger airbag.

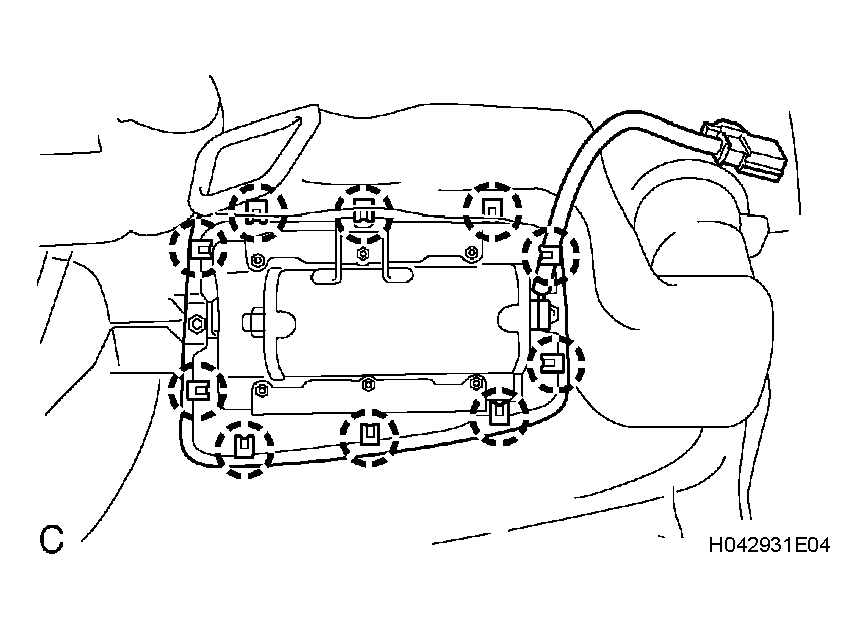

      Fig 3: Detaching Claws
      G04158634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
