Terminals Of Ecu

  1. CENTER AIRBAG SENSOR ASSEMBLY (w/o Side Airbag)

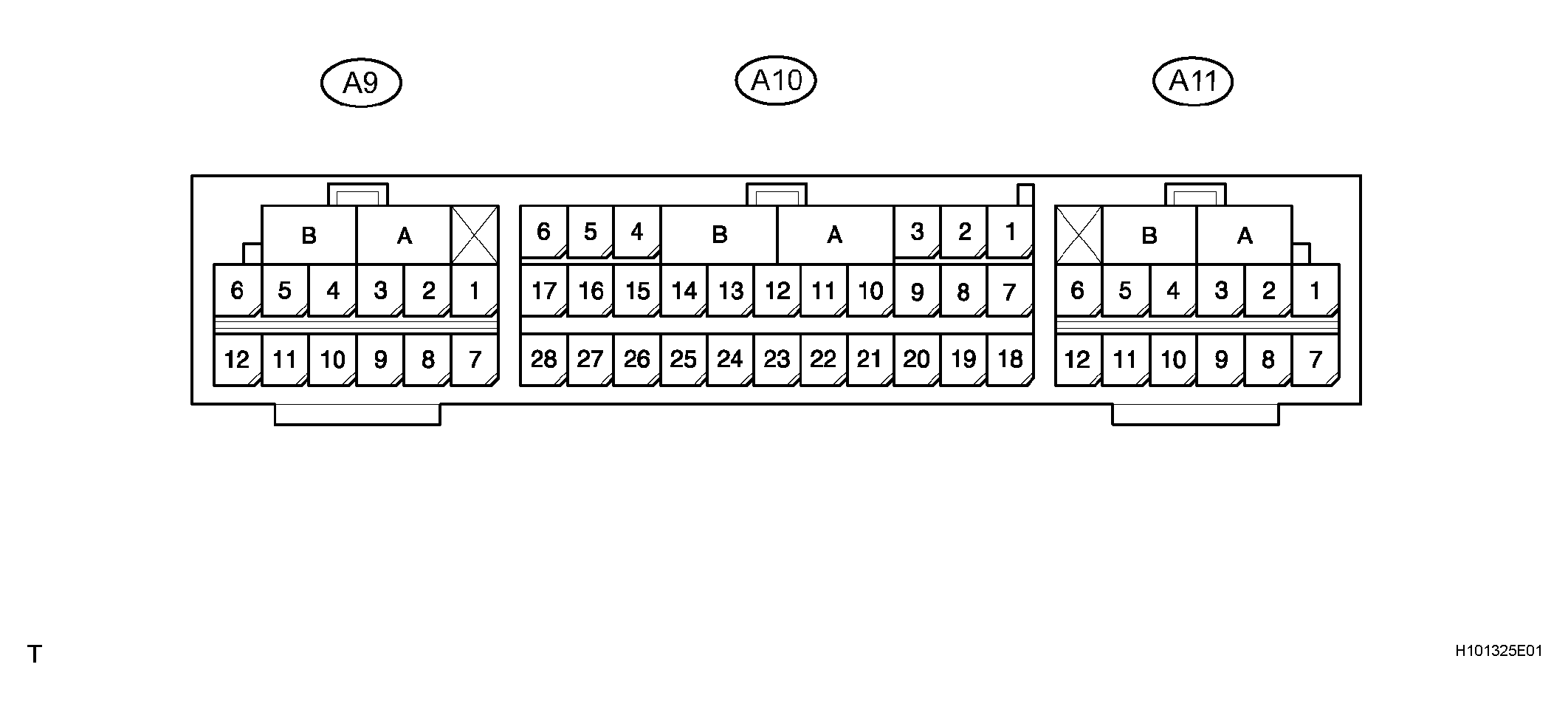

    Fig 1: Identifying ECU Terminals (W/O Side Airbag)
    G04158315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL DESTINATION

    Terminal No. Symbol Destination
    A - (Electrical Connector Check Mechanism)
    B - (Electrical Connector Check Mechanism)
    A10-3 LA Combination Meter Assembly (SRS Warning Light)
    A10-5 IG2 AM2 Fuse
    A10-7 P2- Front Passenger Airbag Assembly (P Squib, 2nd step)
    A10-8 P2+ Front Passenger Airbag Assembly (P Squib, 2nd step)
    A10-9 +SR Front Airbag Sensor RH
    A10-10 P+ Front Passenger Airbag Assembly (P Squib)
    A10-11 P- Front Passenger Airbag Assembly (P Squib)
    A10-12 SIL DLC3
    A10-13 D- Steering Pad Assembly (D Squib)
    A10-14 D+ Steering Pad Assembly (D Squib)
    A10-15 +SL Front Airbag Sensor LH
    A10-16 D2+ Steering Pad Assembly (D Squib, 2nd step)
    A10-17 D2- Steering Pad Assembly (D Squib, 2nd step)
    A10-19 TC DLC3
    A10-20 -SR Front Airbag Sensor RH
    A10-23 GSW2 ECM
    A10-26 -SL Front Airbag Sensor LH
    A10-27 E1 Ground
    A10-28 E2 Ground
    A9-1 PL- Front Seat Outer Belt Assembly LH (Squib)
    A9-2 PL+ Front Seat Outer Belt Assembly LH (Squib)
    A9-3 LSP+ Seat Position Airbag Sensor
    A9-7 LBE- Front Seat Inner Belt Assembly LH
    A9 A11 A10
    A9-8 LSP- Seat Position Airbag Sensor
    A9-11 LBE+ Front Seat Inner Belt Assembly LH
    A11-5 PR+ Front Seat Outer Belt Assembly RH (Squib)
    A11-6 PR- Front Seat Outer Belt Assembly RH (Squib)
    A11-8 RBE+ Front Seat Inner Belt Assembly RH
    A11-12 RBE- Front Seat Inner Belt Assembly RH
  2. CENTER AIRBAG SENSOR ASSEMBLY (w/ Side Airbag)

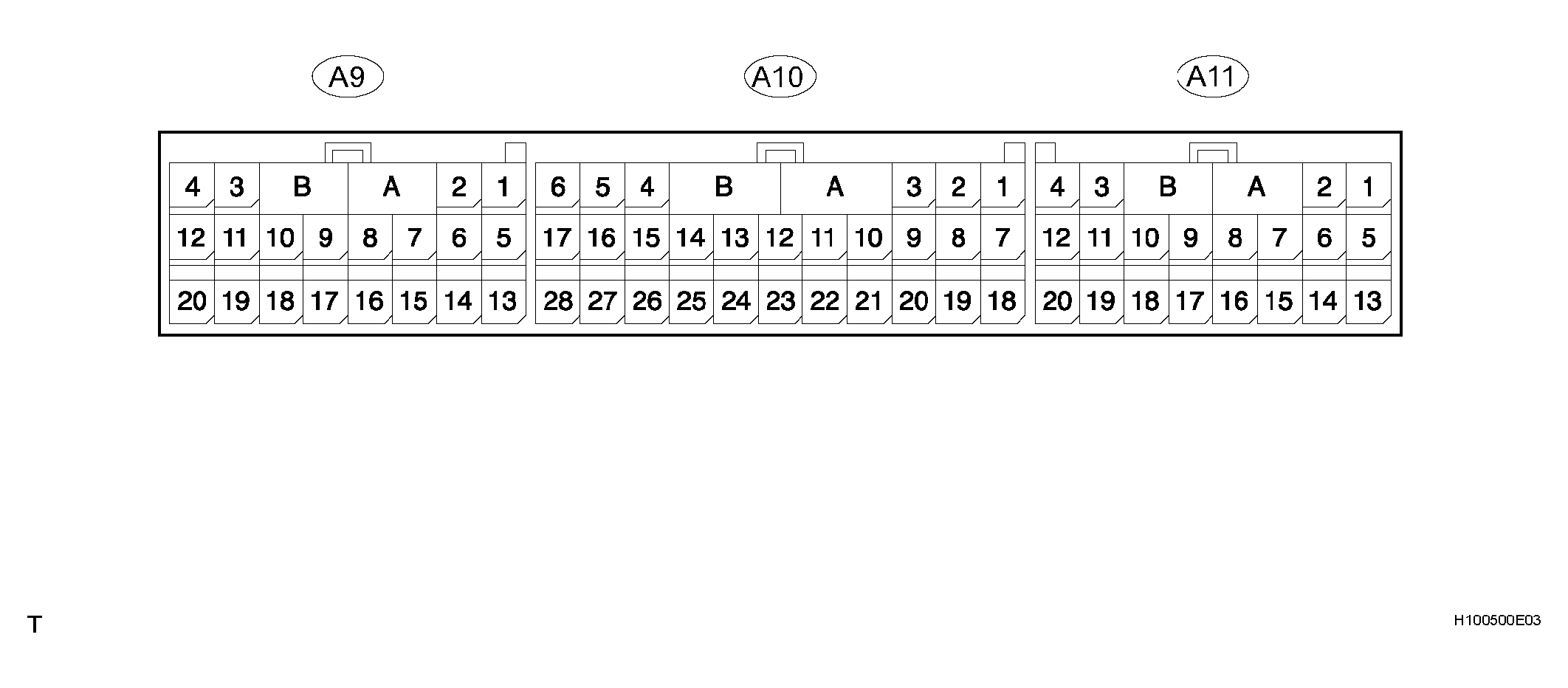

    Fig 2: Identifying ECU Terminal (W/ Side Airbag)
    G04158316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL DESTINATION

    Terminal No. Symbol Destination
    A - (Electrical Connector Check Mechanism)
    B - (Electrical Connector Check Mechanism)
    A10-3 LA Combination Meter Assembly (SRS Warning Light)
    A10-5 IG2 AM2 Fuse
    A10-7 P2- Front Passenger Airbag Assembly (P Squib, 2nd step)
    A10-8 P2+ Front Passenger Airbag Assembly (P Squib, 2nd step)
    A10-9 +SR Front Airbag Sensor RH
    A10-10 P+ Front Passenger Airbag Assembly (P Squib)
    A10-11 P- Front Passenger Airbag Assembly (P Squib)
    A10-12 SIL DLC3
    A10-13 D- Steering Pad Assembly (D Squib)
    A10-14 D+ Steering Pad Assembly (D Squib)
    A10-15 +SL Front Airbag Sensor LH
    A10-16 D2+ Steering Pad Assembly (D Squib, 2nd step)
    A10-17 D2- Steering Pad Assembly (D Squib, 2nd step)
    A10-19 TC DLC3
    A10-20 -SR Front Airbag Sensor RH
    A10-23 GSW2 ECM
    A10-26 -SL Front Airbag Sensor LH
    A10-27 E1 Ground
    A9 A10 A11
    A10-28 E2 Ground
    A9-2 LBE- Front Seat Inner Belt Assembly LH
    A9-3 LSP- Seat Position Airbag Sensor
    A9-4 LSP+ Seat Position Airbag Sensor
    A9-7 PL- Front Seat Outer Belt Assembly LH (Squib)
    A9-8 PL+ Front Seat Outer Belt Assembly LH (Squib)
    A9-9 ICL+ Curtain Shield Airbag Assembly LH (Squib)
    A9-10 ICL- Curtain Shield Airbag Assembly LH (Squib)
    A9-11 SFL- Front Seat Side Airbag Assembly LH (Squib)
    A9-12 SFL+ Front Seat Side Airbag Assembly LH (Squib)
    A9-16 BBL+ Side Airbag Sensor Assembly LH
    A9-18 BBL- Side Airbag Sensor Assembly LH
    A9-19 LBE+ Front Seat Inner Belt Assembly LH
    A11-3 RBE- Front Seat Inner Belt Assembly RH
    A11-5 SFR+ Front Seat Side Airbag Assembly RH (Squib)
    A11-6 SFR- Front Seat Side Airbag Assembly RH (Squib)
    A11-7 ICR- Curtain Shield Airbag Assembly RH (Squib)
    A11-8 ICR+ Curtain Shield Airbag Assembly RH (Squib)
    A11-9 PR+ Front Seat Outer Belt Assembly RH (Squib)
    A11-10 PR- Front Seat Outer Belt Assembly RH (Squib)
    A11-14 RBE+ Front Seat Inner Belt Assembly RH
    A11-15 BBR- Side Airbag Sensor Assembly RH
    A11-17 BBR+ Side Airbag Sensor Assembly RH
