DTC Check / Clear

CHECK DTC (USING SST CHECK WIRE)
1. Check the DTCs (present trouble code).
  1. Turn the ignition switch to the ON position, and wait for approximately 60 seconds.
  2. Using SST, connect terminals TC and CG of the DLC3.
    SST 09843-18040

    NOTE: Connect the terminals to the correct positions to avoid a malfunction.
2. Output the DTCs (past trouble code).
  1. Using SST, connect terminals TC and CG of the DLC3.
    SST 09843-18040

    NOTE: Connect the terminals to the correct positions to avoid a malfunction.
  2. Turn the ignition switch to the ON position, and wait for approximately 60 seconds.

    Fig 1: Identifying DLC3 Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Read the DTCs.
  1. Read the blinking patterns of the DTCs.
    Examples of the blinking patterns for a normal system code and DTCs 11 and 31 are shown in the illustration.
    - Normal system code indication (w/o past trouble code)
      The light blinks twice per second.
    - Normal system code indication (w/ past trouble code)
      When the past trouble code is stored in the center airbag sensor assembly, the light blinks only once per second.
    - Trouble code indication
      The first blinking pattern indicates the first DTC. If there is more than 1 code, there will be a 2.5-second pause between each code.

      After all codes are shown, there will be a 4.0- second pause, and they all will be repeated.
    HINT:
    - If 2 or more malfunctions are found, the indication begins with the smaller numbered code.
    - If DTCs are indicated without connecting the terminals, proceed to the "TC and CG Terminal Circuit" (see TC AND CG TERMINAL CIRCUIT ).

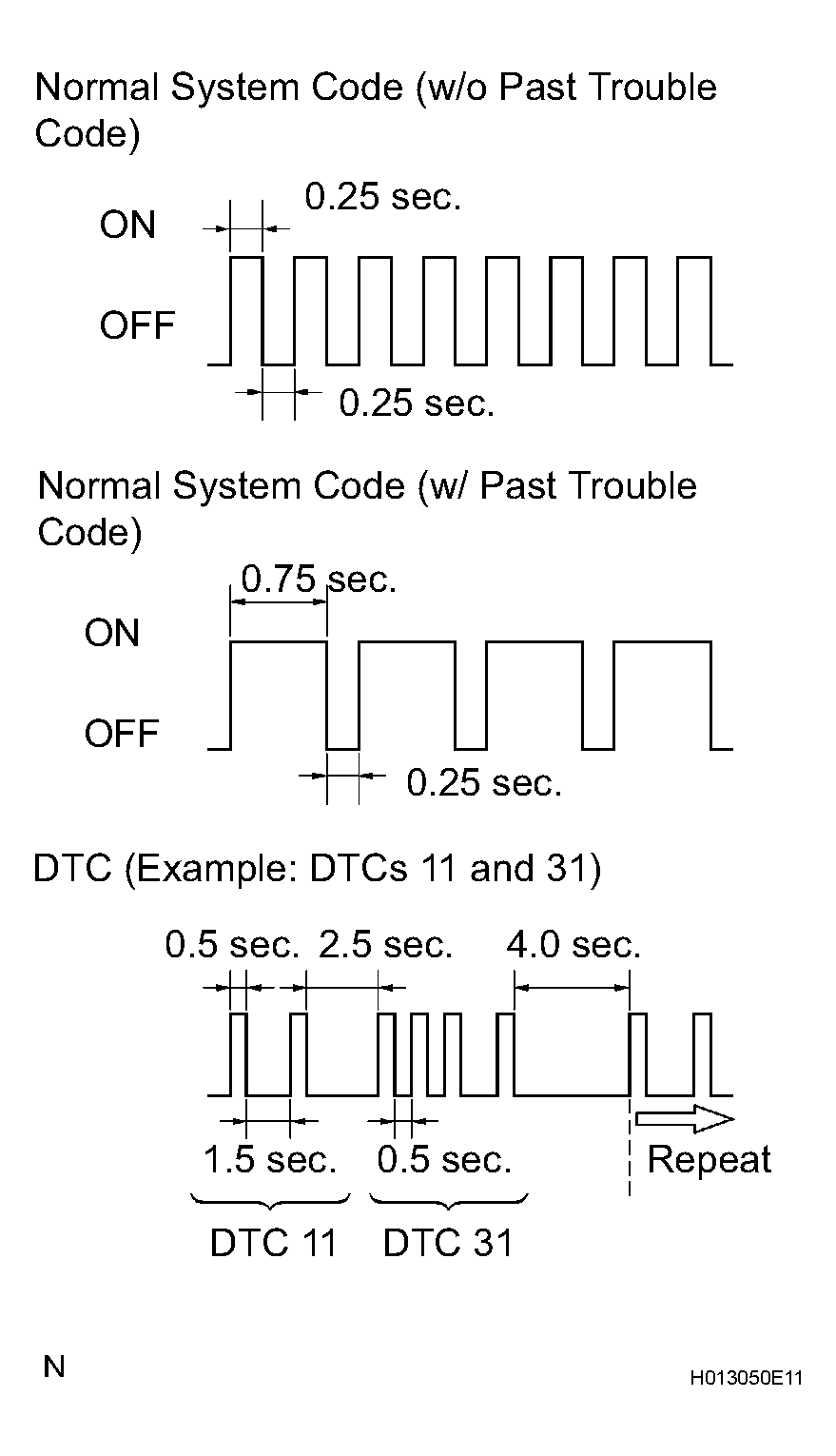

      Fig 2: Identifying DTC Blinking Pattern
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC (USING SST CHECK WIRE)
1. Clear the DTCs.
  1. When the ignition switch is turned OFF, the DTCs are cleared.
    HINT:

    Depending on the DTC, the code may not be cleared by turning OFF the ignition switch. In this case, proceed to the next procedure.
  2. Using SST, connect terminals TC and CG of the DLC3, and then turn the ignition switch to the ON position.
    SST 09843-18040
  3. Disconnect terminal TC of the DLC3 within 3 to 10 seconds after the DTCs are output, and check if the SRS warning light comes on after 3 seconds.
  4. Within 2 to 4 seconds after the SRS warning light comes on, connect terminals TC and CG of the DLC3.
  5. The SRS warning light should go off within 2 to 4 seconds after connecting terminals TC and CG of the DLC3. Then disconnect terminal TC within 2 to 4 seconds after the SRS warning light goes off.
  6. The SRS warning light comes on again within 2 to 4 seconds after disconnecting terminal TC. Then, reconnect terminals TC and CG within 2 to 4 seconds after the SRS warning light comes on.
  7. Check if the SRS warning light goes off within 2 to 4 seconds after connecting terminals TC and CG of the DLC3, and the normal system code is output within 1 second after the SRS warning light goes off.
    If DTCs are not cleared, repeat this procedure until the codes are cleared.

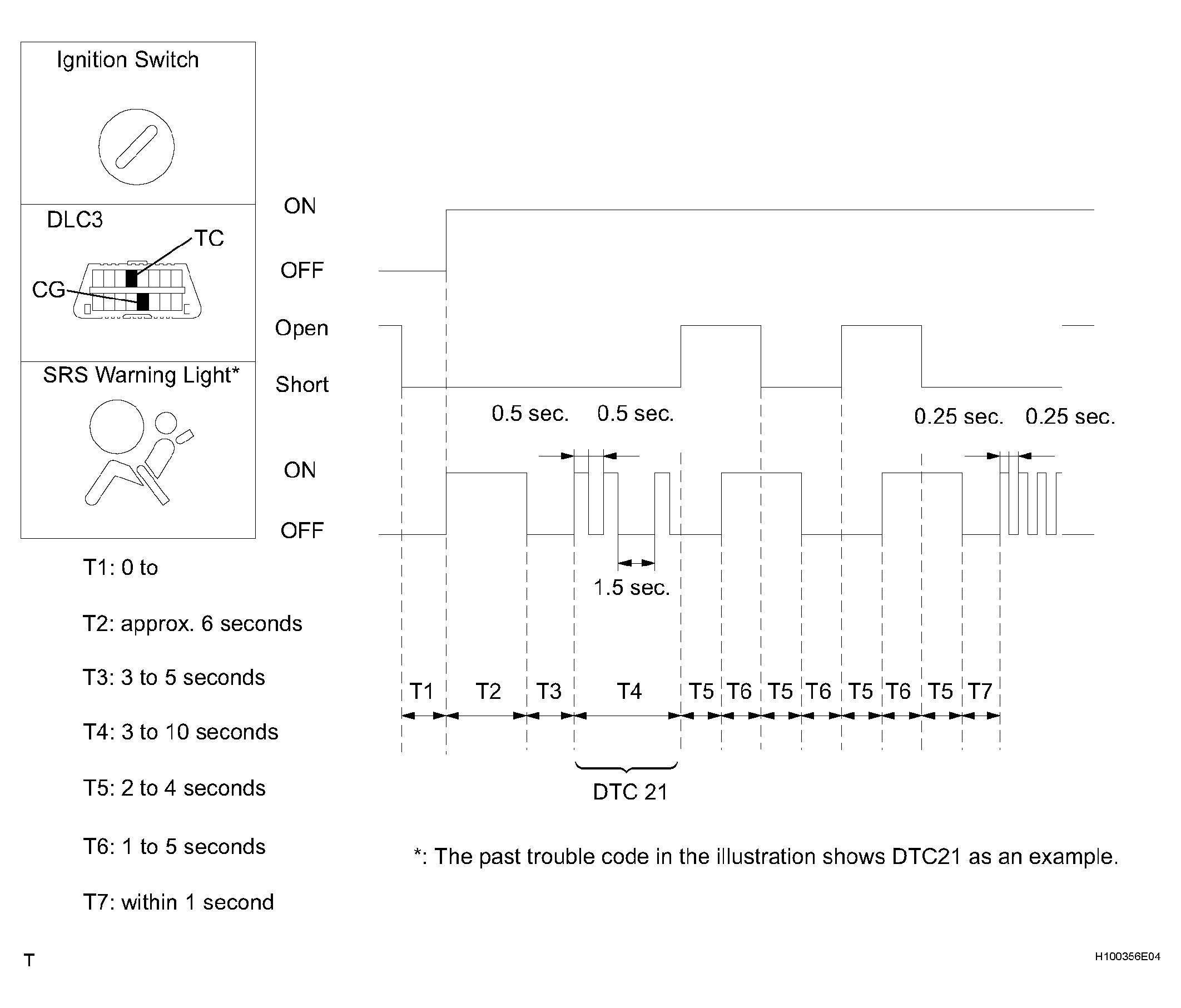

    Fig 3: Identifying SRS Warning Light Blinking Pattern
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC CHECK (USING INTELLIGENT TESTER)
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch to the ON position.
3. Read the DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
CLEAR DTC (USING INTELLIGENT TESTER)
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch to the ON position.
3. Clear the DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.

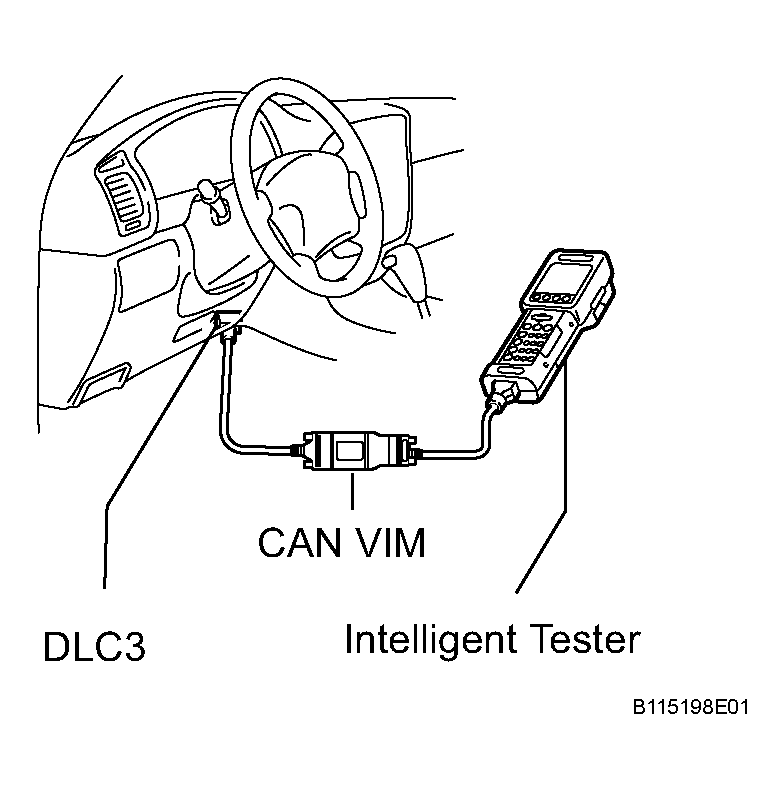

  Fig 4: Connecting Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
