On-Vehicle Inspection

1. Check the operation.
   1. Using a speedometer tester, inspect the speedometer for acceptable indication error and check the operation of the odometer.

      Reference: km/h (Canada)

      STANDARD INDICATION REFERENCE



      Standard Indication	Acceptable Range
      20 km/h	18.9 to 22.0 km/h
      40 km/h	37.9 to 41.8 km/h
      60 km/h	57.2 to 62.0 km/h
      80 km/h	76.6 to 82.5 km/h
      100 km/h	96.8 to 102.7 km/h
      120 km/h	117.2 to 123.2 km/h
      140 km/h	137.3 to 144.5km/h
      160 km/h	157.7 to 165.9 km/h
      180 km/h	178.3 to 187.5 km/h

      Reference: mph (U.S.A.)

      STANDARD INDICATION REFERENCE



      Standard Indication	Acceptable Range
      20 mph	19.7 to 22.6 mph
      40 mph	39.8 to 43.2 mph
      60 mph	59.9 to 64.0 mph
      80 mph	79.2 to 85.4 mph
      100 mph	101.8 to 107.0 mph

      NOTE: Do not use worn, underinflated or overinflated tires, as the speedometer reading will be inaccurate.
   2. Check the deflection width of the speed meter indicator.

      Reference: Below 0.5 km/h (0.3 mph)

      If the result is not as specified, the speedometer may have a malfunction.

1. Check the output signal waveform.
   1. Remove the combination meter, but do not disconnect the connector.
   2. Connect an oscilloscope to terminal C11-21 and body ground.
   3. Start the engine.
   4. Check the signal waveform according to the condition(s) in the table below.
      ITEM CONDITION



      Item	Condition
      Tool setting	5 V/DIV, 20 ms/DIV
      Vehicle condition	Driving at approx. 20 km/h (12.4 mph)

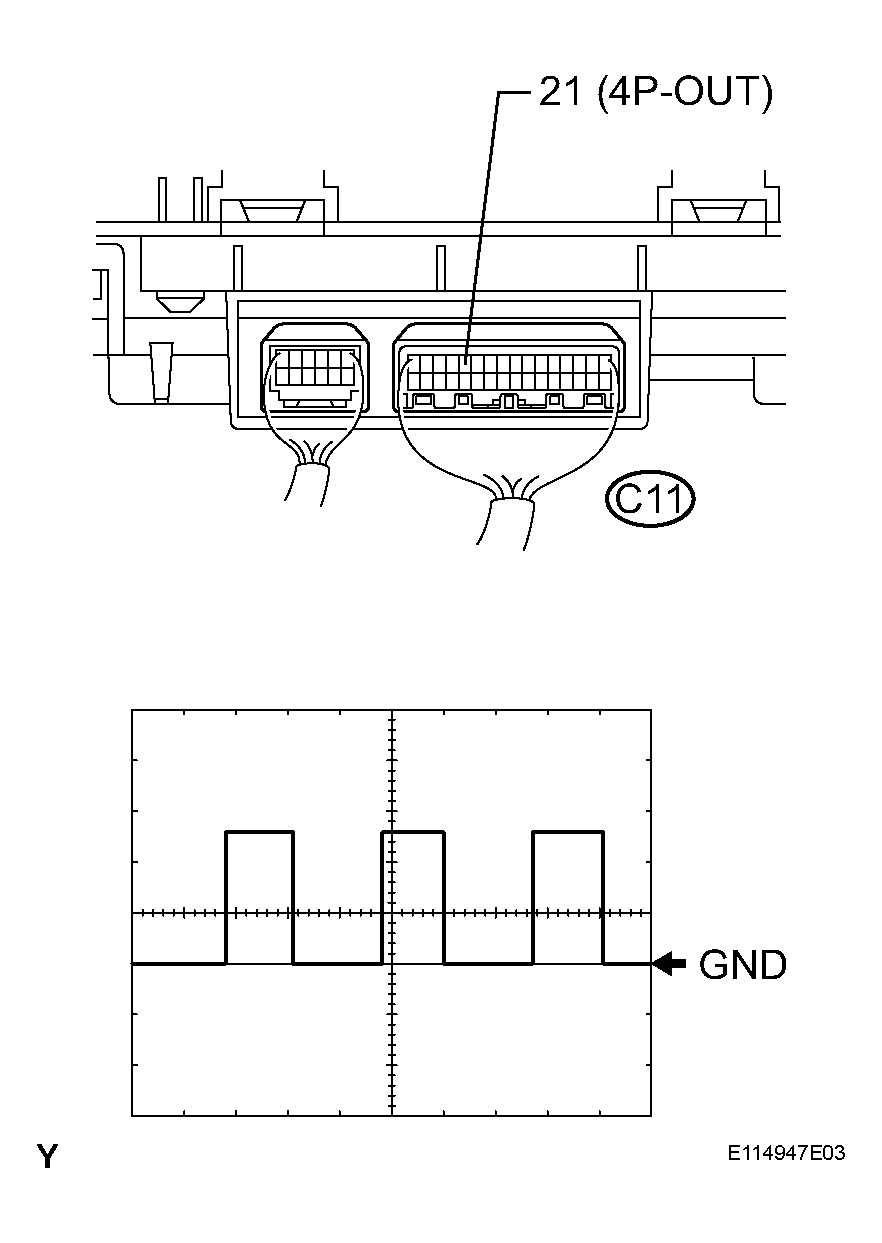

      Fig 1: Connecting Oscilloscope To Terminal C11-21 And Body Ground

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: As shown in the illustration.

      HINT:

      As the vehicle speed increases, the cycle of the signal waveform narrows.

1. Check operation.
   1. Connect the tune-up test tachometer, and start the engine.
      NOTE:

      • Reversing the connection of the tachometer will damage the transistors and the insides of the diodes.
      • When removing or installing the tachometer, be careful not to drop or subject it to heavy shocks.
   2. Compare the result of the test with the standard indication.

      DC 13.5 V, 25°C (77°F)

      STANDARD INDICATION REFERENCE



      Standard Indication (r/min)	Acceptable Range (r/min) Data in ( ) are for reference
      700	630 to 770
      1,000	(900 to 1,100)
      2,000	(1,850 to 2,150)
      3,000	2,850 to 3,150
      4,000	(3,800 to 4,200)
      5,000	4,800 to 5,200
      6,000	(5,750 to 6,250)
      7,000	6,700 to 7,300

1. Disconnect the connector from the sender gauge.
2. Turn the ignition switch ON, then check the position of the receiver gauge needle.

   OK: Needle position is on EMPTY.

3. Connect terminals 2 and 3 on the wire harness side connector of the fuel sender gauge.
4. Turn the ignition switch ON, then check the position of the receiver gauge needle.

   OK: Needle position is on FULL.

   Fig 2: Inspecting Fuel Receiver Gauge Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector from the sender gauge.
2. Turn the ignition switch ON, check that the fuel level needle indicates EMPTY and fuel level warning light comes on.

   OK: Fuel level warning light comes on.

1. Disconnect the connector from the water temperature receiver gauge.
2. Turn the ignition switch ON, and then check the water temperature receiver gauge warning light.

   OK: COLD indicator light comes on.

3. Ground terminal 2 on the wire harness side, then check the water temperature receiver gauge warning light.

   OK: HOT indicator light comes on / blinks.

1. Disconnect the connector from the low oil pressure switch.
2. Turn the ignition switch ON.
3. Ground the terminal of the wire harness side connector, then check the low oil pressure warning light.

   OK: Low oil pressure warning light comes on.

1. Inspect the parking brake warning light.
   1. Disconnect the connector from the parking brake warning switch.
   2. Turn the ignition switch ON.
   3. Ground the terminal of the wire harness side connector, and then check that the parking brake warning light illuminates.

      OK: Parking brake warning light illuminates.

2. Inspect the parking brake warning light.
   1. Disconnect the connector from the brake fluid level warning switch.
   2. Turn the ignition switch ON.
   3. Connect terminal 1 and 2 of the wire harness side connector, and then check that the parking brake warning light illuminates.

      OK: Parking brake warning light illuminates.

1. Remove the reservoir cap and strainer.
2. Disconnect the connector.
3. Measure the resistance between the terminals.

   Standard resistance: Float up (switch off): 10 kΩ or higher

4. Use a siphon, etc., to take fluid out of the reservoir.
5. Measure the resistance between the terminals.

   Standard resistance:

   Float down (switch on): Below 1 Ω

6. Pour the fluid back in the reservoir.
7. Reconnect the connector.

1. Disconnect the connector from the washer level warning switch.
2. Turn the ignition switch ON.
3. Ground the terminal of the wire harness side connector, then check the washer level warning light.

   OK: Washer level warning light comes on.

Indicator condition:

1. Set the liquid crystal display (LCD) to ODO.
2. Turn the ignition switch OFF.
3. Press and hold the reset switch, and turn the ignition switch ON.
4. After turning the ignition switch ON, keep holding the reset switch for at least 5 seconds. The reset procedure is completed.

   HINT:

   • If the ignition switch is turned OFF during the reset procedure:

     LCD: off

     IND: off

   • If the reset switch is released too quickly during the reset procedure:

     LCD: returns to ODO display

     IND: is not reset
